Huawei Mobile WiFi Pro E5770 Review

When we got the Huawei E5730s mobile WLAN router last year, some customers ask when we can get the 4G device like Huawei E5730s. Now we get the new one with Ethernet port, the model number is Huawei E5770. Huawei named it “Huawei Mobile WiFi Pro”. If you know Huawei E5730s, you may know the similar functions of Huawei E5770.

Huawei Mobile WiFi Pro is the upgraded model from Huawei E5730S. It supports 4G networks while E5730 only supports 3G networks. The design of Huawei E5770 looks cool. The wallet design of the Mobile WiFi Pro is fashioned with a leather texture and ornamental plating mid-frame. The E5770 is compact enough to fit in a pocket, and it’s also been fitted with an array of built-in innovations.

Like other Huawei 4G mobile WiFi, there is a 0.96 OLED screen on the top front, which can show the network mode, network strength, SMS, battery status and consumed data. Beside the screen, the Huawei logo is printed. On the top side, there is a cover beside the screen. Open the cover, we can see the USB input and output port. And there is an Ethernet port. The USB input is to charge the Mobile WiFi Pro. And the USB output is to charge other electronics.



Huawei E5770 is designed with protected and hidden ports, and is also built with Ethernet/3G dual link and the flexibility to support WAN/LAN auto redirect – all so you can stay connected without any problems while you travel. The Ethernet port is the key feature of Huawei Mobile WiFi Pro. Through the Ethernet port, Huawei E5770 can finish three functions:

  1. Transfer the internet connection to WiFi
  2. Transfer 4G connection from SIM to WiFi
  3. Transfer 4G connection from SIM to Ethernet connection

What’s more, Huawei E5770 could support peak download speed to 150mbps on 4G LTE networks. The upload speed could also reach 50Mbps. To have better internet connection speed, Huawei E5770 mobile WiFi Pro should soon replace Huawei E5730s. It would be a perfect partner for international travel on 4G.



Another key feature of Huawei mobile WiFi Pro is the battery. The battery has a capacity of 5200mAh, which is much larger than usual smartphones. So the Huawei E5770 can be seen as a mobile power bank for other mobile terminals such as mobile phones, tablets or iPods. It can work effortlessly up to 20 hours straight and standby for over 500 hours.

Like other Huawei E5 Mobile hotspot, Huawei E5770 could support up to 10 wireless devices to access internet. User can insert a micro SD card to 32GB. Mobile WiFi Pro’s big storage means it’s now easier than ever to share files between your devices. It helps you quickly and easily “share” photos, apps with your friends through the same mobile Wi-Fi.



To sum up, Huawei E5770 combines 3 main functions (Mobile hotspot, power bank, Ethernt router) to one. It’s a special and very practical mobile pocket router. If you usually need wireless network outdoor, Huawei Mobile WiFi Pro E5770 would be a perfect partner.





Huawei E3276 and Huawei E398 in Good Price in August

Hello,

We offer special price for Huawei E3276 and E398 4G USB Stock in this month.



Huawei E3276 is a LTE Category 4 USB Stick that can support peak download speed to 150Mbps. It has rotatable USB for 180 degree, and has two connectors for external antennas. Below is the specification for Huawei E3276s-150:

NETWORK BANDS LTE FDD: 800/900/2600/ 1800 /2100
UMTS: 2100/AWS/900/1900
GSM: 850/900/1800/1900
MAX DOWNLOAD SPEED up to 150 Mbps under 20M bandwidth
ANTENNA External Antenna Interface, Receive Diversity
EXTERNAL INTERFACES USB 2.0 High Speed, SIM/USIM card: standard 6-pin SIM card interface, Micro SD Card Slot
DIMENSIONS 92mm x 32mm x 14mm
WEIGHT 30g

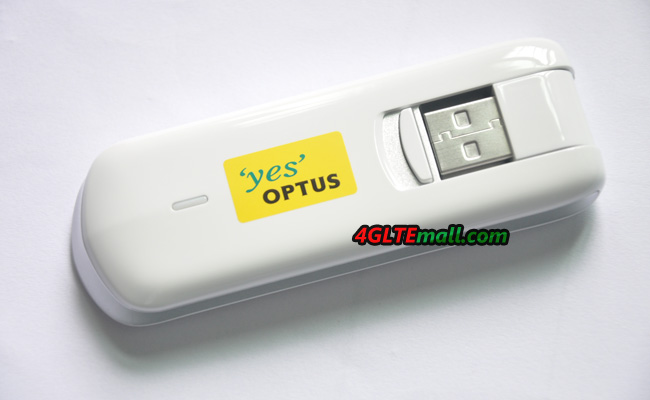

Below are the images for Huawei E3276s-150 pacakge and logo:



Below are the firmware version and Parameters:

——————————————————————————————————————–

Found modem : E3276
Model : Huawei E3276
IMEI : 863781011882850
Serial NR. : A2F5TC92B2200237
Firmware : 21.190.03.00.00
Compile date / time : Aug 16 2012 18:03:06
Hardware ver. : CH1E3276SM
Dashboard version : UTPS23.009.05.03.74_MAC23.009.05.03.74
SIM Lock status : unlocked
Wrong codes entered : 10 (unlock attempts left : 0)

——————————————————————————————————————–

Supported Frequency Bands:

at^syscfgex=?
^SYSCFGEX: (“00″,”01″,”02″,”03″),((2000000400380,”GSM900/GSM1800/WCDMA900/WCDMA2100″),(2a80000,”GSM850/GSM1900/AWS/WCDMA1900″),(3fffffff,”All bands”)),(0-2),(0-4),((800c5,”LTE2100/LTE1800/LTE2600/LTE900/LTE800″),(7fffffffffffffff,”All bands”))
OK



You can buy cheap Huawei E3276 here: http://www.4gltemall.com/huawei-e3276-4g-lte-surfstick.html





Huawei E398 is one of the best seller for LTE Category 3 USB modem. It’s with Qualcomm MDM9200 chipset and support peak download speed to 100mbps and upload speed to 50mbps. Except Huawei E398u-18, all other models has two antenna connectors.



Images for Huawei E398u-15:

Huawei E398 firmware version and parameters:

Found modem : E398
Model : Huawei E398
IMEI : 354217040459218
Serial NR. : 7HA5TC1192200042
Firmware : 11.433.57.00.000
Compile date / time : Aug 14 2012 10:48:07
Hardware ver. : CD2E398M
Dashboard version : UTPS21.005.20.01.260_MAC21.005.20.01.260
Chipset : Qualcomm MDM9200
NAND Flash : HY27SF081G2A
Voice feature : not supported in current firmware
SIM Lock status : unlocked
Wrong codes entered : 10 (unlock attempts left : 0)

===================================================================
AT^SYSCFGEX=?
^SYSCFGEX:(“00″,”03″,”02″,”01″,”99″),((2000000400380,”GSM900/GSM1800/WCDMA900/WCDMA2100″),(280000,”GSM850/GSM1900″),(3fffffff,”All Bands”)),(0-2),(0-4),((c5,”LTE2100/LTE2600/LTE1800/LTE800″),(7fffffffffffffff,”All Bands”))
OK



Buy Cheap Huawei E398 here: http://www.4gltemall.com/huawei-e398-4g-lte-tdd-fdd-100mbps-usb-surfstick.html















Vodafone K5007 4G LTE Stick Review

The Vodafone K5007 could replace the previous generations Vodafone K5005 and K5006 in the near future. But what can the new stick do and when it is available? We have already summarized the key features of the new top-sticks together for you and tested the K5007 in advance.

LTE features and characteristics of Vodafone K5007
Manufacturer and factory model number Huawei E3276
Download rate Up to 150 MBit/s
Upload rate Up to 50 MBit/s
Supported LTE bands LTE800, LTE1800, LTE 2600
Backward compatible with: DC-HSPA+, UMTS 900/2100MHzGSM Frequency (850, 900, 1800 und 1900 MHz)
MIMO Support: MIMO 2×2
Connector for external antenna yes; 2 antenna sockets, type CRC-9 available(Buy Vodafone K5007 Antenna)
Chipset: HiSilicon Hi6920
LTE Category: LTE Modem to Category 4
Others
Dimensions 92 mm x 32 mm x 14 mm; 30 Gramm
USB-Standard USB 2.0
Memory card expansion Yes; MicroSD up to 32GB
Compatible Operating Systems Windows XP, Windows Vista, Windows 7 & 8, Mac OS (ab 10.4)
Information material not yet available
Availability On www.4gltemall.com





Vodafone K5007 is the first Vodafone surfstick that supports download speeds of up to 150 megabits per second. For this, the surf stick uses the LTE category 4 technologies, which was introduced by Vodafone in the summer of 2013. In some cities where there is no LTE network available at the current location, users could resort to conventional 3G network (or lower). Per UMTS or HSPA+, data rates of up to 42.2 Mbit/s are then still possible.

On the front of the white K5007, there is a logo of the provider Vodafone and also the software has been optimized for use with Vodafone sim cards.  After entering the SIM PIN, no additional configuration steps are necessary, since the relevant access data are already stored. The connection software is compatible with all major operating systems such as Windows XP, Windows 7, and 8 and Mac OS X. Important parameters such as the data usage, or the online time can be read at a glance in the software. The advanced configuration allows to manually selecting a network and the provider via the Setup menu.



The USB port of the K5007 provides a practical swivel joint, after plug to laptop, the modem can save much space, which is a clear advantage over many other LTE surf sticks. Through the support of LTE Category 4, Speeds of up to 150 Mbit/s for downstream and upload speed up to 50 Mbit/s are possible in the LTE network. Under the providers’ network, user can get only appropriate data rates. UMTS download up to 42.2 Mbit/s and upload 5.76 Mb/s are possible, further also the 2G network (GPRS / EDGE) is supported. However, the Vodafone network with upgraded to LTE Category 4 is available only in a few cities. It would take a few more months to cover all the cities.





Connections



On the side of the K5007, there are two connections for an external antenna. There is also an expansion slot for MicroSD type memory cards, using which one can use the device as a storage medium. The memory card may be up to 32 gigabytes in size, so that it is detected by the modem.



Conclusion



The K5007 stick is with a modem for extremely fast data connections, so Vodafone has a high quality stick once again in the pipeline. It is now available in the shop www.4gltemall.com. As alternatives, you can consider the technically identical offer, for example, Huawei E3276 or Vodafone K5150, or to. Both devices support LTE with up to 150 megabits per second like Vodafone K5007.



Vodafone K5150 4G LTE Cat4 USB Stick Review

The Vodafone K5150 LTE-Stick is available since August 2013, and allows for download speeds up to 150 megabits per second over the LTE mobile network. For this, the surf stick uses the Category 4 LTE technology, which was introduced LTE2600 in Vodafone network at the same time with the modem in the summer of 2013. You will learn more details on the new high-end Vodafone stick in the following overview.

LTE features and characteristics of  Vodafone K5150
Manufacturer and factory model Huawei E3276
Download rate to 150 Mbit/s
Upload rate to 50 Mbit/s
Supported LTE bands LTE800, LTE1800, LTE 2600
Backward compatible with: DC-HSPA+, UMTS, GSM frequencies (850, 900, 1800 and 1900 MHz)
MIMO Support: MIMO 2×2
Connector for external antenna yes; 2 antenna sockets, type TS-9 available (Buy Vodafone K5150 Antenna)
Chipset: HiSilicon Balong 710
LTE category: LTE modem, the category 4 (CAT4)
Others
Dimensions 33.4 x 95.5 x 14.0 mm (35 grams)
USB standard USB 2.0
Memory card expansion yes; MicroSD up to 32 GB
Compatible Operating Systems Windows XP, Windows Vista, Windows 7 & 8, Mac OS (10.4 or higher)

The design of the K5150 is in red and white combination of the Vodafone colors, so both the hardware and software are branded for Vodafone. A sim or netlock does not exist, so there is no problem for operation with cards from other operators compatible.



Technical Specifications

The USB port on the Vodafone K5150 is protected by a red plastic cap and cannot be folded or recessed into the modem. So if there is limited space around your PC, it would be sometimes quite annoying to plug the modem. The brother model Vodafone K5007 features a rotatable USB, which is more user-friendly. Technically, the K5150 is part of the upper class: LTE with up to 150 Mbit/s downstream and 50 Mbit/s in upload, provided that the mobile network and the tariff also allow such high speeds.



The usable frequency ranges of 800, 1800, 2100 and 2600 megahertz cover all previously used in Germany LTE frequencies. And the modem is also usable abroad. Of course, 2G GPRS/EDGE and 3G UMTS are supported, so you can even use the internet where there is no LTE network available. In the UMTS network, data accelerator DC-HSPA+ is used to produce up to 42.2 Mbit/s download and to 5.76 Mbit/s upload. The usable frequency bands are limited here to 900/2100 MHz.

Connections and extensions



On the side of the Vodafone K5150, Two ports for an external antenna are available, and there is a slot for MicroSD type memory cards, using which one can use the modem as a storage medium. Up to 32 GB can be upgraded. The software supports all major operating systems like Windows XP, Windows 7, and 8 as well as Mac OS X and provides a good overview of the important information such as the data usage and the reception strength.



Availability

The stick is available from Vodafone Germany. There is unlocked Vodafone K5150 available on 4gltemall.com without any contract. Without contract, users can use K5150 with almost all the 4G operators in Europe. It’s a good device to take when you travel around. The Vodafone K5007 stick, which are similar to the technical data here, but additionally feature a swiveling USB port.



Huawei E3272 4G USB Stick Review

After Huawei E3276, Huawei offers a new model called E3272 for its LTE Stick series. Of course, the model supports LTE Category 4 (up to 150 Mbps) and this is the key feature for this new model. We show more details of E3272 below and reveal whether the acquisition of the mobile travel companion is worthy.

LTE features and characteristics of Huawei E3272
Manufacturer and model number Huawei E3272
Download rate Up to 150 MBit/s
Upload rate Up to 50 MBit/s
Supported LTE bands LTE800; LTE900; LTE1800; LTE2100; LTE 2600
( Band 1/3/7/8/20)
Backward compatible with: DC-HSPA+, UMTS, GSM-Frequency (850, 900, 1800 and 1900 MHz)
MIMO Support: MIMO 2×2
Connector for external antenna yes; 2 antenna connectors type CRC-9 available
LTE Category: LTE Modem to Category 4 (CAT4)
Chipset HiSilicon Balong 710 (V7R1)
Others
Dimensions (LxWxH) 93.3 mm x 30 mm x 13,3 mm; 35 Gramm
USB-Standard USB 2.0
Memory card expansion yes; With 32 GB MicroSD
Compatible Operating Systems Windows XP, Windows Vista, Windows 7+8, Mac OS (above 10.4)





Huawei unveiled the device for more than one year; it is easy to find shop online for Huawei E3272. Now it’s already available for many European operators.





From the appearance, we can see huawei E3272 is not similar to E3276, which has a rotatable USB, while E3272 is a compact USB. Users should not be blinded by the lower model number after the “E”. For Huawei means, confusingly, higher is not always new. User might think that the technology department rolls this out for the marketing department.

The most important is that we can benefit from Huawei sticks. Huawei E3272 supports the frequencies 800, 900, 1800, 2100 and 2600 MHz – hence the E3272 could work with all major providers in Europe areas. With unlocked Huawei E3272, user can travel to Middle East and Asia. As already indicated, the LTE modem is compatible with LTE Category 4, which can be achieved download speeds of up to 150 Mbps and upload speed up to 50 Mbps. In addition, the Huawei E3272 is backward with all relevant previous mobile radio standards (3G/2G). If located not at LTE coverage area, your device automatically switches to the next best technology, such as UMTS or HSDPA.



A key difference for E3272 and E3276 is the built-chipset. Here Huawei E3272 relies on a HiSilicon Balong 710 (V7R1). Also new is a “HiLink” mentioned technology, which we introduce the following short.







“HiLink” hides an innovation from Huawei, which aims to accelerate the start-up and thus to connect to the Internet enormously. After plugging in, as promised by the manufacturer, Configuration shall be unnecessary and it is online only 15 seconds. 15 seconds is for driver auto installation, setup, and connection! This is a small revolution in fact. Our editorial team has already taken several tests with various sticks, such as ZTE, in the past. Some devices need only  install the software for up to 15 minutes, followed by complex configuration and excruciatingly long load times if necessary. Now it is finally turned to the Web Interface. This means installing extra software is no longer necessary – the operation easily handled via the browser, so as the Huawei E3272. However, “HiLink” is not a novelty from the E3272. Various predecessors already had the feature.





One criticism, however, is still there. While many other models of Huawei have a swiveling USB port, which proved to be user-friendly, but Huawei E3272 is unfortunately missing this feature. When used in conjunction with a laptop, user has to connect the E3272 via USB extension cable.





The E3272 is a rock solid LTE stick, which is technically on the amount of time. Those who does not need a Wi-Fi hotspot, can safely access via E3272. The relatively low price convinced. Significant innovations and improvements are attractive.



How to Update Huawei E398 Firmware

Just like mobile phone, if a 4G modem is used for long time, there will be some errors such sudden connection terminated, no signal, don’t read SIM card, no response when plug in etc.. During this time, it’s necessary to update the firmware of the 4G modem and let it work well. This process is like the re-install the operation system in PC. After update, the 4G modem will connect smoothly, and quickly. In some case, the connection speed may increase obviously with same SIM card.



Huawei E398 is one of the best 4G USB modem that was used by thousands of customers over the world. Some users may want to update the firmware of their E398 but can’t find the driver or don’t know the user guide to update. Today, we will give the guide how to update the firmware of Huawei E398, hope it would help our customer to have better surfing experience on 4G networks:

1.  Plug the Huawei E398 to your PC

2. Install the old driver that is already with the E398

3. Download the update driver for E398 here: http://speedy.sh/jGaVd/E398-Update-11.335.31.00.000.B757.rar

4. Run the driver and follow the steps to update the firmware

5. On the third step, there is flash code required to proceed. On the website http://www.modemunlock.com/huawei.php  you can enter the IMEI number of your E398 and let it calculate, you will get the flash code

6. Enter the flash code to process the update. After finished, your E398 is with new firmware now



What we have to mention is that on the step 5, you will also get the unlock code of your Huawei E398, if you want to unlock your E398, you can do it after firmware update. The website calculate your E398 unlock code, you note it and plug a SIM card that is different from the locked network, it will require unlock code to let them work together, now you can enter the noted unlocked code and get unlocked Huawei E398.



But if your E398 is already unlocked, it’s unnecessary to do the unlocking again. Any questions, welcome to leave your message on the blog.

Vodafone K5006Z VS Vodafone K5005

We had noted that Vodafone K5006Z is already available on the market with tariff for users, somebody may have some memory about the previous model Vodafone K5005. Yes, you are right, they are both LTE Stick for Vodafone 4G networks. But if you want to buy a LTE Stick for Vodafone SIM card, which one to buy? What’s the difference between them? Which one is better? To ask these questions, it proves you are a serious buyer. Many people just buy the 4G sticks with the contract without the corresponding concern. But if you want to buy unlocked LTE Stick, you may concern which one you can benefit more.

In this article, we will see what the difference between the two models is and which one is better. Vodafone K5006Z is available later than K5005, but they are both customized by Vodafone in red and white appearance. Below is the table listing the specifications of Vodafone K5006Z and Vodafone K5005:



Model Number

　Vodafone K5006z

Vodafone K5005
SIM Lock Status

Unlocked, SIM Card Free

Unlocked, SIM Card Free
Manufacturer

ZTE

Huawei
Form type

4G Internet Stick/4G LTE Stick

4G Internet Stick/4G LTE Stick
Chipset/platform

　Qualcomm MDM9200

　Qualcomm MDM9200
Category

LTE Category 3 (3GPP Release 8) USB Modem

TE Category 3 (3GPP Release 8) USB Modem

Network Bands
4G/LTE Frequency Bands Vodafone K5006Z: Band 3/7/20 (800/1800/2600MHz) Vodafone K5005: Band 3/7/20 (800/1800/2600MHz)
3G UMTS/WCDMA Bands UMTS 900/1900/2100Mhz UMTS 900/1900/2100Mhz
2G GPRS/GSM/EDGE GSM 850/900/1800/1900 MHz GSM 850/900/1800/1900 MHz

Data Rate Speed
4G/LTE FDD link Speed Downstream: 100Mbit/s Upstream: 50Mbit/s
4G/TD-LTE link Speed Downstream: N/A Downstream: N/A
3G HSDPA/HSUPA/HSPA+/DC-HSPA+ Link Speed Downstream: 42Mbit/s Downstream: 42Mbit/s

Other Features
MIMO Support YES YES
WiFi Support NO NO
Maximum Users Supported 1 User 1 User
SD Card Slot YES, SD card up to 32GB YES, SD card up to 32GB
USB Type 2.0 2.0
External Antenna Connector 2 (TS-9) 2 (TS-9)
Dimensions 90 x 27 x 18mm 90 x 25 x 15mm
Weight 40g 40g
OS Supported Windows/Linux/Mac OS Windows/Linux/Mac OS



From the table above, we can see that the main difference between the Vodafone K5006 and K5005 is the manufacturer. Vodafone K5006 is manufactured by ZTE, so it’s also called Vodafone K5006Z; Vodafone K5005 is from Huawei. The second difference is dimension, the size of the 4G modems are similar. We have to mention that both of them are with rotatable USB connector, which will save much space for users.

So we can conclude that the two modems are very similar in function and performance based on the same chipset. If you prefer to Huawei or ZTE Brand, you can choose the modem on their brands.

Huawei E3276 LTE CAT4 USB Stick

The world’s best selling LTE Stick is the Huawei E398. The Huawei E398 was known for his absolutely outstanding LTE reception. Now there is a newer model Huawei E3276 available which also has good reputation. The Huawei E3276 LTE stick meets the LTE Category 4 specification and is backward compatible with LTE Category 3. In some European countries, the LTE category 3 and 4 ( LTE plus) are in use now. And the customized Huawei E3276 is already available for some ISP, such as Vodafone, Telekom.

Huawei E3276 Technical Specifications:



* Integrated modem HiSilicon with the new chipset Hi9620

* supports 4G LTE800/LTE900/LTE1800/LTE2100/LTE2600 megahertz

* Downstream up to 150 Mbit/s, with LTE Category 4

* Upstream up to 50 Mbit/s, with LTE Category 4

* Backwards compatibility: supports 3G UMTS, DC-HSPA+ at up to 43.2 Mbit/s

* Backwards compatibility: supports 2G GSM and EDGE 850, 900, 1800 and 1900 MHz

* very high connection quality

* USB connector can be swiveled and locked in the housing

* Slot for MicroSD memory cards with max. 32 MB

* SIM card slot in standard size, microSIM and Nanosim need a SIM adapter

* Built-in antenna

* Two connections CRC-9 for external antennas with  2×2 MIMO Support

* Software Huawei Dashboard

* LED for status display connection type

* Compatible Operating Systems: Windows XP / Vista / W7, Linux , Mac OS

* USB 2.0

* Dimensions: 99 x 26 x 12.5 mm



Some of the Huawei E3276 variants, such as E3276s-920, are with Hilink system, but what is a HiLink LTE Stick?



A HiLink LTE stick starts the Internet connection within seconds after plugging in the USB connector. This is possible because there is no software installed on the PC.



How to use Huawei E3276



The use of Huawei E3276 LTE sticks is very straightforward. Insert SIM card and then connect the Huawei E3276 with a USB port on the notebook. The E3276 software drivers and the Huawei dashboard software are installed automatically. Then enter the PIN and APN connection settings and finished the LTE stick configuration.



Connect an external antenna to Huawei E3276 LTE stick



The Huawei E3276 works just as well if one connects an LTE external antenna. We can recommend the LTE MIMO antenna. The LTE signal strength could be greatly improved. With the high DBi, the antenna could help user have better connection speed. You can check details here: http://www.4gltemall.com/4g-antenna-two-crc-9-connector.html



Conclusion: Huawei E3276

The Huawei E3276 is certainly one of the best LTE sticks that are currently available. And we could not detect any weaknesses till now. Vodafone offers the Huawei E3276 under the name Vodafone K5007 and Telekom under the name Telekom Speed Stick III. They are all reliable LTE 4G Stick. 4gltemall.com are providing the unlocked Huawei E3276, it can work with both Vodafone and Telekom 4G LTE networks, and other LTE networks in Europe. Most of them are using the Huawei E3276s-150, but some are using Huawei E3276s-151. We can see from the images that France ISP Orange is using Huawei E3276s-151.



Vodafone K5150 4G Cat4 USB Stick

Since Vodafone had introduced the LTE-A technology, there must be wireless terminals to support the new technology. The new Vodafone K5150 Cat4 Surfstick is one of the LTE terminals. Vodafone K5150 can fully exploit its strengths in the new Vodafone category 4 networks. The Vodafone Surf Stick is a 4G LTE Cat4 150 Mbit/s USB key with the latest technology. The official name is Vodafone Mobile Broadband USB Stick K5150 or K5150H (H stands for Huawei).



Following the classic design, Vodafone K5150 USB Stick is in red and white color. The body of K5150 is looks like a bottle which is full of good wine. The K5150 is with hilink system, no installation is needed after it’s pluged to PC. Vodafone K5150 would automatically connect to wireless network through the SIM card. Vodafone K5150 is the ideal stick for people who travel a lot around the world.



Specifications of Vodafone K5150 / K5150H:



* Manufacturer: Huawei

* Category 4 LTE modem with HiSilicon Balong 710 / chip Hi6920

* 4G Network: Supported LTE FDD frequencies 800/1800/2100/2600 MHz

* Maximum download up to 150 Mbit/s

* Maximum upload up to 50 Mbit/s

* 3G network: UMTS 900/2100MHz, Backwards compatible to 3G and 2G

* Maximum Download with DC-HSPA+ 42 Mbit/s

* Maximum upload with DC-HSPA+ 5.76 Mbit/s

* Supported GSM bands 850/900 /1800/ 1900 MHz

* Integrated LTE antenna, 2x TS-9 sockets for connection of LTE external antennas(Buy Vodafone K5150 Antenna)

* MicroSD memory card slot for cards up to 32 GB

* USB 2.0 High Speed connection

* Dimensions: 92mm x 32mm x 14mm

* Supported operating systems:

– Microsoft ® Windows 8, Windows 7 ( SP1 ), Windows Vista ™ (SP2 ), Windows XP ( SP3)

– Apple Mac Mac OS X 10.5 (Intel), 10.6, 10.7 or 10.8

– Linux Ubuntu 11.10/10.10/10.04

– openSUSE 11.4 / 11.3, Fedora 16/14 , Debian 6.0/5.0 , Mandriva 2010.2 , Red Flag 7.0.

How to use the Vodafone K5150 / K5150H 4G LTE Stick:



1. First, pull the cover of the surf sticks and insert the SIM card

2. Important: If you have an older version of the Vodafone Mobile Broadband software onto your computer, then this software must be uninstalled. Then the computer must be rebooted.

3. The Vodafone Surf Stick plugs into the USB port of the computer. The VMB software will now install automatically. The VMB software starts automatically after installation. If a PIN is required, a window appears where you can enter it.

4. The LED of the Surfstick change from flashing to steady lighting. The Internet connection has been made.



Lighting of the LED indicates the status of the wireless connection:

* LED flashes green: A GPRS network has been found, an Internet connection can be established

* LED is green: The Surf Stick is connected via GPRS to the Internet.

* LED flashes blue: A 3G network is found; an Internet connection can be established

* Lights up in blue: The Surf Stick is connected to the 3G network.

* LED lights light blue: The surf stick is connected to the Internet via 3G Broadband.

* LED is purple: A 4G LTE network has been found. The Vodafone dashboard software reports when connected to the 4G LTE network is present.



Conclusion:



With the Vodafone K5150 USB Stick you surf Vodafone 4G Cat4 network in the multiple cities with up to 150 Mbit/s Germany. Here now we can offer Unlocked Vodafone K5150, which would work with in almost all the European and Asia countries.

Vodafone K5150 LTE stick is also backwards compatible with 3G network and 2G network.

Huawei E3272 – New LTE Category 4 USB Stick

USB surfsticks are increasingly displaced by mobile hotspots with battery, but Huawei brings an LTE stick E3272 again recently on the market. The Huawei E3272 is held in the “stick form factor”, the USB port is so rigid and not like the previous model Huawei E3276 swiveling (“rotator form factor”). The maximum speed is 150 Mbit/s downlink and 50 Mbit/s in the uplink, which corresponds to LTE category 4 like previous LTE surf sticks Huawei E3272. With dimensions of 93.3 mm x 30 mm x 13.3 mm and weighing 35 grams, Huawei E3272 is much easier to take in pocket or bag.


Somebody say Huawei E3272 is on the HiLink function, which allows the operation of the surfsticks with no software. When you first plugged into the PC, only some drivers are installed, we found the mobile partner is still available in this stick. In most cased, no more setup is needed before connection, Huawei promises a connection in just a few seconds after plugging in the modem.

Good technical equipment
Like most other data devices in use, Huawei E3272 is also with a HiSilicon modem chipset. This allows not only LTE Category 4, UMTS with DC-HSPA+ (up to 42.2 Mbit/s in the downlink), but also GSM & EDGE data transmission. The supported frequency bands are common deployed worldwide, so we are glad to note that Huawei E3272 can use worldwide:

  • LTE: 800/900/1800/2100/2600 MHz
  • UMTS: 900/2100 MHz
  • GSM: 850/900/1800/1900 MHz

The USB port is protected by a cap, unfortunately this is not secured with a ribbon on the stick as you would know from the Vodafone K5150 LTE Stick. Two connectors for external antennas (2 × 2 MIMO) are located on the sides of E3272 body, as well as a slot for MicroSD memory cards is available, so you can use the Huawei E3272 LTE stick as a storage media. The system requirements are relatively low, so you can E3272 with Windows system from XP (Service Pack 3), Windows Vista (Service Pack 1), to Windows 7 or Windows 8, alternatively you can of course also use with MAC OS, here must be at least OS X to be installed in version 10.6 or higher.

Availability
The Huawei E3272 LTE stick is available in stores 4gltemall.com now, without a contract. With a slim body and good functions, we recommend Huawei E3272 if you want to enjoy the LTE Download link speed to 150Mbps.
