LTE, LTE-A and LTE-A Pro Evolution

LTE is a standard for wireless communication and LTE Advanced / LTE Advanced Pro (Cat 6 to Cat 19) is a high-speed version of LTE, sometimes marketed as LTE+, 4G+, 4GX,4.5G or 4G LTE Ultra. LTE support varies from country to country, and the speed may vary depending on user location and how fast they’re traveling.



LTE (Cat 1~5)

  • LTE has been introduced in 2012 in order to provide high data rate mobile broadband connection.
  • It has been introduced to provide 10 times faster data rate compared to 3G.
  • LTE provides 100 Mbps.
  • LTE has been specified in 3GPP Rel.8.
  • LTE supports carrier bandwidth of 20 MHz.

LTE Advanced (Cat 6~16)

  • LTE Advanced is an enhancement to LTE with data rate increase to the factor of 10.
  • It supports carrier aggregation and higher order MIMO techniques.
  • It supports the data rate of 1 Gbps in downlink (From eNB to UE) and 500 Mbps in uplink direction (From UE to eNB).

LTE Advanced Pro (Cat 17~19)

  • It is enhanced version of LTE Advanced to support higher data rate beyond 3 Gbps.
  • It supports increased Bandwidth, increased efficiency and improved latency.
  • It makes use of both licensed (400 MHz to 3.8 GHz) and unlicensed (5GHz) spectrum to support up to 32 carriers of 20MHz each.
  • It is backward compatible with existing LTE and LTE Advanced devices.
  • It makes use of spectrum more efficiently by increasing number of antenna paths as well as multi beam approach. It serves single radio cell with 16 to 64 antenna paths.
  • It grows network capacity to about 200% without any additional spectrum or base stations.
  • Increased battery life about 10 times than LTE.

Five Best Buy WiFi Router in 2018

Since information is more and more important in our daily lives, most people can’t live without the internet. So to have a WiFi router would be very important for internet access. Now that the LTE technologies evolve to LTE advanced Pro, we will recommend five best buy WiFi router in 2018. They are with the latest LTE technologies and can provide fast internet speed for users.



We recommend the five best buy WiFi routers mainly based on the below the concerns:

  1. Network frequency bands compatibility: the WiFi hotspot best buy must be compatible with the popular LTE frequency bands for global use. The more frequency bands supported by the WiFi router, the more network carriers the WiFi router could work with.
  2. Fast Internet connection speeds: the best buy MiFi must have the ability to provide fast wireless internet speed at last up to download speed up to 300mbps with carrier aggregation technology.
  3. Large battery pack for long-time use: the best buy mobile hotspot must have a large battery, which would provide long working time, it would be much better if the LTE WiFi routers could charge other devices such as smartphones, Pads or other terminals.
  4. Easy management for settings and data consumption: the WiFi router best buy must provide a user-friendly experience for networking settings and data consumption.
  5. Better to have Ethernet for WAN or LAN: sometimes, when the user travels to other countries and 4G SIM is not available, or the terminal doesn’t have the ability to connect via WiFi, the Ethernet port may be a good alternative for internet connection.



Below are the five best buy WiFi routers to recommend for 2018:



Model Huawei E5788u-96a Specs Netgear Nighthawk M1 Specs Huawei E5885Ls-93a Specs Netgear Aircard 810s Specs AT&T Unite Explore 815S Specs
Product type 4G Mobile WiFi 4G Mobile Hotspot with Ethernet port 4G Mobile Hotspot with Ethernet port 4G Mobile WiFi 4G Mobile WiFi
Product Image
Category LTE Cat.16 LTE Cat.16 LTE Cat.6 LTE Cat.11 LTE Cat.9
Chipset Qualcomm MDM9250 Qualcomm MDM9x50 Hisilicon LTE Cat6 chipset Qualcomm Snapdragon X12 Qualcomm MDM9240
Data rates DL 1Gbps/UL 100Mbps DL 1Gbps/UL 100Mbps DL 300Mbps/UL 50Mbps DL 600Mbps/UL 100Mbps DL 450Mbps/UL 100Mbps
Supported 4G LTE frequency bands * FDD-LTE: Band 1/2/3/4/5/7/8/19/20/28
* TDD-LTE: Band 38/40/41/42		 — Telstra Nighthawk: Band 1/3/7/8/28
— AT&T Nighthawk:  Band 1/2/3/4/5/7/12/29/30/66		 * FDD-LTE Band 1/2/3/4/5/7/8/19/20/28
* TDD-LTE: Band 38/40/41/42		 B1, B3, B7, B8, B28 B1, B2, B3, B4, B5, B7, B12, B17, B29, B30
WLAN 802.11a/b/g/n/ac, dual-band 2.4GHz & 5GHz 802.11a/b/g/n/ac, dual-band 2.4GHz & 5GHz 802.11a/b/g/n/ac, dual-band 2.4GHz & 5GHz 802.11a/b/g/n/ac, dual-band 2.4GHz & 5GHz 802.11a/b/g/n/ac, dual-band 2.4GHz & 5GHz
Max support users 32 users 20 users 32 users 15 users 15 users
MIMO 4 X 4 MIMO 4 X 4 MIMO 2 X 2 MIMO 2 x 2 MIMO 2 x 2 MIMO
Connector for external antenna No connector Two, TS-9 jacks No connector Two, TS-9 jacks Two, TS-9 jacks
Buy Antenna N/A Netgear Nighthawk M1 Antenna N/A Aircard 810s External Antenna AT&T Unite Explore External Antenna
App management Huawei Hilink APP Netgear Aircard APP Huawei Hilink APP 3.0 Netgear Aircard APP Netgear Aircard APP
SIM type Micro SIM Micro SIM Micro SIM Micro SIM Micro SIM
Battery Non-removable, 3000mAh Removable, 5040 mAh Non-removable, 6400mAh Removable, 2930 mAh Removable, 4340 mAh
Dimensions 129 x 65 x 13.5mm 105.5 x 105.5 x 20.35 mm  112.00 x 69.20 x 23.00mm 112 x 68.6 x 15.45mm 112 x 68.6 x 15.45mm
Ethernet Port No On port for LAN port(RJ-45) On port for WAN/LAN port(RJ-45) No No
Datasheet download Huawei E5788 Datasheet Netgear Nighthawk M1 Datasheet Huawei E5885 Datasheet Netgear AC810S Datasheet AT&T Unite Explore 815s Datasheet
User Manual Huawei E5788 Manual Netgear Nighthawk M1 Manual Huawei E5885 Manual Telstra 4GX Advanced III Manual AT&T Unite Explore Manual
Other features 4CC CA 4 band CA, JumpBoost Power bank, CA, NFC 3 band CA 3 band CA
Firmware download Huawei E5788 Firmware Nighthawk M1 Firmware Huawei E5885 Firmware Aircard 810s Firmware ATT Unite Explore Firmware
Drivers Huawei E5788 Driver Nighthawk M1 Driver Huawei E5885 driver Aircard 810s driver ATT Unite Explore drivers
Reviews Huawei E5788 Review Netgear Nighthawk M1 AT&T Review Huawei E5885 Review Netgear Aircard 810s review AT&T unite explore review
Price 499.00USD 459.00USD 279.00USD 249.00USD 349.00USD
To Buy Buy Huawei E5788u-96a Netgear Nighthawk M1 Unlocked Buy Huawei E5885Ls-93a Buy Netgear AC810S Buy ATT Unite Explore Unlocked Buy

These WiFi router best buy are recommended for 2018. The Huawei E5788u-96a and Netgear Nighthawk M1 are the most advanced WiFi router for a pocket. The Nighthawk M1 has one Ethernet port for LAN. The Netgear AirCard 815S is in the rugged design for outdoor activities. Huawei E5885Ls-93a has an Ethernet port and has the large battery to charge other devices. For more details of each WiFi router, click the reviews for them. They are all best buy MiFi for 2018.



AT&T Unite Explore AC815S VS Huawei E5787

LTE advanced is becoming the mainstream of the LTE evolvement. More and more people are considering upgrading their LTE gadgets to LTE advanced or LTE-A Pro. Huawei E5787 and Netgear Aircard 815s are two hot LTE-A mobile hotspots. If you want to buy one from the two 4G LTE router, you may ask: what’s the difference between Huawei E5787 and Netgear Aircard 815s? Which one is better to use? We will compare the Huawei E5787 with Netgear 815s from the appearance, specs and other features to find the answers for you.

Aircard 815S VS Huawei E5787 Appearance and interfaces

Huawei E5787 is the first Huawei mobile WiFi with a touchscreen, which is very useful to operate the settings for users. There is the only logo under the display. The home button is on the top edge side while the USB port and connectors for the external antenna are located at the opposite side. The antenna connectors are located together and covered by a small cap. The back cover could be opened and the battery could be removed. There is Micro SIM slot under the battery, but no Micro SD card slot.

The Netgear Aircard 815s is now only available for US network provider AT&T and got a new name of AT&T Unite Explore. The highlight feature is the Unite Explore is of rugged design which is water and dust proof for outdoor use. There is also a touchscreen on the front to show the internet connection status. The AT&T logo is on the left side of the screen while the Home and back buttons are on the right side. Like Huawei E5787, the home button of ATT Unite Explore is also on the top edge while the USB port and antenna connectors are on the opposite side. The connector of both routers is the TS-9 type. The difference is the Aircard 815s antenna connectors are located at the two sides of the USB port. The back cover and battery could also be removed. And the Micro SIM card slot is available.

Huawei E5787 VS Netgear AC815S Specifications

From the appearance and interfaces, we can see the AT&T Unite Explore 815S and Huawei E5787 are very similar. Only the rugged design of Unite Explore are special and can be cleared distinguished from other hotspots. Now let’s have a look at the Huawei E5787 specs and AT&T Unite Explore specs for more comparison:



Model AT&T Unite Explore 815S Huawei E5787
Product type LTE Mobile Hotspot LTE Mobile Hotspot
Category LTE Cat.9 LTE Cat.6
Chipset Qualcomm MDM9240  HiSilicon LTE Cat6 Chipset (Cortex A9 Processor)
Data rates DL 450Mbps/UL 100Mbps DL 300Mbps/UL 50Mbps
Supported 4G LTE frequency bands B1, B2, B3, B4, B5, B7, B12, B17, B29, B30 * Huawei E5787s-33a: Band 1/3/5/7/8/20
* Huawei E5787Ph-67a: Band 1/3/5/7/8/28
WLAN 802.11a/b/g/n/ac, dual-band 2.4GHz & 5GHz 802.11a/b/g/n/ac, dual-band 2.4GHz & 5GHz
Max support users 15 users 10 users
MIMO 2 x 2 MIMO 2 X 2 MIMO
Connector for external antenna Two, TS-9 jacks Two, TS-9 jacks
Buy Antenna AT&T Unite Explore External Antenna Huawei E5787 external Antenna
App management Netgear Aircard APP Huawei Hilink APP
SIM type Micro SIM Micro SIM
Battery 4340 mAh 3000mAh
Dimensions 112 x 68.6 x 15.45mm 109.00 x 58.00 x 7.50mm
Ethernet Port No No
Datasheet download AT&T Unite Explore 815s Datasheet Huawei E5787 Datasheet
User Manual AT&T Unite Explore Manual Huawei E5787 Manual
Other features 3 band CA 2 band CA
Reviews AT&T unite explore review Huawei E5787 Review
Price 349.00USD 269.00USD

Summary

From the specs table, we can the ATT Unite Explore is more advanced than Huawei E5787. With Qualcomm MDM9240 chipset and LTE Cat.9, AT&T Unite Explore could achieve download speed up to 450Mbps and upload speed to 50Mbps. The Huawei E5787 could support peak speed to 300Mbps with the support of LTE Category 6. The Netgear Aircard 815s supports more LTE frequency bands, but mainly for American areas. But it can also work in Europe, Africa, Middle East and Asia on the band 3 and band 7. The Huawei E5787 two variant models cover the LTE bands mainly for Australia, Asia, and Europe. So the unlocked AT&T Unite Explore could be used more widely than Huawei E5787 unlocked.

Regarding the WLAN features, the AT&T Unite Explore supports up to 15 users while Huawei E5787 supports 10 WiFi users. The AT&T 815s could support 3 band carrier aggregations while E5787 supports 2 band carrier aggregations. And Aircard 815s has a larger battery of 4340mAh while Huawei E5787 is configured with 3000mAh battery. The Unite Explore AC815s can charge other devices like a mobile power bank but Huawei E5787 doesn’t have this function. In summary, the AT&T Unite Explore AC815s is more advanced and better than Huawei E5787. However, the Aircard 815s price is higher than Huawei E5787 price. If you want an advanced LTE hotspot and don’t care about the price, the unlocked AT&T Unite Explore would be the right one. But if you need a budget one, the Huawei E5787 should be considered.



Netgear Aircard 810s vs Huawei E5885Ls-93a

More and more new Huawei LTE advanced pocket WiFi routers are available in the market, which would be the powerful competitor to the 4G modem router from Netgear wireless. Huawei E5885 is a new 4G pocket WiFi router at the end of 2017. Netgear AirCard 810s was available in 2016 and has already been the best seller in Netgear 4G Routers. Someone may ask: what’s the difference between the Huawei E5885 and Netgear AC810S? Which one to buy from the two mobile routers? In this article, we will review the appearance, interfaces, specs, price, and other features to answer the questions.

AirCard 810S VS Huawei E5885 Appearance and Interfaces

Since the Aircard 810s was available in the market for around 2 years, you may already know the Netgear AC810s, which is the world’s first LTE cat.11 mobile hotspot. On the front, there is a 2.4-inch touchscreen with “Home” and “Back” buttons at the screen side. The touchscreen allows users to do simple settings for internet connection. The power button is on the top edge side while on the opposite side, two connectors for an external antenna and USB 3.0 port are located. Like other Netgear 4G WiFi routers, the two connectors are a TS-9 type. The back cover of the Aircard 810s could be opened and the battery is removable.

Huawei E5885 may not be as well-known as Aircard 810s but it has unique features. Here now the market has only the E5885Ls-93a available. Not sure whether there will be a new variant model available in near future. The Huawei E5885 is thicker than common 4G mobile hotspots because it has a large built-in battery of 6400mAh. There is also a small screen on the front, but not touchable. The power button and WPS button are on the top edge side of the Ethernet port and USB ports. You much open the cap to see the ports. However, unlike other Huawei mobile router 4G, the Huawei E5885 doesn’t have the connectors for external antennas. The back cover could be removed but the built-in battery can’t be removed. The Huawei E5885 and Netgear Aircard 810s both use Micro SIM card size. The E5885 has also the Micro SD card slot for storage.

Netgear AirCard 810s vs Huawei E5885Ls-93a Specs and Features

From the appearance, we can see the Huawei E5885 and Netgear Aircard 810s are very different. Then let’s have a review about the Huawei E5885Ls-93a specs and Netgear AC810S specs.



Model Huawei E5885Ls-93a Netgear Aircard 810s
Product type LTE Mobile Hotspot with Ethernet port LTE Mobile Hotspot
Category LTE Cat.6 LTE Cat.11
Chipset Hisilicon LTE Cat6 chipset Qualcomm Snapdragon X12
Data rates DL 300Mbps/UL 50Mbps DL 600Mbps/UL 100Mbps
Supported 4G LTE frequency bands * FDD-LTE Band 1/2/3/4/5/7/8/19/20
* TDD-LTE: Band 38/40/41		 B1, B3, B7, B8, B28
WLAN 802.11a/b/g/n/ac, dual-band 2.4GHz & 5GHz 802.11a/b/g/n/ac, dual-band 2.4GHz & 5GHz
Max support users 32 users 15 users
MIMO 2 X 2 MIMO 2 x 2 MIMO
Connector for external antenna No connector Two, TS-9 jacks
Buy Antenna N/A Aircard 810s External Antenna
App management Huawei Hilink APP 3.0 Netgear Aircard APP
SIM type Micro SIM Micro SIM
Battery Non-removable, 6400mAh Removable, 2930 mAh
Dimensions  112.00 x 69.20 x 23.00mm 112 x 68.6 x 15.45mm
Ethernet Port On port for WAN/LAN port(RJ-45) No
Datasheet download Huawei E5885Ls-93a Datasheet Netgear AC810S Datasheet
User Manual Huawei E5885Ls-93a User Manual Netgear AC810S Manual
Other features Power bank, CA, NFC 3 band CA
Reviews Huawei E5885 Review Netgear Aircard 810s review
Price 249.00USD 249.00USD



Summary

From the specs table, we can see the new Huawei E5885Ls-93a 4G hotspot supports LTE category 6 while the old model Netgear 810S supports LTE Cat.11, which could achieve almost double faster speed than that of Huawei E5885. However, the Huawei E5885 has many features that are very powerful. Firstly, the Huawei E5885 has one Ethernet port for WAN and LAN, which would provide more connection possibility, especially when the 4G connection is not available and only an Ethernet connection is available. Secondly, the Huawei E5885Ls-93a could support maximum users up to 32 users while Netgear Aircard 810s supports only 15 users. Thirdly, the Huawei E5885Ls-93a has a large battery pack of 6400mAh, which would keep working for a long time and charge other devices. The AirCard 810s also has the JumpBoost, which is to charge devices. However, the battery of 2930mAh seems weaker than Huawei E5885 battery.

However, the more advanced Netgear 810S has the same price as the latest new Huawei E5885. If you need a practical 4G mobile WiFi hotspots, Huawei E5885 seems to be more powerful and useful. But if you just need a faster internet connection, the Netgear Aircard 810s is the right one to recommend.

Huawei E5885Ls-93a VS Huawei E5788u-96a

More and more Huawei LTE advanced mobile routers are available in the market now. Many customers are not satisfied with the basic LTE and want to get higher LTE speeds. So they must get LTE advanced or LTE-A pro router to fulfill that. Huawei E5788 and E5885 are the two hot new models in the Huawei E5 MiFi family. For those who want to buy one from the two mobile hotspots, they may ask: What’s the difference between the Huawei E5885 and E5788? And which one is better? We will review the appearance, interfaces, specs, and other features to find the answers.



Huawei E5885 VS E5788 Appearance and interfaces

Huawei E5788 is the latest Huawei LTE advanced pro mobile 4G router with a touch screen. Comparing with its predecessors, Huawei E5788 is thinner and has better hand feel. The power button is on the top edge side while the USB 3.0 port and SIM card slot are on the opposite side. We can’t find the connector for an external antenna, which is the standard configuration in other Huawei E5 mobile hotspots such as E5787 and E5786. The backcover of Huawei E5788 can’t be removed and the battery is built-in and non-removable.

The Huawei Mobile WiFi Pro 2 E5885 is also the latest new LTE-A mobile router. The typical feature is that it has one Ethernet port and USB input and output interfaces. There is only one small screen on the front to show the connection status. The power button and WPS are located at the two sides of the interfaces. Similarly, the Huawei E5885 also has no connector for external antenna. The Huawei E5885 is thicker than the normal Huawei E5 pocket WiFi hotspots. The battery of Huawei E5885 is also non-removable; however, the backcover can be removed. Huawei E5885 and E5788 both use Micro SIM size. The Huawei E5885 has the slot for Micro SD storage but E5788 has not.

Huawei E5788 VS E5885 Specs and features

From the appearance and interface, we can see the Huawei E5788 and E5885 are very different. Then let’s have a look at the technical specifications and features, which is the key difference:

Model Huawei E5885Ls-93a Huawei E5788u-96a
Product type LTE Mobile Hotspot with Ethernet port LTE Mobile Hotspot
Category LTE Cat.6 LTE Cat.16
Chipset Hisilicon LTE Cat6 chipset Qualcomm MDM9250
Data rates DL 300Mbps/UL 50Mbps DL 1Gbps/UL 100Mbps
Supported 4G LTE frequency bands * FDD-LTE Band 1/2/3/4/5/7/8/19/20
* TDD-LTE: Band 38/40/41		 * FDD-LTE: Band 1/2/3/4/5/7/8/19/20/28
* TDD-LTE: Band 38/40/41/42
WLAN 802.11a/b/g/n/ac, dual-band 2.4GHz & 5GHz 802.11a/b/g/n/ac, dual-band 2.4GHz & 5GHz
Max support users 32 users 32 users
MIMO 2 X 2 MIMO 4 X 4 MIMO
Connector for external antenna No connector No connector
Buy Antenna N/A N/A
App management Huawei Hilink APP 3.0 Huawei Hilink APP
SIM type Micro SIM Micro SIM
Battery Non-removable, 6400mAh Non-removable, 3000mAh
Dimensions  112.00 x 69.20 x 23.00mm 129 x 65 x 13.5mm
Ethernet Port On port for WAN/LAN port(RJ-45) No
Datasheet download Huawei E5885 Datasheet Huawei E5788 Datasheet
User Manual Huawei E5885 User Guide Huawei E5788u-96a Manual
Other features Power bank, CA, NFC 4CC CA
Reviews Huawei E5885 Review Huawei E5788u-96a Review
Price 249.00USD 499.00USD



Summary

From the specs, the Huawei E5788 is more advanced with the support of LTE advanced Pro technologies, such as 4 x 4 MIMO and 4CC CA. And Huawei E5788 supports more LTE frequency bands, which make it could be used more widely. The highlight of Huawei E5788 LTE router should be the data transmission speed, it can reach peak download speed up to 1Gigabit/s, which is three times faster than that of Huawei E5885. The advanced features make the Huawei E5788 hotspot price expensive.

As a new LTE-A mobile hotspot, Huawei E5885 could achieve download speed to 300mbps. They both support maximum users up to 32 devices. In most case, the Huawei E5885 is good enough for our daily lives. The highlight of Huawei E5885 is the Ethernet port, which is for WAN & LAN and provides more options for internet connection. What’s more, the large battery of Huawei E5885Ls-93a can make it work like a power bank to charge other devices. So the Huawei E5885 has more powerful functions than E5788. And the Huawei E5885 is in a cheaper price than E5788. If you just need a mobile hotspot supporting much faster speed, there is no doubt the Huawei E5788 is the right one. If you want to get a practical and powerful pocket WiFi, then Huawei E5885 would be the right one.

Five LTE Advanced Pro Modules to Recommend

With the development of LTE wireless technologies, more and more networks are evolving from LTE advanced to LTE advanced Pro. LTE Advanced Pro (LTE-A Pro, also known as 4.5G, 4.5G Pro, 4.9G, Pre-5G, 5G Project, and so on) is a marker of the 3GPP release 13 and 14, which is a natural evolution of Long Term Evolution (LTE) with speed up to Gbit/s level, which incorporated numerous new technologies that would be used in 5G standard, including 256QAM, Massive MIMO, LTE-Unlicensed, LTE IoT, and others to progressively evolve existing networks into 5G standard.

LTE-A Pro aims to significantly increase the data speeds and bandwidth available for mobile communications. It will also bring a much wider range of connected devices and platforms under a single standard. LTE-A Pro seeks to improve and optimize the capacity, performance, functionality and efficiency of LTE-A, as well as to further reduce latency, to provide a better user experience. It will also enhance the LTE platform for the delivery of new services to new markets as we move towards IoT with 5G.

The key attributes that will define LTE-Advanced Pro are:

> Data speeds in excess of 3Gbps (LTE-A: 1Gbps)
> 640MHz of carrier bandwidth (LTE-A: 100MHz)
> Latency: 2ms (LTE-A: 10ms)



Since very few LTE Advanced pro devices are available in the market, the LTE vendors are already presenting their LTE advanced Pro modules to the public and below the five LTE advanced Pro modules are recommended if your terminals are demanding high-speed internet access:



  1. Telit LM960 (LTE Cat.18)

Specs Highlights:

* World’s first mPCIe form factor to support LTE cat.18

* Support global 23 LTE Frequency bands

* LTE peak download speed up to 1Gbps

* Dual SIM Single Standby

* Full GNSS support: GPS, GLONASS, Galileo, Beidou

* Chipset: Qualcomm Snapdragon X20 modem

* Linux and Windows driver support

* 4 x 4 MIMO and 256 QAM

* 5x Carrier Aggregation for increased data rates

Check more details about Telit LM960 Specs, price, drivers, and buy Telit LM960 module here: https://www.4gltemall.com/telit-lm960-4g-lte-cat18-pcie-module.html



  1. Sierra Wireless AirPrime EM7565 (LTE Cat.12)

Specs Highlights:

* LTE Advanced Pro Cat.12 Module

* Chipset/Processor: Qualcomm MDM9250

* DL to 600Mbps/UL to 150Mbps

* Supporting 24 worldwide LTE bands, including LTE-LAA and CBRS

* Satellite Systems: Galileo, Glonass, GPS, Beidou

* Planned Carrier AT&T, DoCoMo, Telstra, Verizon, Vodafone

* Regulatory: CE, FCC, GCF, IC, NCC, PTCRB

Check more details about Sierra AirPrime EM7565 Specs, price, drivers, and buy AirPrime EM7565 module here: https://www.4gltemall.com/sierra-wireless-airprime-em7565.html





  1. Sierra Wireless AirPrime EM7511 (LTE Cat.12)

Specs Highlights:

* Very similar to AirPrime EM7565

* LTE Advanced Pro Cat.12 Module

* Form factor: M.2

* Chipset/Platform: Qualcomm

* DL to 600Mbps/UL to 150Mbps

* Supporting 24 worldwide LTE bands, including LTE-LAA and CBRS

* Control Options: APIs, AT Commands

* Firmware over-the-air (FOTA)

* GPS, GLONASS, BeiDou, and Galileo satellite systems supported

Check more details about Sierra AirPrime EM7511 Specs, price, drivers, and buy AirPrime EM7511 module here: https://www.4gltemall.com/sierra-wireless-airprime-em7511.html



  1. Telit LM940 (LTE Cat.11)

Specs Highlights:

* Category: LTE Cat.11 Module

* Form Factor: PCI Express Mini Card Type (mPCIe)

* Chipset: Qualcomm MDM9240

* LTE data rates: DL 600Mbps(w/3x CA DL, 256QAM) and UL 75Mbps

* Full GNSS support: GPS, GLONASS, Galileo, Beidou

* Carrier Approvals: AT&T, Sprint, Verizon

Check more details about Telit LM940 Specs, price, drivers, and buy Telit LM940 module here: https://www.4gltemall.com/telit-lm940-lte-cat-11-gps-pcie-module.html



  1. Telit LN940 (LTE Cat.11 and Cat.9)

Specs Highlights:

* Two variant models: Telit LN940A9 and LN940A11

* 42mm M.2 (NGFF) single-sided data card

* LTE Category 11 LTE DL 600Mbps UL50Mbps

* LTE Category 9 LTE DL 450Mbps UL50Mbps

* HSPA+ Rel. 8: DL/UL up to 42/11.5 Mbps

* Quad-constellation integrated GNSS

* Linux and Windows driver support

* Carrier Aggregation, 2 x 2 MIMO and 256 QAM

Check more details about Telit LN940 Specs, price, drivers, and buy Telit LN940 module here:

https://www.4gltemall.com/telit-ln940-lte-cat9-11-m-2-data-card.html

Samsung Presents LTE Cat.18 Modem with 6CA Support

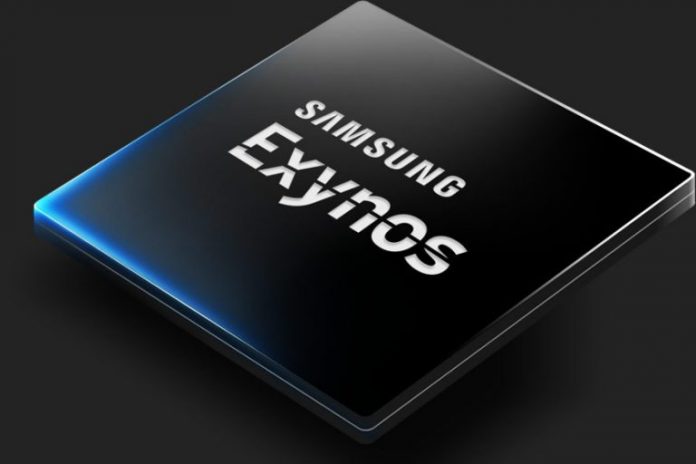

Samsung has introduced a LTE Advanced Pro modem for use in the Exynos chipset series, which is expected to achieve up to 1.2 Gbit/s in the downlink thanks to carrier aggregation, 4 × 4 MIMO and 256QAM technologies. The modem works with LTE category 18 and should be next to the Qualcomm Snapdragon X20, the first modem to provide such high speeds. The market for mobile radio modems is shared by a few large manufacturers, such as Qualcomm and Samsung, Intel, Mediatek and HiSilicon (Huawei).



LTE Cat18

In Europe, LTE of category 12 is currently being used (mid 2017), which corresponds to speeds of approximately 500 MBit/s at Vodafone. However, the development proceeds rapidly, the 3GPP Release 13 has also defined the LTE category 18 Downlink, which enables up to 1.2 GBit/s. The high data rates can be achieved by an extended antenna technology (4 × 4 MIMO) and by a better modulation (256QAM). Some of the features defined in 3GPP Release 13 are also advertised as LTE Advanced Pro, which is a further development of LTE Advanced.





First 6CA modem

According to Samsung, the new modem is the first LTE modem that can bundle up to 6 frequency bands simultaneously (6CA). Other hitherto available high-end modems can be a maximum of 5CA, many chipsets built in current mid-class smartphones can only 2CA or 3CA. In addition to 6CA, 256QAM and 4 × 4 MIMO, the Samsung Modem supports eLAA (enhanced Licensed Assisted Access), ie the use of unlicensed radio spectrum. For future applications, it is conceivable that network operators also use radio spectrum, which has so far mainly been used for WLAN (5 GHz range). Initial tests have shown that parallel operation of LAA and WLAN is possible without problems.

Use in the Galaxy S9?

The new Samsung LTE modem will go into mass production from the end of 2017 and is expected to be used in 2018 in new high-end devices with Samsung Exynos chipset. For the Samsung Galaxy Note 8, which is expected in August 2017, this is, of course, too late, but possibly we will see the Samsung LTE Cat18 modem in the Galaxy S9, which is expected to be released in spring 2018.
