ZTE MF286 VS Huawei B525s

Huawei had many LTE Cat6 routers available now but the competitor ZTE has very few Cat6 routers in the market. ZTE MF286 router is one of the ZTE LTE Cat6 routers, since Huawei B525s LTE Cat6 router, some people want to know what the difference between Huawei B525 and ZTE MF286 is. We would compare the Huawei B525s with ZTE MF286 from the appearance, interfaces, specs, and features in this blog.

Huawei B525s VS ZTE MF286 Appearance and Interfaces



ZTE MF286 and Huawei B525s are both in the typical design of 4G WiFi router. On the front, there are some indicators for Power, WiFi, and Signal. The ZTE MF286 has also the indicators for Telephone, 3G/4G Data and Battery. Huawei B525 doesn’t have the indicator for telephone and battery. But it has the indicator for Ethernet connection. On the back, they both have 3 LAN ports and one LAN/WAN ports. Huawei B525 has only one telephone port while ZTE MF286 has two telephone ports. They both have the power adapter plug and USB port, but the ZTE MF286 has the power on/off button.



The SIM card slot of Huawei B525 is located at the bottom while the ZTE MF286 sim card slot is at the edge side. They both have two SMA connectors for external LTE antennas. The unique feature of ZTE MF286 is the removable battery which makes it work like a mobile WiFi router. Huawei B525s has the WPS and Power buttons on the top side while the ZTE MF286 has the WLAN and WPS buttons with the Reset hole on the top side.



ZTE MF286 VS Huawei B525 Specs and Features



From the appearance, we can see the interface difference and then let’s have a check the ZTE MF286 specs and Huawei B525 specs for a comparison:



Model Huawei B525 ZTE MF286
Product type Huawei WiFi Router with Ethernet port LTE WiFi Router with Ethernet port
Category LTE Cat.6 LTE Cat.6
Chipset HiSilicon LTE Cat6 Chipset Qualcomm MDM9230
LTE Data rates DL 300Mbps/UL 50Mbps DL 300Mbps/UL 50Mbps
Supported 4G LTE frequency bands Huawei B525s-23a: Band  1/3/7/8/20/32/38
Huawei B525s-65a: Band  1/3/4/5/7/8/20/19/26/28/32/38/40/41		 ZTE MF286: Band 1/3/7/8/28
WLAN 802.11a/b/g/n/ac, dual-band 2.4GHz & 5GHz 802.11b/g/n/ac, dual-band 2.4GHz & 5GHz
Max supported users 64 users 64 users
MIMO 2 x 2 MIMO 3 x 3 MIMO
Antenna Two, SMA-female jacks Two, SMA-female jacks
Buy Antenna Huawei B525 antenna ZTE MF286 outdoor antenna
App management Huawei Hilink APP ZTELink APP
SIM Size Micro SIM Standard SIM
Battery NO Removable, 3000mAh
Dimensions 163 x 52 x 226 mm 180 × 170 × 30 mm
Interfaces * 3 x LAN port(RJ45)
* 1 x LAN/WAN port (RJ45)
* 1 x telephone port(RJ11)
* Two external LTE antenna ports(SMA-female)
* One micro-SIM card slot
* 1 x USB 2.0 port		 * 3 x LAN port(RJ45)
* 1 x LAN/WAN port (RJ45)
* 2 x telephone port(RJ11)
* Two external LTE antenna ports (SMA-Female)
* One micro-SIM card slot
* 1 x USB 2.0 port
Datasheet Huawei B525 Datasheet(PDF) ZTE MF286 Datasheet(PDF)
User Manual Huawei B525 User Manual(PDF) ZTE MF286 User Manual(PDF)
Other features  Firewall, CS Voice, VoIP, TR069 Remote Management, HTTP Online Upgrade, QoS, USB Share, UPnP, IPV6, DLNA, Fax, Print, VPN  Firewall, CS Voice, VoIP, TR069 Remote Management, HTTP Online Upgrade, QoS, USB Share, UPnP, IPV6, DLNA, Fax, Print, VPN
Firmware download Huawei B525 firmware ZTE MF286 firmware
Driver Huawei B525 driver ZTE MF286 driver
Reviews Huawei B525 Review ZTE MF286 Review
Price/USD 259.00USD 199.00USD



Summary

From the specs table, we can see the Huawei B525s and ZTE MF286 are both LTE Cat6 router which could achieve download speed up to 300Mbps and upload speed to 50Mbps. The Huawei B525 router has two variant models now but ZTE MF286 has only one variant model. They both support maximum up to 64 wireless devices but ZTE MF286 supports 3 X 3 MIMO while Huawei B525 supports 2 X 2 MIMO. The removable battery adds many bonuses for ZTE MF286 router because it can make the MF286 router used as a mobile WiFi router. Then the ZTE MF286 could be used in much more circumstances. With the similar technical feature, ZTE MF286 price is cheaper than Huawei B525 price. Perhaps because the Huawei B525 is the latest router and ZTE MF286 is an old model. We didn’t take the speed test for Huawei B525 and ZTE MF286, but from the specs, we think the ZTE MF286 is better than Huawei B525 Router.

ZTE MF286 VS Huawei B315

As two important network equipment manufacturers from China, Huawei and ZTE supplied similar networking products to the network providers and users worldwide. As the typical network terminals, Huawei and ZTE both have a series of 4G LTE Router for hundreds of network carriers and thousands of end-users all over the world. The ZTE MF286 and Huawei B315 are two of the most popular 4G WiFi routers. Those who don’t use the two routers may don’t know what the difference between Huawei B315 and ZTE MF286 is. To buy one of the two routers, they may feel hard to decide. We will compare the Huawei B315 and ZTE MF286 router to give a clue.



Huawei B315 VS ZTE MF286 Appearance and Interfaces

Huawei B315 and ZTE MF286 are both typical WiFi router for home. On the front, there are some indicators for Power, WiFi, Data, and Signal. ZTE MF286 has also the indicator for telephone and battery. The Huawei B315 doesn’t have the telephone port and battery, so there is no indicator for a telephone. On the back, they both have 1 port for WAN/LAN and 3 ports for LAN. The ZTE MF286 router has two telephone ports and one USB port, which are not available in Huawei 4G Router B315.



They both have the interface for an external power adapter, the Huawei B315 also have the reset hole at the side of the adapter. ZTE MF286 provides a button switch to power on or off the router. The SIM card slot is both located at the side of the two routers.



ZTE MF286 VS Huawei B315 Specs and Features

From the appearance and interfaces, we can see the ZTE MF286 and Huawei B315 are very similar in shape but there is the obvious difference in the interfaces and battery; they are both designed for the home WiFi router. Then we compare the ZTE MF286 specs with Huawei B315 specs:



Model Huawei B315s ZTE MF286
Product type LTE WiFi Router with Ethernet port LTE WiFi Router with Ethernet port
Category LTE Cat.4 LTE Cat.6
Chipset Hisilicon Balong Qualcomm MDM9230
LTE Data rates DL 150Mbps/UL 50Mbps DL 300Mbps/UL 50Mbps
Supported 4G LTE frequency bands * Huawei B315s-22: 4G LTE B1/B3/B7/B8/B20/B38
* Huawei B315s-607: 4G Band 1/3/7/8/28/40
* Huawei B315s-936: 4G Band 1/3/40/41
* Huawei B315s-608: 4G Band 1/3/5/7/28		 ZTE MF286: Band 1/3/7/8/28
WLAN 802.11b/g/n, 2.4GHz 802.11b/g/n/ac, dual-band 2.4GHz & 5GHz
Max supported users 32 users 64 users
MIMO n/a 3 x 3 MIMO
Antenna Two, SMA-female jacks Two, SMA-female jacks
Buy Antenna Huawei B315 external antenna ZTE MF286 outdoor antenna
App management Huawei Hilink APP ZTELink APP
SIM Size Standard SIM Standard SIM
Battery No Removable, 3000mAh
Dimensions 186.0 x 139.0 x 46.0mm 180 × 170 × 30 mm
Interfaces * 1 x power adapter port
* 3 x LAN port(RJ45)
* 1 x LAN/WAN port (45)
* 1 x telephone port(RJ11)(depends)
* Two external LTE antenna ports (SMA-J1.5)
* One SIM card slot
* 1 x USB 2.0 port(depends)		 * 3 x LAN port(RJ45)
* 1 x LAN/WAN port (RJ45)
* 2 x telephone port(RJ11)
* Two external LTE antenna ports (SMA-Female)
* One micro-SIM card slot
* 1 x USB 2.0 port
Datasheet Huawei B315 Datasheet(PDF) ZTE MF286 Datasheet(PDF)
User Manual Huawei B315 Manual(PDF) ZTE MF286 User Manual(PDF)
Other features VoIP, DHCP, NAT, IPv6/IPv4 dual stack, Firewall, Port forwarding, DMZ, ALG, Remote management  Firewall, CS Voice, VoIP, TR069 Remote Management, HTTP Online Upgrade, QoS, USB Share, UPnP, IPV6, DLNA, Fax, Print, VPN
Firmware download Huawei B315s Firmware ZTE MF286 firmware
Driver Huawei B315s driver ZTE MF286 driver
Reviews Huawei B315 Review ZTE MF286 Review
Price/USD 169.00 199.00USD

Summary



From the specs table, we can see that the ZTE MF286 is more advanced than Huawei B315. ZTE MF286 router could support LTE Cat6 achieving download speed up to 300mbps and upload speed to 50Mbps. But unlike Huawei 4G Wireless router, ZTE MF286 has only one variant model while Huawei B315 has many variant models supporting various LTE frequency bands. The unique feature of ZTE MF286 is that it has a removable battery of 3000mAh, which makes it would work like a mobile WiFi router. The feature is not common in similar routers.

ZTE MF286 could support up to 64 wireless users while Huawei B315 router could support half to 32 WiFi-enabled devices. They both use standard 6 pin SIM card. With the advanced feature, ZTE MF286 price is a little bit higher than that of Huawei B315. If you are looking for a router that can provide faster speeds, it’s better to buy ZTE MF286. But if you concern about the price, Huawei B315 is a decent and budget router to buy.

ZTE MF286 4G LTE Router Test

Since LTE networks are becoming more and more popular, there are many stationary or mobile LTE routers from various brands on sale, and one of the most interesting routers is ZTE MF286 4G router. It combines the features of stationary router and the mobile router.

ZTE MF286



Not as well-known as Huawei B593 router, ZTE MF286 is quite a new router, it was introduced to some network providers in Europe at the end of last year. It supports the latest network standards, primarily LTE Advanced (aggregation of two bands, downloading at speeds up to 300 Mb/s), and within the Wi-Fi network, it supports the 802.11ac standard (2×2 MIMO, or up to 867 Mb/s).

ZTE MF286

Of course, there are no miracles in practice, the LTE speeds drop down in real use. Wi-Fi bandwidth is also a fraction of the theoretical value: between computers in the LAN and WLAN during testing it did not exceed 288 Mbit/s. Like other desktop routers, the ZTE MF286 has four Gigabit Ethernet ports, a USB 2.0 port for connecting a USB drive and file sharing, as well as an analog telephone line connector. Of course, there is also a built-in modem and a slot for mini SIM cards, under the plugs, two SMA connectors for the external LTE antenna.



An unusual feature is a removable battery with a capacity of 3000 mAh. It is a bit similar to the equipment for mobile 4G routers because you can take it anywhere and use it for at least 3 hours. It is a pity that instead of the USB charger, it has a 12-volt AC power adapter – you cannot power it with a power bank.

ZTE MF286

The function set is similar to other stationary LTE routers. The main screen of the configuration interface shows a network diagram where you can go to LTE settings, Wi-Fi or a list of connected devices. An interesting thing is the ability to choose the bandwidth that can be used by the modem built into the router. However, the Wi-Fi capability is much larger, above all the advantage is simultaneous operation in the 2.4 GHz and 5 GHz band. The router has a Wi-Fi optimization function – it scans the radio band, detects existing networks and automatically selects the best channel. You can enable an additional guest network (Multi SSID) on both frequencies, limit the number of clients in each SSID network, and set a time limit for guests (in hours).

ZTE MF286



Hardware and software provide the possibility of using WPS to quickly establish connections, as well as completely disable Wi-Fi. When it comes to managing devices on the network, there is actually only one function: blocking with one click (this is an easy-to-use MAC filter implementation):



In the lower part of the interface, there are additional functions, among them SMS and address book supported, but there is no USSD code support. There is an important function of setting the mobile data transfer limit (or time of using the network). After exceeding a certain threshold (eg 80% of the limit), a notification appears in the interface and in the form of a red color of the 4G indicator. It is not clear how (manually or automatically, on a certain day of the month), to reset information about the use of the data packet.



There is also parental control consisting of three elements: a list of “children’s” computers, a network access schedule (division into days of the week and hours), and a whitelist of pages. The feature affects the operation of security.



In the advanced settings, you can find a lot of additional functions, characteristic for the ZTE LTE router. This includes passing VPN connections, static MAC-IP binding (MAC address must be “patched” manually or copy device lists), packet filtering, manual port forwarding, UPnP, DMZ zone. The firewall is enabled by default and it is not possible to disable it. The advanced feature is the ability to adjust the power of the Wi-Fi signal (although it should probably be in the section on Wi-Fi), as well as the URL filter (should be in the parental control).



Other advanced features include DDNS, date and time configuration, SIM card PIN configuration, saving/loading configuration to/from the file, periodic updates software and ping diagnostics. The WatchDog function is interesting, which pings a specific IP address with a specified interval. After a few failed pings (their number can also be determined) resets the router to re-establish a connection.



There is also a file server function, there must be files on the USB memory stick in the network. So the router has a lot of functions, some very useful. It is a pity that some of them do not work as you would expect. Compared to other fixed routers, there is a lack of options, such as bandwidth management, any event log, e-mail notifications, or VPN connection (as in business equipment). The ZTE MF286 4G Router does not have a mobile application, but for smartphone management, you can use a good-looking mobile page with the most important settings.

Summary

ZTE MF286 can work like as a stationary router and as a mobile WiFi router. The web interfaces provider rich options for internet settings and WiFi features. It provides enough functions for daily use. If you are looking for a stationary router, you may consider ZTE MF286 Router.

ZTE MF28D 4G LTE Router Review and Settings

The ZTE MF28D is not a new LTE Router, it has been available for long time in the market. But some customers ask about the performance and settings for this router. Today, we will have a check about this router’s feature and settings.

ZTE MF28D

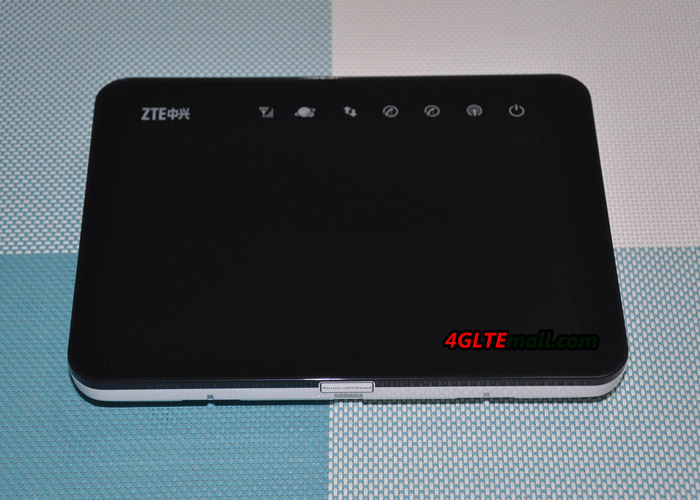

The appearance of ZTE MF28D is not very special, just like other competitors of 4G LTE routers such as Huawei B593 and Huawei E5186. There are some indicators with ZTE logo on the front, they are the indicators for signal, WLAN network, data transmission, telephone one and two, WiFi status and power. After power on, the indicators would turn on accordingly.

ZTE MF28D

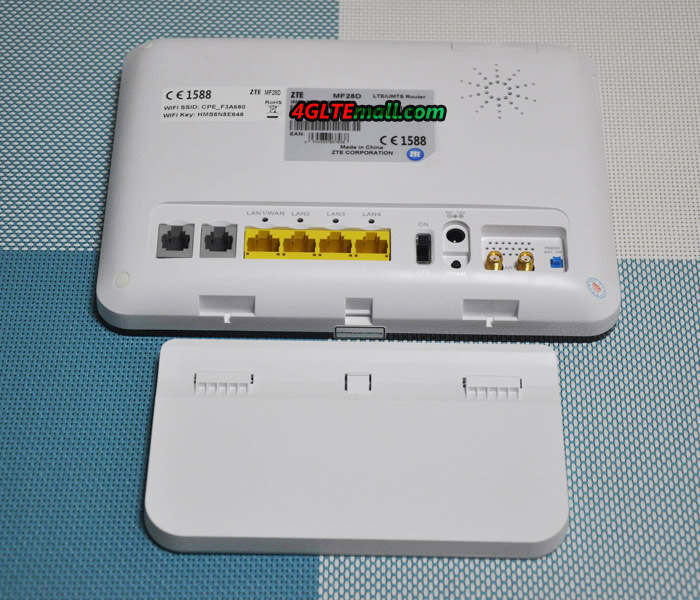

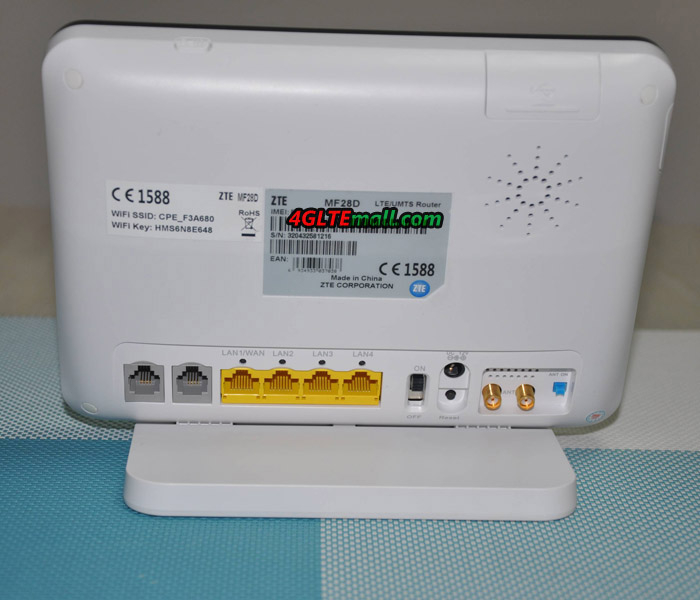

On the back of the ZTE MF28D, we can see the label with WiFi SSID and WiFi Key. And there is also a label with the model number, IMEI number, S/N number, and it also indicates it’s Made in China from ZTE Corporation. The label is on upper side. Below the label, there are interfaces for two VoIP telephone, 4 LAN connections (one for LAN & WAN). There is power switch button to control the power of the router device. And the power plug hole is at the side of the power button. Two external antenna connectors are also at the side of the power plug. The connector type is SMA. And a small button to swich internal antenna and external antenna. If you need the external antenna for the ZTE MF28D LTE/UMTS router, you should select the connector type SMA-male. And we have the tested external 4G/LTE antenna for ZTE MF28D as below:

http://www.4gltemall.com/4g-antenna-two-sma-connector.html

ZTE MF28D

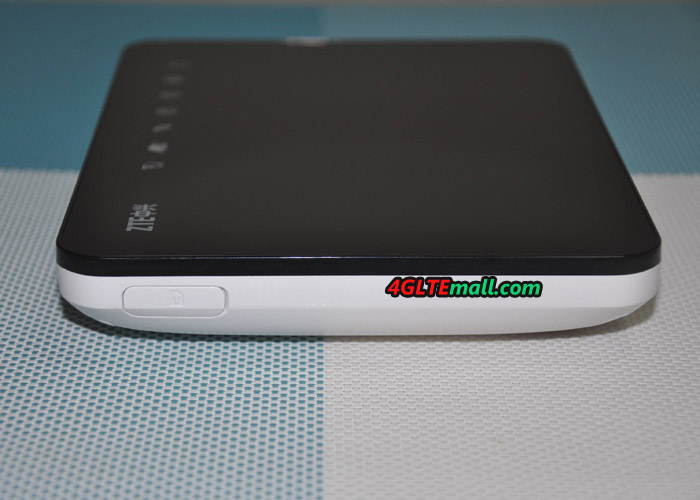

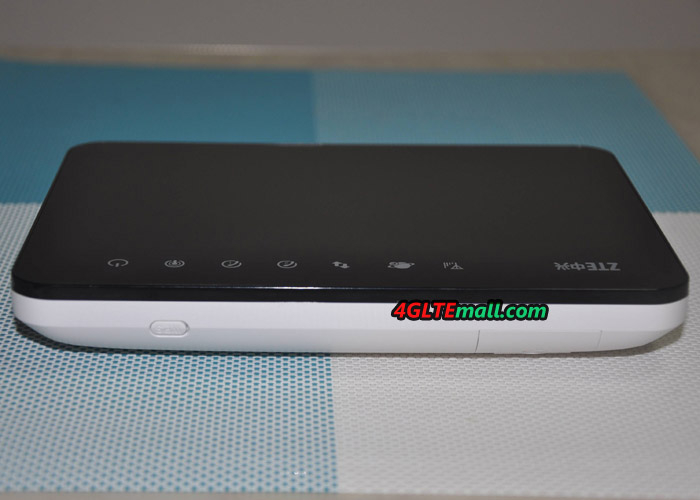

The SIM card slot is at the edge side of router. It uses standard SIM card. And the WPS button is on the top edge side. At the bottom side, there are the slots to let the router stand on the dock, which is with the router in white color. This is not like its competitor routers Huawei B315 and B310 LTE CPE, which could stand on the desk without the dock.



As a LTE category 3 router, ZTE MF28D could support peak download speed up to 100Mbps and upload speed to 50mbps. It could also support 3G UMTS and 2G GSM/EDGE network backward.

ZTE MF28D

The use of ZTE MF28D is very simple. Usually, the MF28D router would automatically detect the SIM card and connect to the wireless network from the SIM’s provider. If it can’t connect automatically, user just needs to setup a new APN for the network provider and then set it as default. User can also manually search the networks and select the preferred network for connection. And the ZTE MF28D can let user to select the operation mode in “Bridge”, “Cable Broadband” and “Wireless Broadband”.



ZTE MF28D



ZTE MF28D also support advanced settings such as APN settings, WiFi settings, Firewall Settings, VoIP and SMS. In most times, the advanced settings are only for few users. Most users just need do the simple settings for the APN and then get connected and surfing.

ZTE MF28D

ZTE MF28D may not be the best router now, but it’s in budget price and with very practical function, the MF28D LTE Router is good to use at home or office. Here now, there are many new LTE routers available with support of LTE advanced networks such as Huawei B618 and B715 LTE CPE, if you are looking for high-level LTE router, you may try the latest ones.

3neo 4G WiFi Router(ZTE MF287) Features Review

If we talk about 4G router, you may think of a 3G wireless router with external antennas or other features. Today, we will offer a presentation of a LTE router which doesn’t look like a common router but very special and beautiful! The Austrian telecommunications operator “3” makes the router available to its subscriber’s package named it as “3neo“. Actually, it’s from the Chinese manufacturer ZTE and the model number is MF287.

This 3neo MF287 router is a LTE category 6 device that allows download speeds of 300 Mbps and uploads of 50 Mbps. At this time, this router is exclusively marketed by operator 3 and, in fact, the wireless router is simlocked on its networks. However, it can be expected that it will soon be marketed directly by ZTE.

Aesthetically speaking, the router has a wide band of light on the left side that displays the status of the device and on top side, a LED that tells you the type of active connection.

Concerning the connection, you will see the connection possibility on the back. You will find:

* WPS activation button

* 4 gigabit LAN Ethernet ports

* 1 RJ11 port for the phone

* 1 USB port (only for manufacturer’s diagnostic operations in this version)

* The supplied 12V 1.5A power port.

* The Power button



You will also find the 2 covers of the external antenna connectors in TS-9 format. We recommend below the external antenna for the 3Neo/ZTE MF287 Router: http://www.4gltemall.com/4g-antenna-two-ts-9-connector.html

4G LTE Indoor Antenna (2 x TS-9 Connectors) for Huawei/ZTE 4G LTE Modems/dongles/mobile hotspots

Regarding the power supply, as you can see, this is a 12 volt source for 1.5 amps, which makes the ZTE MF287 3Neo router can work in a vehicle. What’s more, unlike other LTE category 6 router such as Huawei E5175, this router features an internal removable battery. This 3,080 mAh Li-ion battery allows the router to run independently for up to 5 hours of operation. So user can take the 3NEO Router on the go for outdoor activities.

The dimensions of 3Neo ZTE MF287 are 220 x 110 x 106 mm with a weight of 730g. It is a portable network solution for weekend or camping and is subject to recharge via a cigarette lighter socket. Finally, you will find the location of the SIM card in micro format under the battery.

On the WiFi side, the 3neo has the WLAN feature of 802.11a/b/g/n/ac with the dual band in 2.4 & 5 GHz. The 3Neo router accepts the connection of up to 64 users. The similar LTE Category 6 router Huawei E5186 could also supports same quantity of users. The ZTE MF287 can also support 3G and 2G networks if 4G/LTE network is not available. The 3neo router interface offering the features of DMZ, Port forwarding, Firewall, DHCP services with filtering, network selection and setting of the APN. However, the function of bridge mode is not supported.

At this time, we do not have accurate information about the support LTE bands and the aggregated frequency. However, Austria uses the same 4G bands as France, at least band 3 (1800), 7 (2600) and 20 (800), and operator “3” uses B3 & B7. And we suppose the cat6 aggregate is done in band 3 + 7. But this need re-confirm.



Finally, user can control the ZTE MF287 router with the 3 home application on your smartphone, after flashing the QR code located on the router. We would take further test after getting the ZTE MF287 in hand. If you can’t wait to get a new LTE cat.6 router, you may try Huawei E5186 or latest Huawei B618 LTE Router.

ZTE MF287 LTE Router Available as 3Neo for 3 Austria

The Austrian network operator 3 has once again added a new 4G LTE router to its product range: the 3neo by the Chinese manufacturer ZTE. At first glance, the design of the router looks unusual and definitely not like a usual wireless router. Technically speaking, the 3neo router comes from the factory model ZTE MF287, which has an LTE Cat6 modem for up to 300 MBit/s in the downlink and up to 50 MBit/s in the uplink. As a special feature, there is an integrated rechargeable battery, so you can use the 3neo as mobile router when on the go. ZTE MF287 3neo (4) 3neo LTE router

The design of the 3neo is unusual, but also has the connections to be found at the back, like the ZTE MF286 and Huawei E5186. On the side there is a LED light bar for the status display and on the top there is a LED light ring for the display of the network mode. Both the LTE antennas and the WLAN antennas are permanently integrated in the device and are not visible from the outside.



The modem of the 3neo can use LTE of category 6 and reaches up to 300 MBit/s in the downlink and up to 50 MBit/s in the uplink. Of course the router is also downwards compatible with the older 3G/UMTS technology, and up to 42.2 MBit/s in the downlink is possible. If desired, the mobile radio reception can be improved by an external LTE antenna, the required connections are hidden under a cover on the back. ZTE MF287 3neo (3)   In addition to the two connectors for an external antenna, there are also four RJ-45 Gigabit LAN connections as well as an RJ-11 telephone connection. Also the connection for the power supply is on the back, the plug for 12V/5A is also suitable for operation on an external battery/Powerbank, but unfortunately no MicroUSB connection for power supply has been installed. The built-in rechargeable battery in the 3neo / ZTE MF287 has a capacity of 3020 mAh and is supposed to allow an operating time of up to 4 hours without power supply. ZTE MF287 3neo (2) The WLAN in the 3neo runs on both 2.4 GHz and 5 GHz, the router can supply up to 64 devices at the same time. As a convenience function, for example, a guest network function as well as a WLAN timer is available. The connection is to be set up quickly thanks to QR code and “3Home” app for the smartphone without complicated password input.

Availability

The 3neo LTE router is now available in Austria. However, the 3neo LTE router has a netlock, so it can only be used with SIM cards from 3 Austria. If you want the unlocked 3neo, you may check www.4gltemall.com and the unlocked version of 3neo would be available in future time. ZTE MF287 3neo (1)

ZTE MF287 3neo LTE Cat6 Router Review

If you are looking for the latest new 4G Router with special design and supporting LTE-advanced network, you’d better have a check the ZTE MF287 4G Router which looks not like a common router. The MF287 router was presented by ZTE at CES 2016, and now it’s introduced to the carrier “3” in Austria and named “3neo”.



The 3neo design is hard to describe, below is the image in white color. In the middle, there is a line of blue color, which should be the indicator for power and network. At the bottom side, the Drei logo is listed.
ZTE MF287 3neo (4)
Strong and reliable router
With the modern design, you may curious about the technical specifications of the 3neo ZTE MF287. The 3neo LTE Router could support 4G LTE advanced Category 6 and achieve up to 300 Mbit/s for downlink and 50 Mbit/s for uplink. It is also equipped with 2.4 GHz and 5 GHz dual band WLAN and connects a total of up to 64 devices simultaneously to the Internet. 4 Gigabit LAN connections are also available.



Modern design

An LTE router now has to convince on all levels. These include ease-of-use, powerful and reliable performance, a modern mobile and wireless standard, and, of course, a cool design. Today, the ZTE MF287 3neo router can do these best. The 3neo router has to fit into every room with other furniture; the appearance of the 3neo was designed not as usual but the white color makes it looks not too special and just like one furniture.



ZTE MF287 3neo (1)

Battery on board

The 3neo has a built-in battery that performs well in the event of a power failure or on the go. When delivered, the battery can be activated online at any time on the configuration page. If no data transmission with other devices, the 3neo automatically switches to energy-saving standby. If you still need WLAN, the LTE router is ready for use again at the push of a button. Depending on the usage, the battery power is sufficient for up to 4 hours.





Plug & Play with QR code

In order to install your 3neo, you do not have to have any technical knowledge. Even SIM card and battery are already preinstalled. The principle of the 3neo is as simple as saving time, namely “PnP(Plug and Play)”. This is especially convenient with the 3Home app. User simply scans the QR code of your 3neo and you will be connected to the WLAN without complicated password input.

 ZTE MF287 3neo (2)

3Home App & Online Settings

The operation of 3neo is very easy, user can download the 3Home app to the smartphone or tablet and then can remote control the LTE router. They are free for Android and iOS, so you can do the installation, the operation and various settings in the app. Further settings could also be done via web configuration page as usual.



Guest access and WLAN timer
With Sleep Mode, you determine the time when WLAN and Internet connection are generally deactivated. You can set up a WLAN-free nighttime or keep the interactions of your children with the Sleep Mode under the handle. Another feature: The WLAN access for friends or relatives can be managed by QR code via the 3Home app. The additional entry of guest passwords will thus become invalid.



ZTE MF287 3neo (3)
With the 3neo LTE Router, the streaming of films, the playing of online games, the supply of all family members with lightning fast Internet could be fulfilled. Below are the features and technical specifications of ZTE MF287/3neo for your reference.



ZTE MF287 Technical Specifications
Top features
Category LTE Category 6
Download speed Up to 300 Mbit/sec.
Upload speed Up to 50Mbit/sec.
Power supply Socket (AC adapter 12V / 1.5A – cable included in the package)
Internet connection WLAN + 4 x LAN
Number of connections Up to 64 devices
General information
Battery 3080 mAh
Dimensions 220 x 110 x 106 mm (including socket 18mm)
Weight 730g with battery
WIRELESS INTERNET ACCESS
802.11a/b/g/n/ac Yes
Dual-band: Yes
Connections
RJ11 Yes
RJ45 Yes
USB (number of connections) Yes – 1x (only for manufacturer diagnosis)
Sim Type Standard SIM Card
Tech features
External antenna Yes
Bridge Mode No
DMZ Yes
SSID Yes
Guest SSID Yes
Port Forwarding Yes
Watchdog Service Yes
DHCP Settings Yes
Network selection Yes
APN Settings Yes



Five LTE Cat6 Home/Office Routers to Recommend

More and more people are enjoying the life with 4G LTE networks, which changes our lives invisibly. Even LTE is more and more popular; many customers are demanding faster surfing speed for large data transmission or online games. And the network providers are not stopping at the current LTE cat3 and cat4 networks. Many carriers are trying to upgrade the current LTE to LTE –Advanced to meet the customers’ requirements for better experience. With the upgraded LTE networks with carrier aggregation, customers can get much faster speed on LTE cat6 than current LTE cat4. Today, we would like to recommend a few LTE Category 6 routers for home or SOHO office.

lte-cat6-max-download-speeds-and-upload-speeds

Huawei B525

Huawei B525 is the latest 4G Router Cat.6 supporting DL speed to 300mbps and upload speed to 50Mbps, please check the details specs below:

Model Huawei B525
Product type LTE WiFi Router with Ethernet port
Category LTE Cat.6
Chipset HiSilicon LTE Cat6 Chipset
Data rates DL 300Mbps/UL 50Mbps
Supported 4G LTE frequency bands B525s-23a: Band  1/3/7/8/20/32/38
B525s-65a: Band  1/3/4/5/7/8/20/19/26/28/32/38/40/41
WLAN 802.11a/b/g/n/ac, dual-band 2.4GHz & 5GHz
Max supported users 64 users
MIMO 2 x 2 MIMO
Connector for external antenna Two, SMA-female jacks
Buy Antenna Huawei B525 external antenna
App management Huawei Hilink APP
SIM Size Micro SIM
Battery NO
Dimensions 163 x 52 x 226 mm
Interfaces * 3 x LAN port(45)
* 1 x LAN/WAN port (45)
* 2 x telephone port(RJ11)
* Two external LTE antenna ports (SMA-J1.5)
* One micro-SIM card slot
* 1 x USB 2.0 port
Datasheet Huawei B525 Datasheet(PDF)
User Manual Huawei B525 User Manual(PDF)
Other features  Firewall, CS Voice, VoIP, TR069 Remote Management, HTTP Online Upgrade, QoS, USB Share, UPnP, IPV6, DLNA, Fax, Print, VPN
Firmware download Huawei B525 firmware
Driver Huawei B525 driver
Reviews Huawei B525 Review
Price/USD 259.00USD

Huawei B525 is the best buy Cat6 WiFi router, if you want to buy it, click here: https://www.4gltemall.com/huawei-b525-4g-lte-cat6-wireless-router.html

Huawei E5186

Huawei E5186 is the world’s first 4G LTE Cat6 router for LTE advanced networks. With the carrier aggregation technology, users can access internet and surfing at 300mbps download speed and 50Mbps upload. The download speed is almost double faster than that from LTE CAT4, which could achieve download speed to 150mbps. To support various LTE frequency bands from different carriers, the Huawei E5186 CPE has two sub-models now as below:

* Huawei E5186s-22a: LTE Band 1/3/7/8/20/38 (FDD 800/900/1800/2100/2600MHz, TDD 2600MHz)

* Huawei E5186s-61a: LTE Band 3/7/28/40 (FDD 700/1800/2600MHz TDD 2300MHz)

huawei_e5186_4g_router_lte_cat6

Of course, the 3G DC-HSPA+/UMTS and quad-band GSM networks are backward compatible. The WiFi standard is 802.11a/b/g/n/ac on dual bands (2.4GHz and 5GHz). What’s more, the Huawei E5186 could support up to 64 wireless devices to access the internet through WiFi. And there are four RJ45 ports for LAN, one of which is also for WAN. Two RJ11 ports are for a telephone. One USB port and one SIM card slot are available. There is also the possibility to connect an external antenna to the E1586 router, on the back, there are two connectors for external antennas.



Huawei E5186 is a typical 4G LTE Router and as we know, it’s the best seller of LTE Cat6 router. If you want to know more details about it, click here: http://www.4gltemall.com/huawei-e5186-4g-cat6-802-11ac-lte-cpe.html





Huawei E5175

Very few people know the Huawei E5175 LTE Router perhaps because it’s also not listed in Huawei official site. And we also don’t get any information about the router available for any network providers. Perhaps it’s just a test model? We can’t get the answer.

huawei-e5175-e5175s-22-lte-cat6-router

The appearance of Huawei E5175 is similar to Huawei E5186, especially the interface ports, almost copying from E5186. It’s said Huawei E5175 is presented earlier than E5186, but it’s about to end of life. The Huawei E5175 technical specifications are the same as that of E5186 router.

If you want to know more details about Huawei E5175 4G Router, welcome to click here: http://www.4gltemall.com/huawei-e5175-4g-lte-wireless-gateway.html





Vodafone B4000

If you are familiar with Huawei wireless gateways, you may know the Vodafone B4000 is the customized Huawei E5186. The predecessor model Vodafone B3000 comes from Huawei B593s-22. On the Vodafone router, the Huawei logo is changed to Vodafone. And the firmware is customized for Vodafone. Other features and functions are completely the same as Huawei E5186.

vodafone-b4000

So if you don’t like the Vodafone brand, Huawei E5186 could fully replace Vodafone B4000. If you want to know more details about Vodafone B4000, click here: http://www.4gltemall.com/vodafone-b4000-4g-lte-cat6-wifi-router.html



ZTE MF286

ZTE is always following the steps of Huawei and presents similar products to huawei. So the appearance of ZTE MF286 somewhat looks like Huawei E5186. The interfaces in MF286 are the same to E5186. The chipset of ZTE MF286 is Qualcomm WTR3925 and MDM9230. But Huawei E5186 is on its own chipset. The highlight of ZTE MF286 is that there is an inserted battery with 3000mAh, which means user can take MF286 outdoor or on the go. Other features are similar to E5186. We usually say ZTE is copying Huawei, but we also see the innovation in ZTE products.

zte-mf286-lte-cat6-4g-router

If you want to know more details about ZTE MF286, click here:

http://www.4gltemall.com/zte-mf286-4g-lte-cat6-router.html





ZyXEL LTE4506

Unlike the three LTE routers above, the ZyXEL LTE4506 is in the shape of cube, which looks like Huawei E5180 LTE Cube. LTE4506 can support up to 32 wireless users. There is a micro-USB connector for charging and a Gigabit LAN port, for connecting wired devices. Frankly speaking, the design of the ZyXEL LTE4506 is cool, if you want to know more details about it, click here:

http://www.4gltemall.com/zyxel-lte4506-4g-lte-cat6-router.html

zyxel-lte4506-lte-homespot



We believe there will be more LTE Cat6 router available in near future, but currently the above the five LTE routers are the best for LTE advanced networks with CA. There is no doubt that Huawei is dominating this LTE advanced technology. In the above routers, Huawei E5186 is the most popular and mostly recommended. But before you get the right one, check the network compatibility first with your carriers.

LTE Cat6 CPE ZTE MF286 VS Huawei E5186

With the evolution of the wireless network technology, more and more network providers are trying to upgrade their LTE network to LTE cat6 advanced, so more and more users demand LTE terminals to support the latest LTE advanced networks. Even though, very few user equipments can meet the demand.

huawei-e5186-front-and-side

We had introduced the world’s the fist LTE Category 6 router Huawei E5186, now we get the new LTE Cat6 gateway ZTE MF286. As ZTE’s first LTE Category 6 router, the MF286 has many functions, even the appearance/interfaces design similar to LTE CPE E5186, but it also many special features. Today, we will have a check the difference between the two 4G LTE Routers.

huawei-e5186-leds-vs-zte-mf286-indicators

Appearance

The ZTE MF286 and Huawei E5186 both looks like a common stationary wireless home router, front indicators to show wireless connection status (Power, Wifi, Phone, 3G/4G, Battery, Signal), side gridding design to heat radiating, and interfaces (4 x RJ45 ports for WAN/LAN, 2 x RJ11 ports for VoLTE and telephone, 1 x USB port for storage and power adapter plug). And there are two connectors for external antenna in the two routers but the connectors are covered by a small cap in case dust and water. And the WPS button and reset hole line together. Of course, there is one SIM card slot in the two routers.





Technical specifications

The two routers can work well with FDD & TDD LTE networks. As wireless gateways for LTE Cat6, they both could achieve download speed to 300mbps and upload speed to 50mbps on LTE FDD networks. And the download speed could reach 112Mbps on TD-LTE networks. If LTE network is not available, they can automatically switch to 3G UMTS/WCDMA network or 2G GSM networks. And the peak download speed on 3G network is 42Mbps.

huawei-e5186-vs-zte-mf286-interfaces

ZTE MF286 and Huawei E5186 4G Router both could support the IEEE 802.11a/b/g/n/ac with dual bands (2.4GHz and 5GHz). Up to 64 devices could connect to the MF286 and E5186 LTE CPE respectively. And they both support VoLTE function, which is required and practical on the LTE Advanced network. The management of the two routers can be done via the web UI. Users can do personal settings for Ethernet, WLAN, VoIP, Security, Port Forwarding, MAC/LAN IP filter, DHCP, DMZ, SIP ALG, UPnP, NAT settings etc in web UI.



But we can also see the difference between the two similar 4G Router:

  1. The chipset of the Huawei E5186 is Huawei own Hisilicon Kirin while ZTE MF286 is based on Qualcomm chipset Qualcomm WTR3925 (28nm process) and Qualcomm MDM9230 (20nm process)
  2. There is no battery in Huawei E5186, it can only work when connect to power adapter. However, the ZTE MF286 has built-in battery with 3000mAh capacity, which can support a conference call for up to 4 hours.

ZTE MF286

The two points should be the key difference between the two routers. Below are the details comparisons for the two routers on features and specifications for reference:



Model ZTE MF286 Huawei E5186
Type Stationary & Portable Router Stationary router
Category LTE Cat6 LTE Cat6
Network technology TD-LTE/FDD-LTE/DC-HSPA+/HSPA+/ UMTS/EDGE/GPRS/GSM TD-LTE/FDD-LTE/DC-HSPA+/HSPA+/ UMTS/EDGE/GPRS/GSM
4G Speed * LTE-FDD DL 300Mbps/UL 50Mbps

* TD-FDD DL 220Mbps/UL 10Mbps

 * LTE-FDD DL 300Mbps/UL 50Mbps

* TD-FDD DL 220Mbps/UL 10Mbps
3G Speed DC-HSPA+ DL up to 43.2Mbps DC-HSPA+ DL up to 43.2Mbps
WiFi IEEE802.11a/b/g/n/ac(2.4GHz and 5GHz) IEEE802.11a/b/g/n/ac(2.4GHz and 5GHz)
MIMO Yes Yes
Max users 64 64
Interfaces 2 x RJ11 + 4 x RJ45 + 1 x USB + 1 x SIM slot + 1 x Power plug + 2 x connectors for antennas 2 x RJ11 + 4 x RJ45 + 1 x USB + 1 x SIM slot + 1 x Power plug + 2 x connectors for antennas
Battery Yes, 3000mAh No
VoLTE Yes Yes
Other features CSFB, HD Voice, Web UI, IPV6, WPS Firewall, CS Voice, VoIP, VoLTE, TR069 Remote Management, HTTP Online Upgrade, QoS, USB Share, UPnP, IPV6, DLNA, Fax, Print, VPN
Dimensions  180 × 170 × 30 mm 190 mm × 200 mm × 32 mm



If you like the two LTE Cat6 routers, welcome to check www.4gltemall.com .



ZTE 3HuiTube MF282 4G LTE Router

The 3HuiTube, successor of 3WebCube, is the new wireless router for Austrian mobile operator Three Austria. The HuiTube is not black and angular, but white and round and offers complimentary wireless internet access as LTE connectivity for home.

Features and characteristics of the 3HuiTube
Manufacturer and type designation: ZTE MF282 3HuiTube
Chipset: not known
LTE Category: CAT4
Download rate up: Up to 150 Mbit/s
Upload rate to: Up to 50 Mbit/s
Supported LTE bands 800 MHz/1800 MHz/2600 MHz
Backward compatible with: DC-HSPA+ / UMTS / GMS
Support of LTE-Advanced No
MIMO Support: Yes, 2×2
External antenna connector: Yes, 3G / 4G via TS-9 (Buy 3HuiTube Antenna)
Telephone
With integrated telephone system: No
Connector for ISDN telephones: No
Connection for analog telephones: Yes (RJ11)
DECT: No
Integrated answering machine: No
Network | LAN & WLAN
LAN Ports: 1x Gigabit LAN (RJ45)
WLAN Standards: WLAN 802.11 a/b/g/n/ac
5 GHz WLAN support: Yes
Encryption: WPS, WEP, WPA, WPA2
Wireless Internet Hotspot function: Yes, for up to 64 devices
Others
Battery pack: No
Dimension: 128 x 107 mm
USB: No
Memory card expansion: No
Release: October 2015
available at: www.4gltemall.com

Technical Features







The 3HuiTube is also constructed unusual: The router part sitting on a dock and can be removed to make it operate with its own plug directly into an AC outlet. A colored LED ring on the lid indicates whether and which network the device just uses.

Configuration in the Web

The operating system of the router produced by Chinese manufacturer ZTE, based on Linux 2.6. On a special website, you can configure the router. Here the user can also program a timer, for example, so that the wireless LAN function turns off automatically at night. About the Bridge mode, you can also directly disable the wireless function. Besides the usual encryption as WPA2, a firewall is installed. Additional features include port forwarding, DynDNS, guest-Fi and DHCP server. The installation should be easy.

WiFi & connections

The 3HuiTube could support WiFi 802.11 a/b/g/n/ac, both on the 2.4 GHz and 5 GHz bands (dual band) with 2 × 2 MIMO. The router automatically chooses to request the best wireless channel. User can also choose the channel, using the Channel Analysis of the device. According to operator “3”, 3HuiTube can work as a wireless hotspot for up to 64 devices. The router has a Gigabit LAN port (RJ45) and a connection for an analog telephone (RJ11). The webCube has incidentally two TS-9 sockets.





WiFi via mobile



After the SIM card is inserted, the router only needs to be connected to the home network and is then ready for operation. Unfortunately, ZTE has not installed CAT6 module, so with LTE category 4 at 150 Mbit/s downstream and 50 Mbit/s upload is final. If there is no LTE network available, it can continue surfing via HSPA+ with up to 42 Mbit/s.





Availability & Price

The ZTE 3HuiTube is offered by Austria operator 3 in combination with the LTE tariffs. If you would like unlocked 3HuiTube, welcome to check the online store www.4gltemall.com for SIM free units.
