Telstra 4GX WiFi Pro E5787 VS Optus Modem AC800s

Telstra and Optus are both 4G LTE network providers in Australia, and they provide similar LTE frequency bands. To meet the demand for LTE wireless connection, they both have the 4G LTE mobile WiFi hotspots for their contract plan. Telstra had introduced Huawei E5787 Mobile WiFi touch to its product range while the Optus had latest Netgear Aircard 800s. Then somebody may ask: What’s the difference between Huawei E5787 and Netgear Aircard 800s? Which one is better if buying from the two routers?

Telstra 4GX WiFi Pro E5787 VS Optus Modem AC800s Appearance

The specific model for Telstra is Huawei E5787ph-67a, unlike the brother model Huawei E5786, the E5787ph-67a has a 2.4-inch touchscreen and no button on the front side. The power button is on the top edge side while on the opposite side, the USB 2.0 port and two connectors for external antennas are available. The back cover of Huawei E5787 could be removed for changing the battery or inserting the SIM card.



Like the Telstra 4G WiFi Pro Unlocked, the Optus 4G WiFi modem 800s also has a 2.4-inch touchscreen and there are two buttons at the screen side, one for home and the other for “back”. The button is also on the top edge side and the two connectors for external antennas are available at the opposite side with the USB 3.0 port. The difference is the antenna connectors are on two sides of the USB port. The back cover of Optus 800s could also be removed for exchange or inserting the SIM card. They are both configured with two TS-9 connectors.

Optus AC800S VS Huawei E5787 Specs and features

From the appearance, we can see the Telstra 4G WiFi Pro and Optus 4G Cat.9 modem 800s are very similar in design, including the touchscreen, home button, external antenna connectors. Let’s compare the Telstra 4G WiFi Pro specs with Optus 4G modem 800S Specs to see what the difference is in the specifications in the table below:



Model Netgear Aircard 800S Huawei E5787
Product type LTE Mobile Hotspot LTE Mobile Hotspot
Category LTE Cat.9 LTE Cat.6
Chipset Qualcomm MDM9240  HiSilicon LTE Cat6 Chipset (Cortex A9 Processor)
Data rates DL 450Mbps/UL 50Mbps DL 300Mbps/UL 50Mbps
Supported 4G LTE frequency bands B1, B3, B7, B28, B40 * Huawei E5787s-33a: Band 1/3/5/7/8/20
* Huawei E5787Ph-67a: Band 1/3/5/7/8/28
WLAN 802.11a/b/g/n/ac, dual-band 2.4GHz & 5GHz 802.11a/b/g/n/ac, dual-band 2.4GHz & 5GHz
Max support users 15 users 10 users
MIMO 2 x 2 MIMO 2 X 2 MIMO
Connector for external antenna Two, TS-9 jacks Two, TS-9 jacks
Buy Antenna Optus AC800s External Antenna Huawei E5787 external Antenna
App management Netgear Aircard APP Huawei Hilink APP
SIM type Micro SIM Micro SIM
Battery 2930 mAh 3000mAh
Dimensions 110 x 68 x 16.1 mm 109.00 x 58.00 x 7.50mm
Ethernet Port No No
Datasheet download Netgear AC800S Datasheet Huawei E5787 Datasheet
User Manual Optus 4G modem 800S Manual Huawei E5787 Manual
Other features 3 band CA 2 band CA
Reviews Netgear Aircard 800s review Huawei E5787 Review
Price 199.00USD 299.00USD

Summary

From the specs table, we can see the Optus 4G WiFi modem 800s is more advanced than Telstra 4G WiFi Pro E5787 because the Optus modem AC800S could support LTE download speed up to 450Mbps while the Huawei E5787 could only reach LTE download speed to 300mbps. With Qualcomm chipset, Optus 4G modem 800s could support LTE category 9 while Telstra E5787 supports LTE Cat.6 on Huawei Hisilicon LTE Cat.6 chipset. Telstra 4G WiFI Pro could support maximum 10 users to access the internet while Optus 800s would support up to 15 users. The most interesting is that the Optus 4G WiFi modem unlocked price is 199.00USD while the unlocked Telstra 4G WiFi Pro at price of 299.00USD. So if you would buy an unlocked 4G mobile hotspot from the two, it’s obvious that the unlocked Optus 4G WiFi modem 800s is better than unlocked Telstra 4G WiFi Pro E5787.

Optus Aircard 800s VS Huawei E5786

Optus is one of the important network providers in Australia and provides LTE networks in LTE Band 3, 7, 28 and 40. It has introduced the Huawei E5786 4G Mobile hotspots to its product range and now the new product Netgear Aircard 800s available for contract. For those people who are interested in the two mobile hotspots, they may want to know what the difference is between the Huawei E5786 and the Netgear AC800S, and which one is better to buy for global use. We will review the appearance, interfaces, specs, and other features as a reference for the questions.

Huawei E5786 VS Aircard 800s Appearance and interfaces

Huawei E5786 is the first LTE Cat.6 mobile hotspot from Huawei, and the specific model for Optus is Huawei E5786s-63a. Huawei E5786 has a 2.4 inch screen to show the network provider, signal, battery, data consumed, WiFi users, SSID and password, and etc…Like other Huawei 4G pocket WiFi routers, Huawei E5786s-63a has two TS-9 connectors for external LTE antennas. The back cover of Huawei E5786 could be removed to insert the SIM card or SD card. However, the battery of Huawei E5786 is built-in and can’t be removed for exchange. The power button is on the front besides the screen while the menu button is on the top edge side of the device.

Unlike the Huawei E5786, the Netgear Aircard 800s is configured with a touchscreen, where users can do simple setting through the screen. Like other Netgear 4G Pocket WiFi routers, Optus 4G WiFi modem 800s also has two TS-9 connectors for 4G external antennas. However, the back cover of Aircard 800s could be removed for changing the battery and inserting the SIM card, but there is no SD card slot for storage sharing. The Optus AC800S has a USB 3.0 interface.



Netgear AirCard 800s VS Huawei E5786 Specs and features

From the appearance, we can’t see much difference between the two mobile hotspots. The main difference is on the touchscreen. Then let’s have a look at the Huawei E5786 specs and Optus WiFi modem 800S specs for more details comparison:

Model Netgear Aircard 800S Huawei E5786s-63a
Product type LTE Mobile Hotspot LTE Mobile Hotspot
Category LTE Cat.9 LTE Cat.6
Chipset Qualcomm MDM9240  HiSilicon LTE Cat6 Chipset
Data rates DL 450Mbps/UL 50Mbps DL 300Mbps/UL 50Mbps
Supported 4G LTE frequency bands B1, B3, B7, B28, B40 B1, B3, B7, B8, B28, B40
WLAN 802.11a/b/g/n/ac, dual-band 2.4GHz & 5GHz 802.11a/b/g/n/ac, dual-band 2.4GHz & 5GHz
Max support users 15 users 10 users
MIMO 2 x 2 MIMO 2 X 2 MIMO
Connector for external antenna Two, TS-9 jacks Two, TS-9 jacks
Buy Antenna Optus AC800s External Antenna Huawei E5786 external Antenna
App management Netgear Aircard APP Huawei Hilink APP
SIM type Micro SIM Micro SIM
Battery 2930 mAh 3000mAh
Dimensions 110 x 68 x 16.1 mm 106.00 x 66.00 x 15.90mm
Ethernet Port No No
Datasheet download Netgear AC800S Datasheet Huawei E5786 Datasheet
User Manual Optus 4G modem 800S Manual Huawei E5786 Manual
Other features 3 band CA 2 band CA
Reviews Netgear Aircard 800s review Huawei E5786 Review
Price 199.00USD 199.00USD



Summary

The specs table above shows the Optus 4G WiFi modem 800s is more advanced based on Qualcomm chipset and the support of LTE Category 9, which could achieve download speed to 450Mbps and upload speed to 100Mbps. With the 3 band Carrier Aggregation, removable battery and touchscreen, Aircard 800s seems better than Huawei 4G LTE E5786 MiFi. And they both support similar LTE Frequency bands. What’s more, the price of Aircard 800s is same as Huawei E5786 price. So if you would buy one 4G mobile hotspot from the two, Netgear Aircard 810s is recommended with higher configuration and better experience.

Netgear Aircard 800s (Optus 4G Wi-Fi Modem) Review

As Netgear’s first LTE category 9 mobile hotspot, Aircard 800s has improved configuration for LTE Advanced networks. Netgear Aircard 800s was already available for Australian network provider Optus and named it as Optus 4G WiFi Modem AC800S. With the support of LTE Cat.9 and 3 band carrier aggregation technology, Netgear AC800S could achieve download speed to 450mbps and upload speed to 50mbps, which is triple faster than that of LTE Cat.4 mobile hotspots. The AC800S Netgear could provide LTE Advanced connectivity, swift application response times, reliable connectivity and a better overall user experience for buffering data-heavy programs such as multimedia and video files.

User-friendly Touch Screen

Netgear AC800S modem is not only fast for wireless internet connection but also extremely user-friendly. Like its predecessor Netgear Aircard 810s, Aircard 800s modem has a simplified touch screen, where users can see the important information about the internet, such as the signal strength, network provider name, battery status, data consumed, WiFi SSID and password, WiFi connected user quantity, SMS, and settings etc.. The most important is that user can do simple settings through the touch screen like operating a smartphone. The Netgear Aircard 800s is well positioned to offer you a superior mobile broadband experience like never before.

Below are the features and characteristics for Netgear AC800S for reference:



Features and characteristics of Netgear Aircard 800S
Manufacturer and type Netgear AC800S
Chipset Qualcomm Cortex-A7
LTE category LTE Cat.9
Download rate up to 450 Mbit/s
Upload rate up to 50 Mbit/s
Supported LTE bands 700 (B28), 1800 (B3), 2100 (B1), 2300 (B40), 2600 (B7)
Downwards compatible with GSM, EDGE, HSDPA, DC-HSPA+
Support 3G Bands 900/2100 MHz
Support for LTE-Advanced Yes
MIMO Support Yes, 2×2 MIMO
SIM Type Micro-SIM (3FF)
Connection for external antenna Yes, two TS-9 connectors(Buy Netgear AC800S Antenna)
Network | LAN & WLAN
LAN Ports No
WLAN Standards 802.11 b/g/n/ac (dual-band 2.4 and 5 GHz)
5 GHz WLAN Support Yes
Multiple SSID/Guest WiFi Support Yes
Encryption WPS/WPA/WPA2
WLAN Hotspot Function Support maximum up to 15 users
Telephone
With integrated telephone system no
Connector for ISDN telephones no
Connection for analog telephones no
DECT no
integrator answering machine no
Others
IPv6 Dual Stack No
Battery Capacity 2930 mAh, Up to 11 hours of continuous usage
Battery Removable Yes
Battery Standby time 260 hours (typical)
Dimension 110 (L) x 68 (W) x 16.1 (H) mm
Weight 82 g (without battery), 132 g (with battery)
USB USB 3.0 compliant charging cable
Memory Card Expansion No
Release Apr 2017
Price 199.00USD for unlocked version
available at »Optus and www.4gltemall.com
File Download
Quick start guide » Download Netgear Aircard 800s spec(PDF)
Detailed manual » Download Netgear AC800s manual(PDF)



LTE Category 9 Modem

The Netgear 800S is designed to support LTE advanced network with LTE Category 9 and CA technology, which could support peak download speed to 450mbps. As a WiFi hotspot, Aircard 800 could support maximum 11 WiFi-enabled devices simultaneously. However, for many users, the carrier deployed networks have not reached LTE advanced. So Netgear Aircard 800s is a future-proof mobile router.

WLAN Standard 802.11ac with dual band

Netgear AC800S would increase network performance and reduce interference with 802.11ac and Dual-Band 2.4 GHz/5 GHz WiFi. What’s more, it could support multiple SSID and guest WiFi function, which is usually available for high-level LTE mobile hotspots. In addition, the WPN (WiFi Protected Setup) feature is available.



Other features

The Aircard 800 modem has a removable battery of 2930mAh, which could keep working for 11 hours and standby time could last for 260 hours. The battery can make Netgear 800s work like a power bank to charge other electric devices, which Netgear call it “Jump Boost” function. With the device, the Jump Boost cable is provided. Like other Netgear 4G mobile routers, Aircard 800s also has two connectors(TS-9 type) for a 4G external antenna.



Summary

Netgear Aircard 800s is a high-level mobile 4g router with the support of LTE advanced network to get fast speed connection on WLAN 802.11ac dual bands. The large battery could keep itself working for a long time and charge other terminals. The dual connectors for the external antenna are also very useful features for the people located at weak signal areas. The Netgear AC800s price is not expensive comparing with same level LTE-A mobile hotspots. If you want to buy an LTE-A mobile hotspot with good price, the Netgear AC800S is a good one to consider.



To buy Netgear Aircard 800s (unlocked), click here: https://www.4gltemall.com/netgear-aircard-800s-lte-cat-9-mobile-hotspot.html

Netgear Aircard 800s (Optus 4G WiFi Modem AC800s) Released

You may know the Netgear Aircard 810s, which had been available since the beginning of 2017. And now the more advanced Netgear Nighthawk M1 MR1100 is also available in the market. They are hot 4G mobile routers for LTE network, especially LTE advanced network. Today, we would like to recommend a new 4G pocket WiFi – Netgear Aircard 800s.

The Netgear Aircard 800s is firstly introduced to Australian network provider Optus and named it Optus 4G Wi-Fi Modem (Cat 9) AC800S. From the name, we get to know it’s a product that’s in the lower level than Netgear 810S. Since Netgear Aircard 810s supports LTE category 11, the Optus 4G WiFi Modem AC800S supports only LTE category 9. So it can’t compare to Nighthawk M1, which supports LTE-A pro networks.

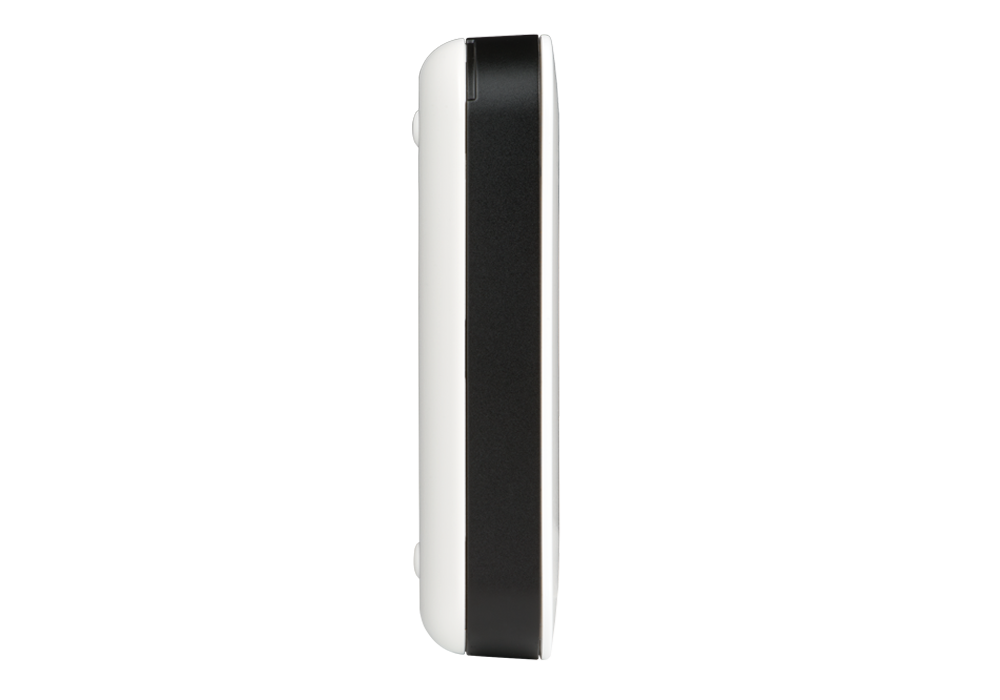

Appearance

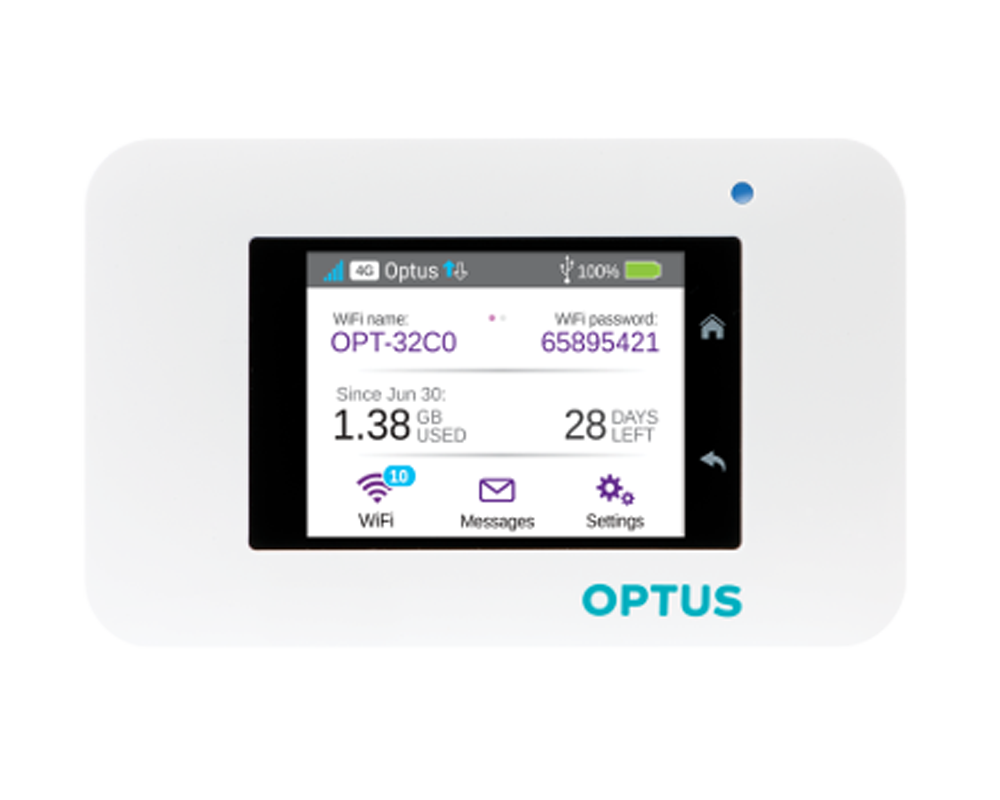

Following the classical design of the Netgear 4G Aircards, the AC800S 4G WiFi modem also has a 2.4” QVGA capacitive LCD touchscreen, where users can conveniently monitor your data usage, and manage device and network settings. For advanced features and remote management, you’ll have access to a free NETGEAR mobile app.

Two connectors for external 3G/4G LTE Antennas are at the bottom side of the Aircard 800s. They are covered by two caps, slip to see the connectors and cover. The Optus logo is located at the lower edge of the front. A home and back button on the screen for operation.



The battery of the Optus 4G WiFi modem 800s is removable and the capacity is 2930mAh, which is the same as Aircard 810s. Netgear remains the Jump Boost feature on the new Aircard 800s like Netgear AC810S, which means users can charge their smartphones or other small USB devices while the WiFi modem works. The powerful battery lasts up to 11 hours of continuous use. Simply plug it into the hotspot’s jump boost cable and start boosting from the touchscreen or the hotspot web page.

Technical Specifications

Optus 4G Wi-Fi Modem (Cat 9) AC800S features support for Category 9 LTE and 3-band Carrier Aggregation, with the ability to achieve theoretical download speeds of 450 Mbps. Since the LTE develops to Advanced or Advanced Pro, the typical product Aircard 810s supports LTE Cat11 with download speed to 600Mbps and the latest one Nighthawk M1 supports even 1Gbps for download. However, the Optus AC800S is enough for most cases in daily use. With Qualcomm MDM9240, the Optus 4G WiFi modem could support LTE FDD Band 1, 3, 7, 28, 40. It can support up to 15 wireless devices to access internet simultaneously.

Netgear AC800S also increases network performance and reduce interference with 802.11ac and Dual-Band WiFi band (2.4 GHz/5 GHz). Like its predecessors, the AC800S is small size with dimensions of 110 (L) x 68 (W) x 16.1 (H) mm. User can easily take it in pocket or handbag for outdoor activities.



From the appearance the specifications, we can conclude the Optus 4G WiFi modem is a good 4G Pocket WiFi, even though it’s not configured with the most advanced technology. But for most users, it’s enough for daily use. It keeps the typical design and practical features of the Netgear 4G Aircards. We would take further test about the performance for data rates in near future.
