Huawei B715s-23c Router Web Interface Setting Options

Here you can see the Huawei B715s-23c 4G LTE Router web interface options for settings and you can see the full list of Huawei B715 functions:

The login web address for Huawei B715 is 192.168.8.1, and the default user name and password to log in are both “admin”.

Huawei B715 web UI home page:

Huawei B715 multiple languages available:

Huawei B715 Statistics:

Huawei B715 SMS Settings:

Huawei B715 Router Online and Local Update:

Huawei B715 Settings > Quick setup > Configure WLAN Settings:

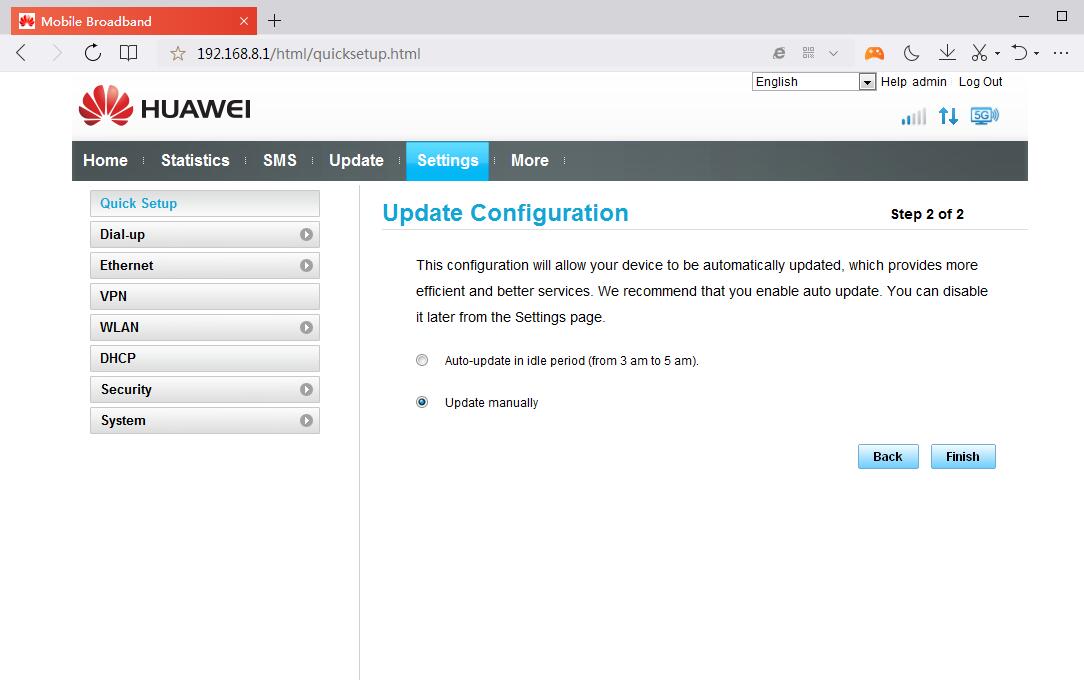

Huawei B715 Settings > Quick setup > Update Configuration:

Huawei B715 Settings > Dial-up > Connect:

Huawei B715 Settings > Dial-up > Profile Management:

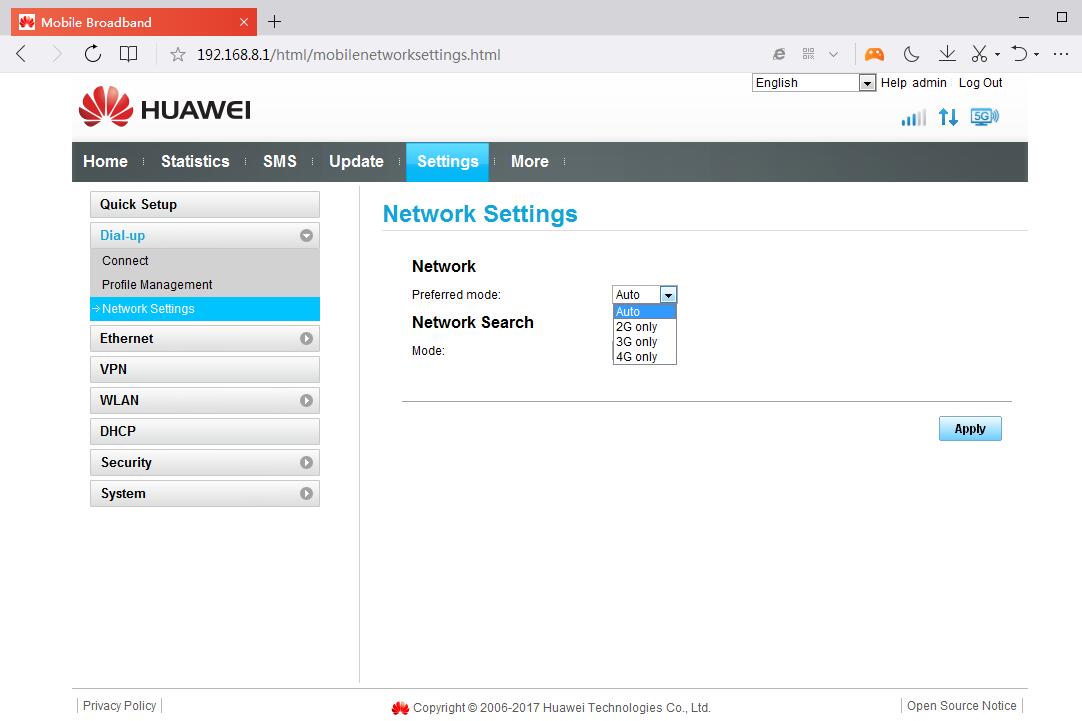

Huawei B715 Settings > Dial-up > Network Settings:

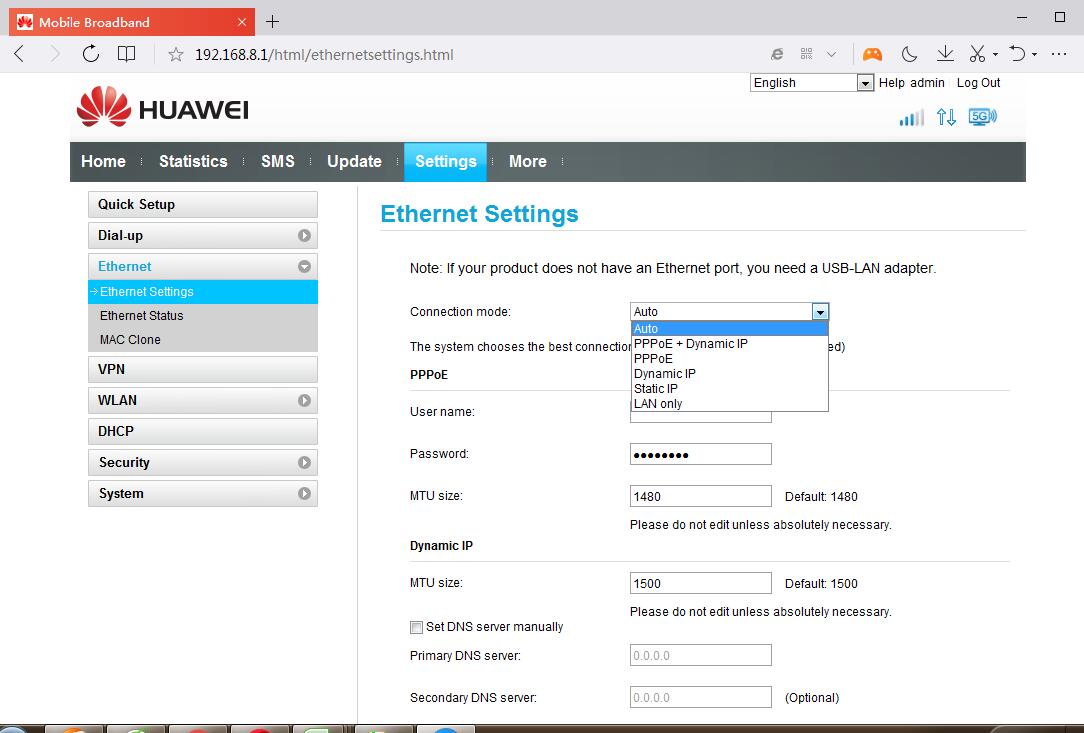

Huawei B715 Settings > Ethernet > Ethernet Settings:

Huawei B715 Settings > Ethernet > Ethernet Status:

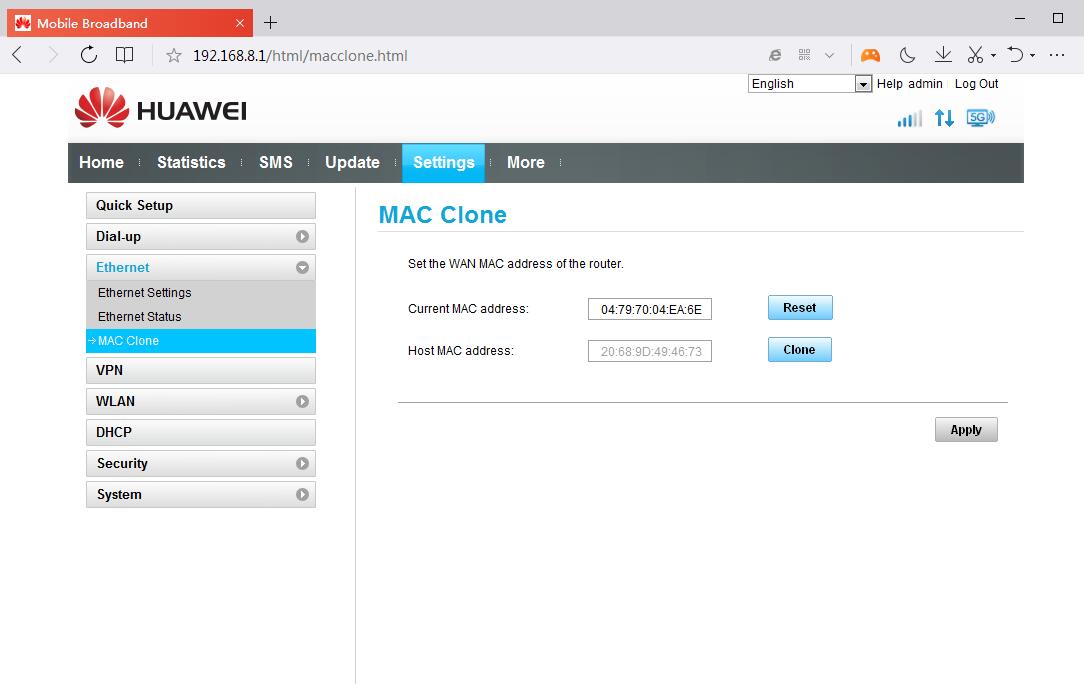

Huawei B715 Settings > Ethernet > MAC Clone:

Huawei B715 VPN Settings:



Huawei B715 Settings > WLAN > WLAN Basic Settings:

Huawei B715 Settings > WLAN > WLAN Advanced Settings:

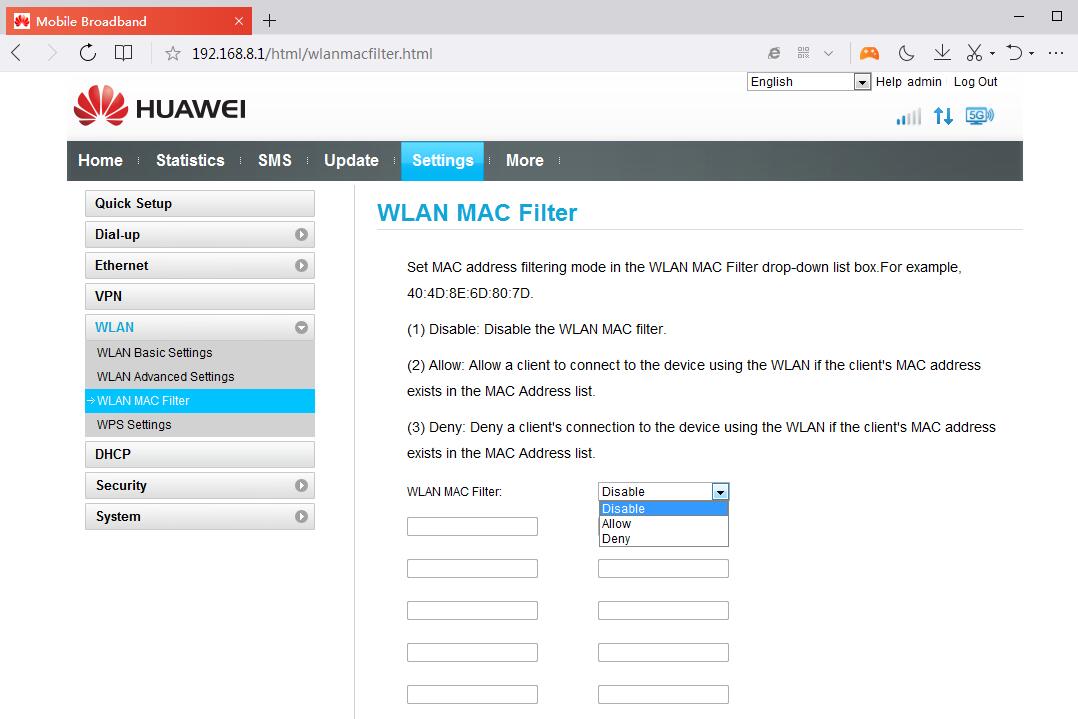

Huawei B715 Settings > WLAN > WLAN MAC Filter:

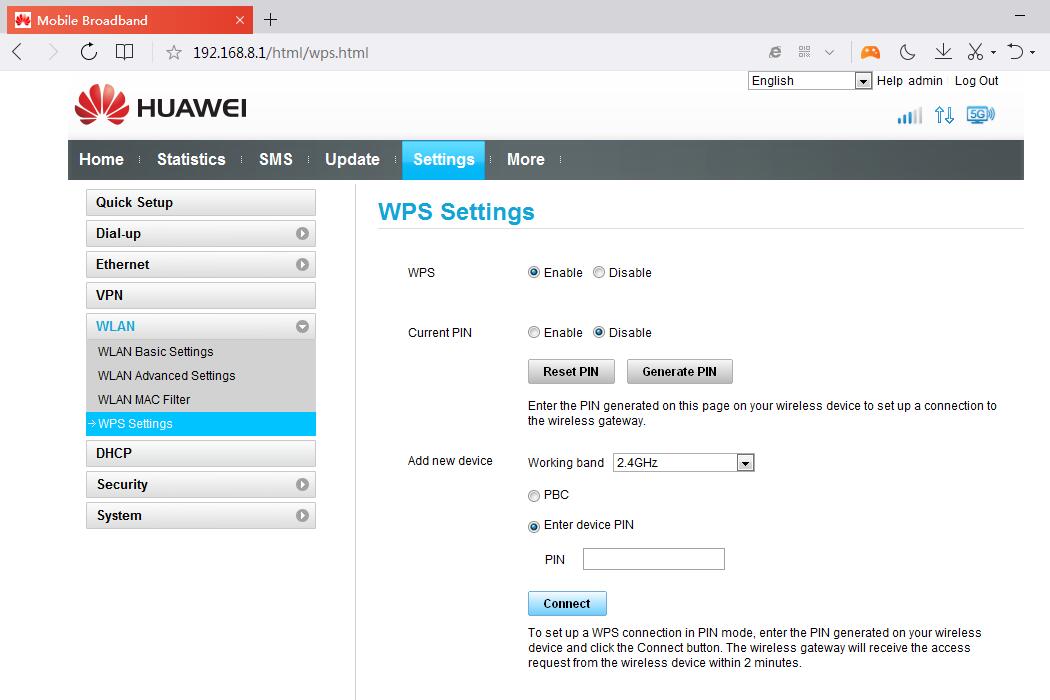

Huawei B715 Settings > WLAN > WPS Settings:

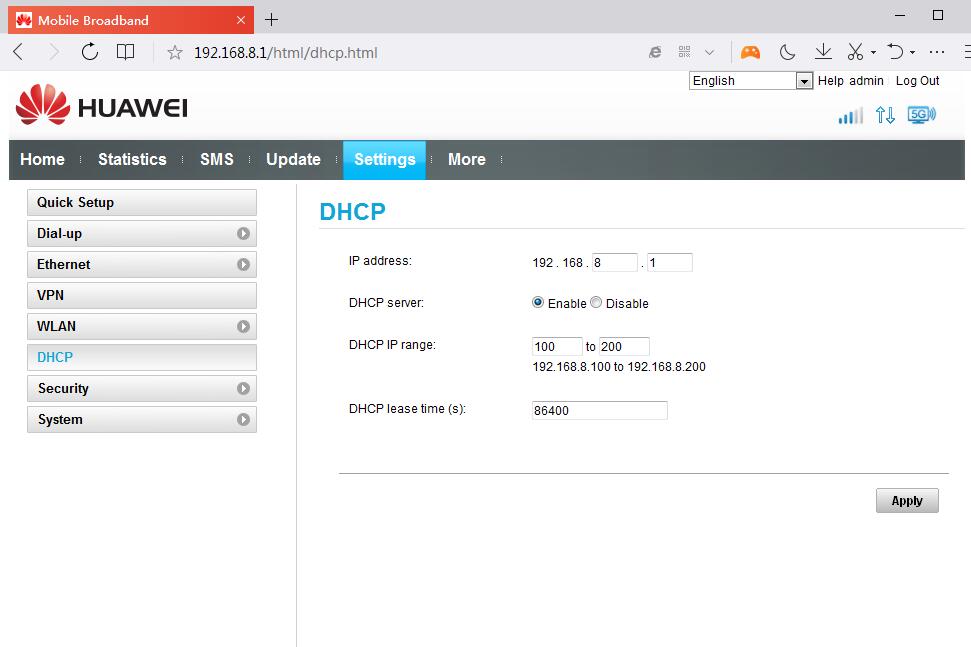

Huawei B715 Settings > DHCP Settings:

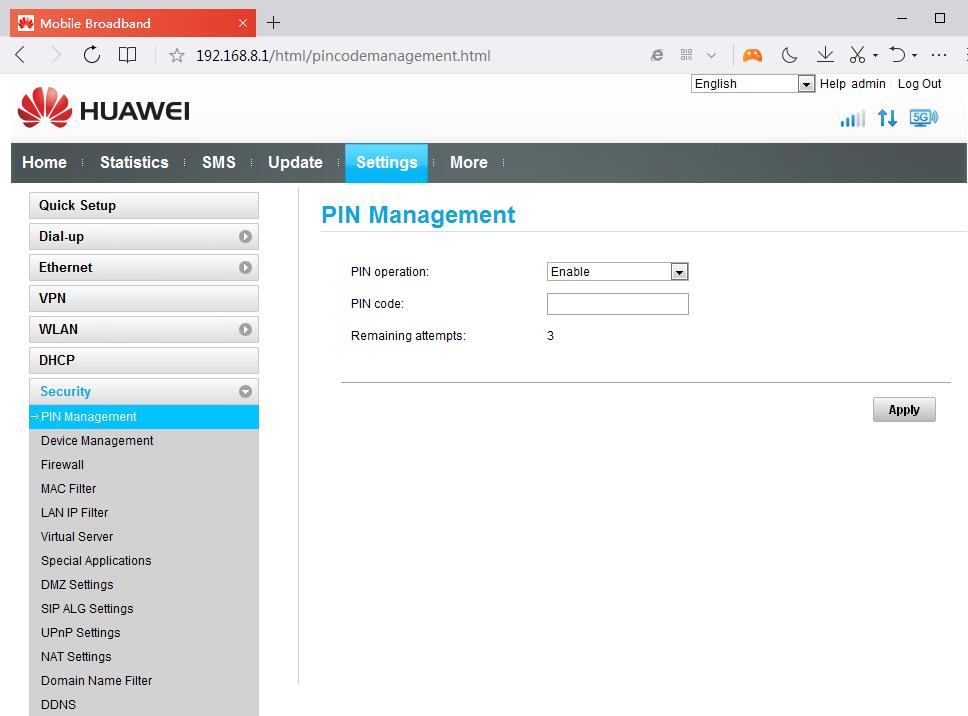

Huawei B715 Settings > Security > Pin Management:

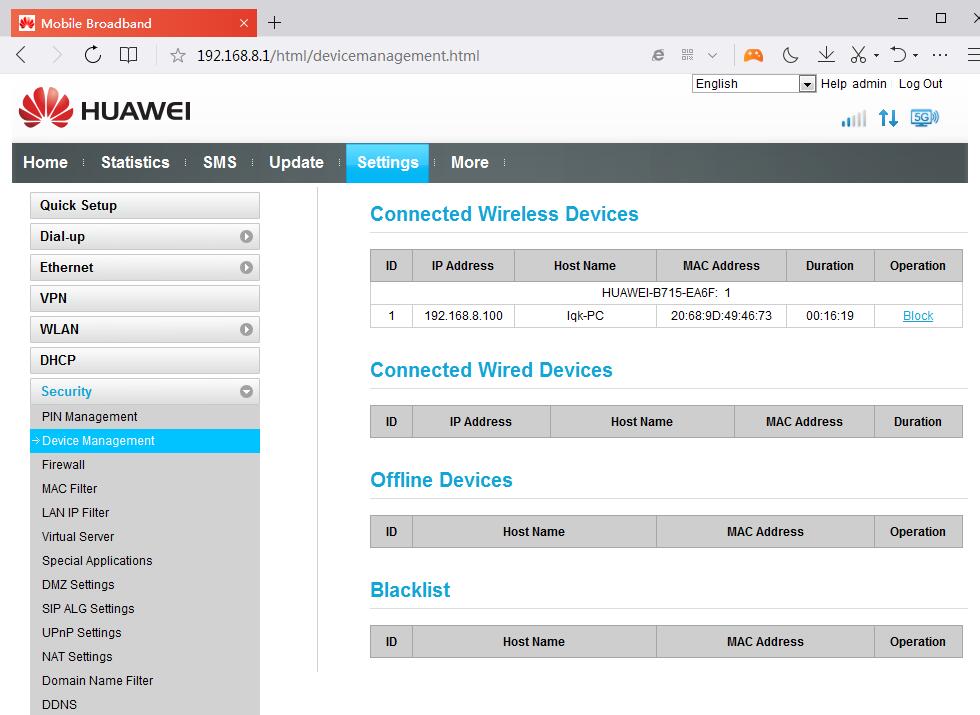

Huawei B715 Settings > Security > Device Management:

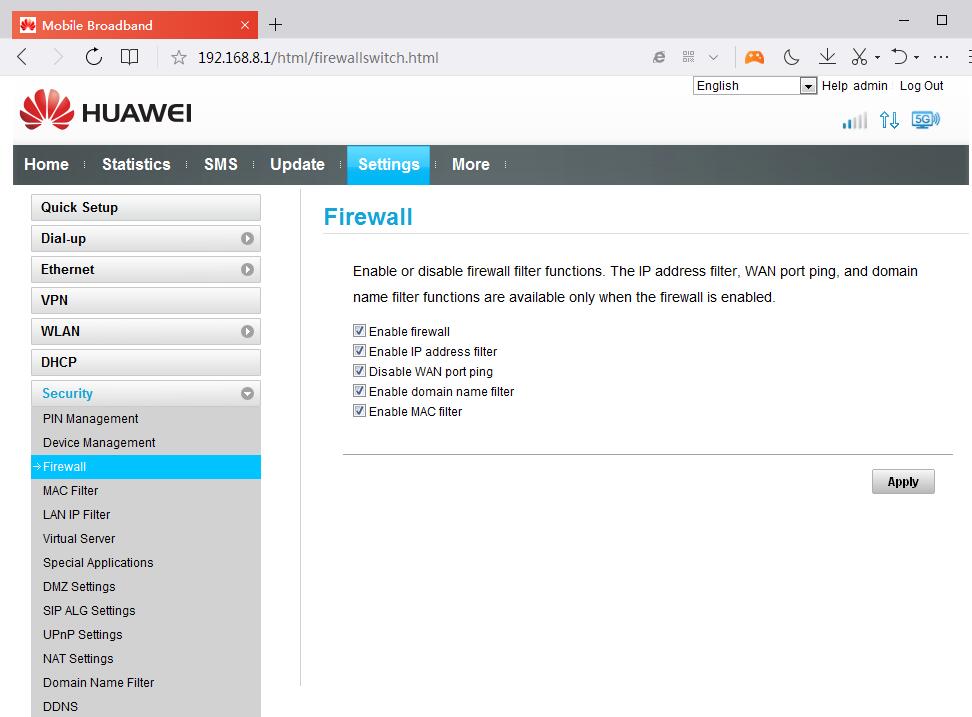

Huawei B715 Settings > Security > Firewall:

Huawei B715 Settings > Security > MAC Filter:

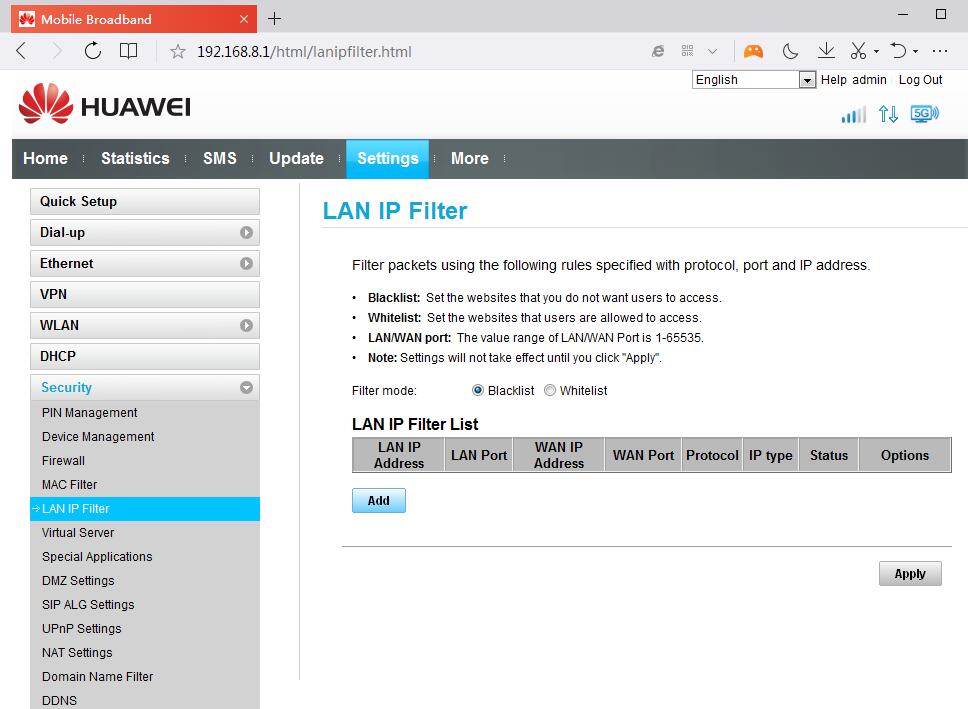

Huawei B715 Settings > Security > LAN IP Filter:

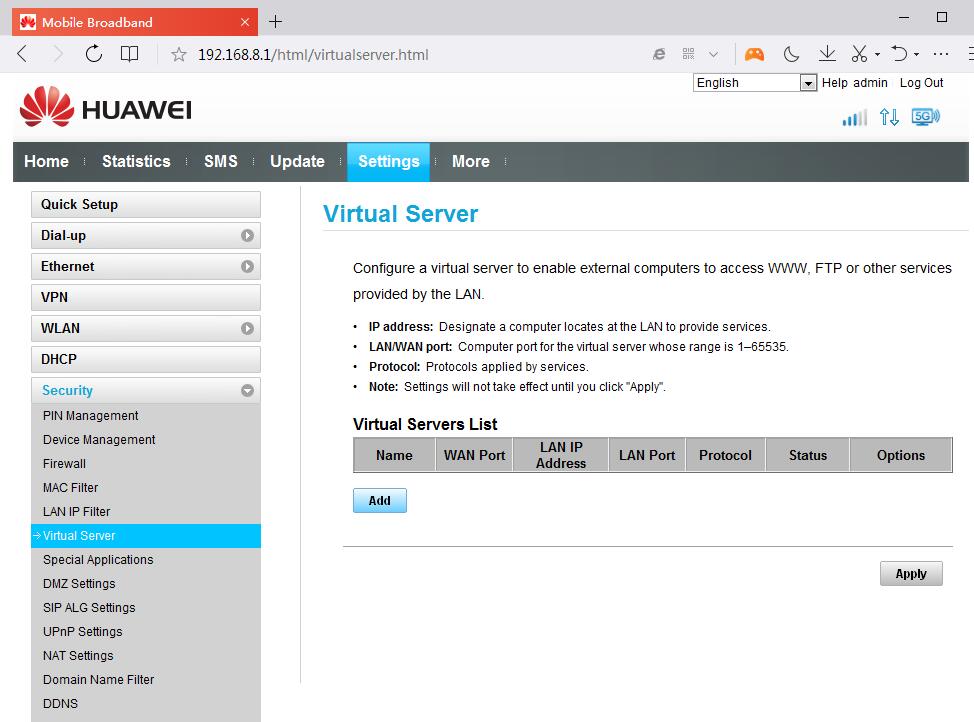

Huawei B715 Settings > Security > Virtual Server:

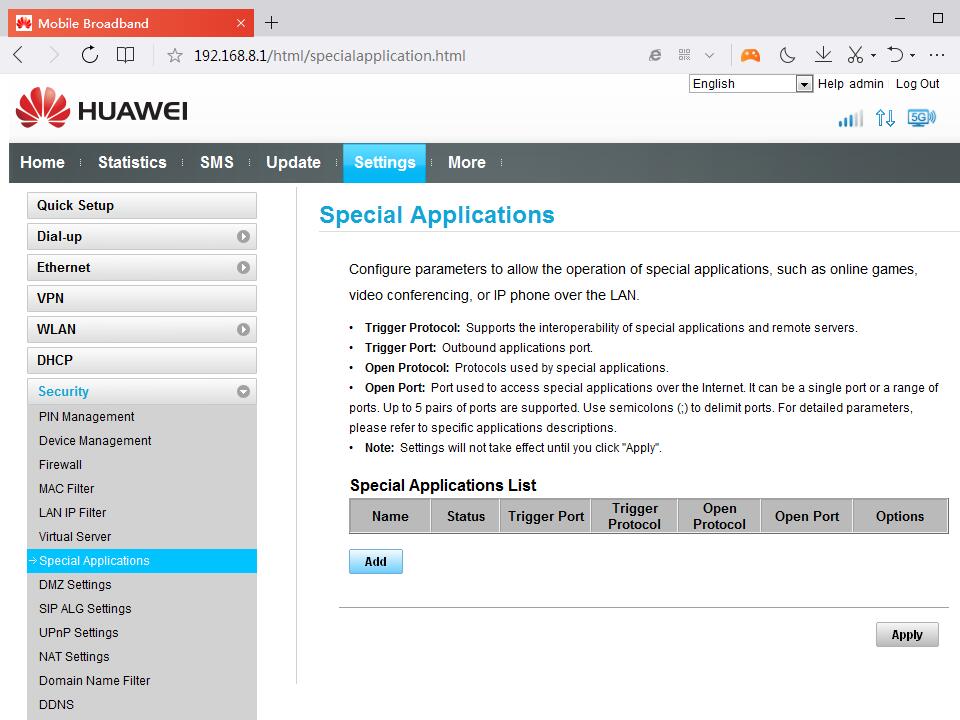

Huawei B715 Settings > Security > Special Applications:

Huawei B715 Settings > Security > DMZ Settings:

Huawei B715 Settings > Security > SIP ALG Settings:

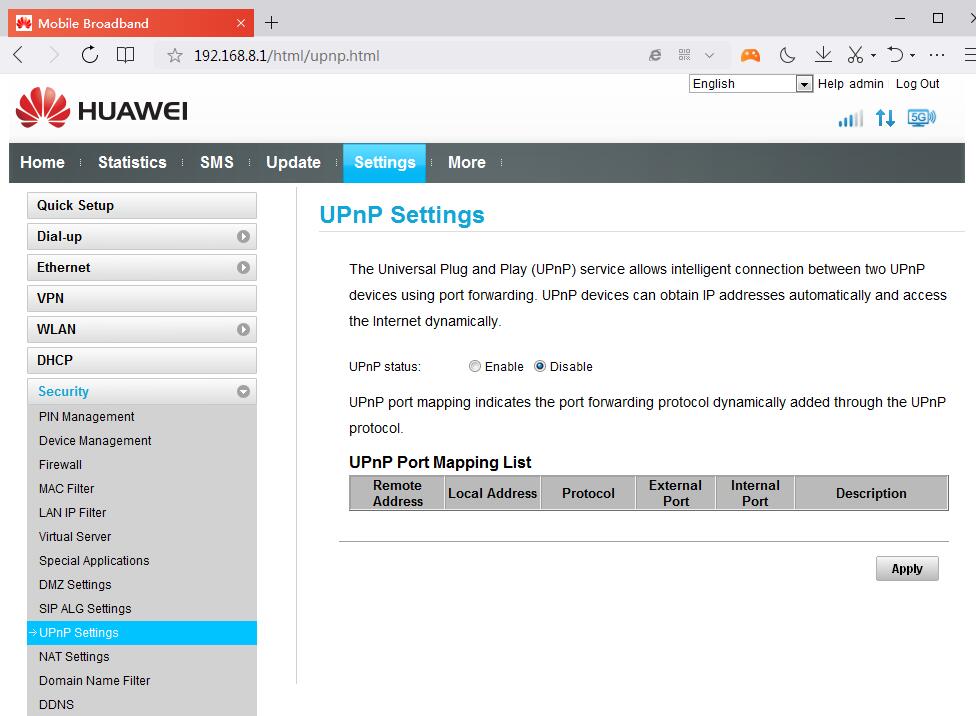

Huawei B715 Settings > Security > UPnP Settings:

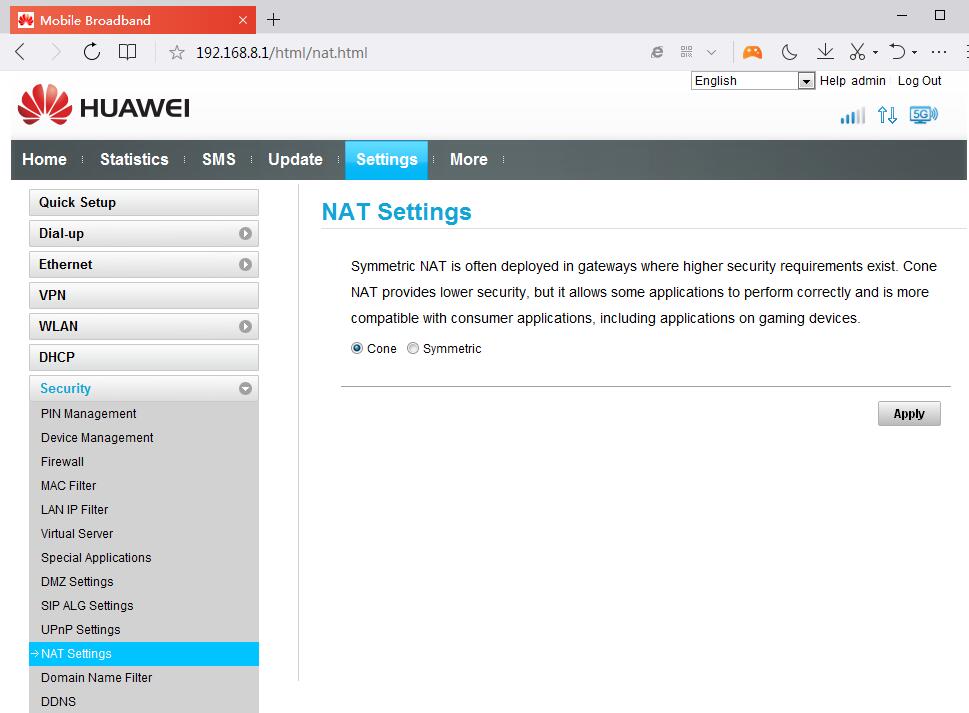

Huawei B715 Settings > Security > NAT Settings:

Huawei B715 Settings > Security > Domain Name Filter:

Huawei B715 Settings > Security > DDNS:

Huawei B715 Settings > Security > Parental Control:

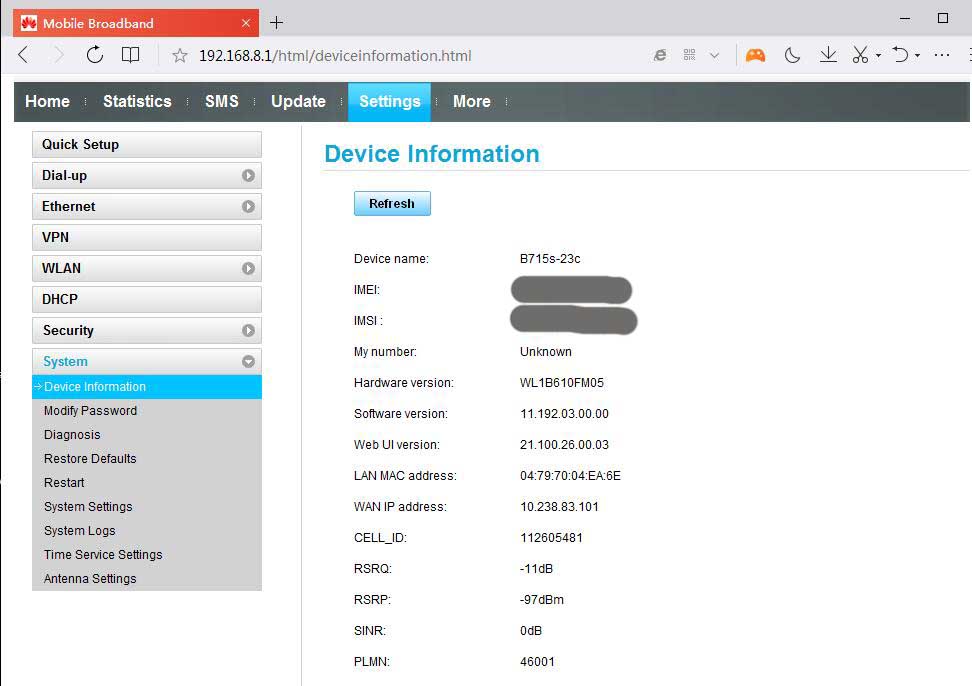

Huawei B715 Settings > System > Device Information:

Huawei B715 Settings > System > Diagnosis:

Huawei B715 Settings > System > Restore Defaults:

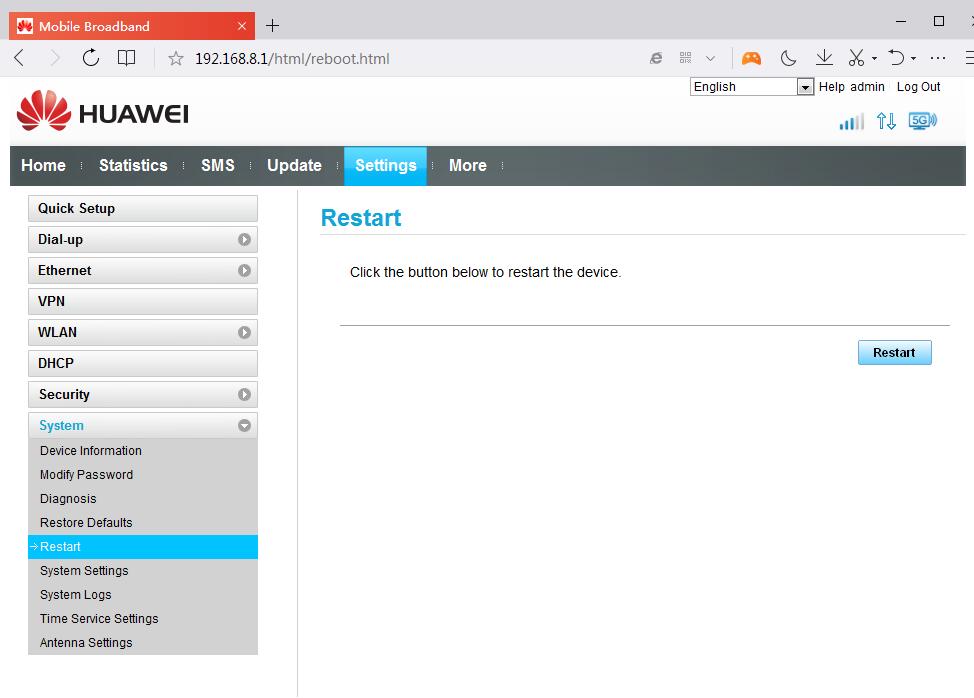

Huawei B715 Settings > System > Restart:

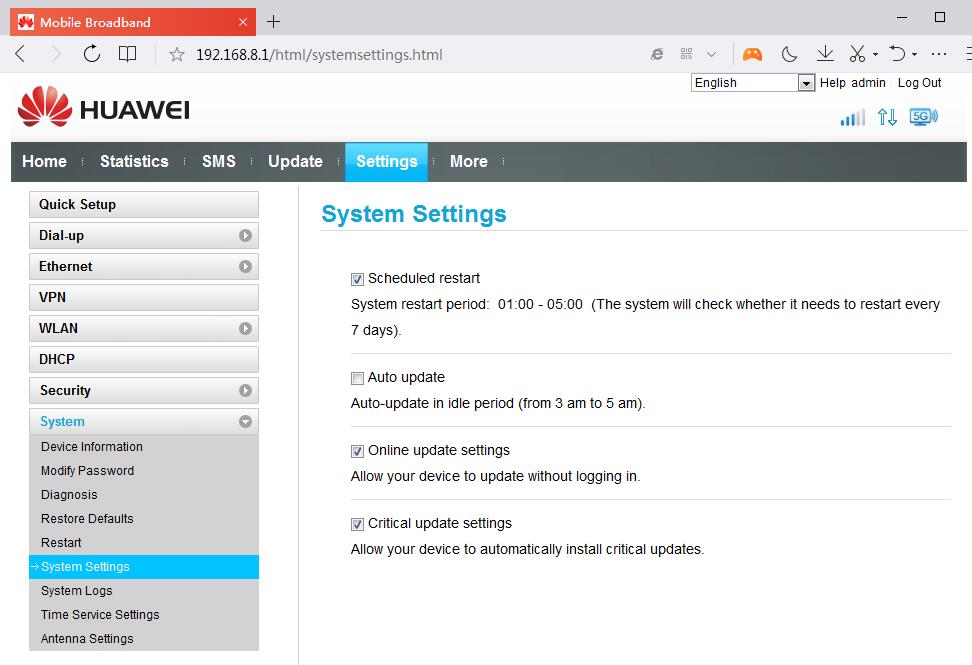

Huawei B715 Settings > System > System Settings:

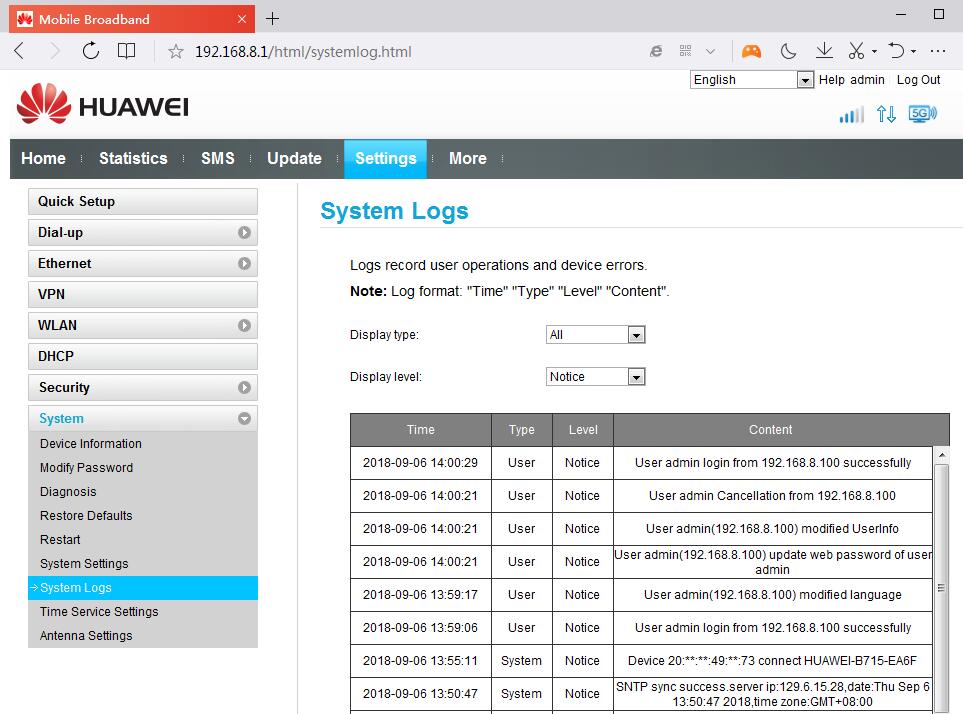

Huawei B715 Settings > System > System Logs:

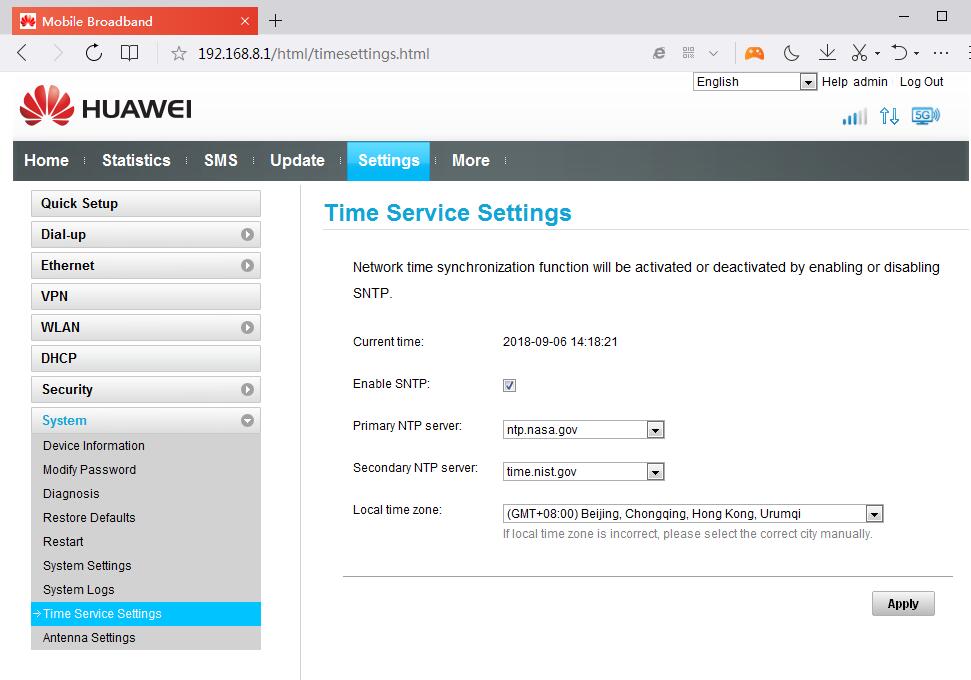

Huawei B715 Settings > System > Time Service Settings:

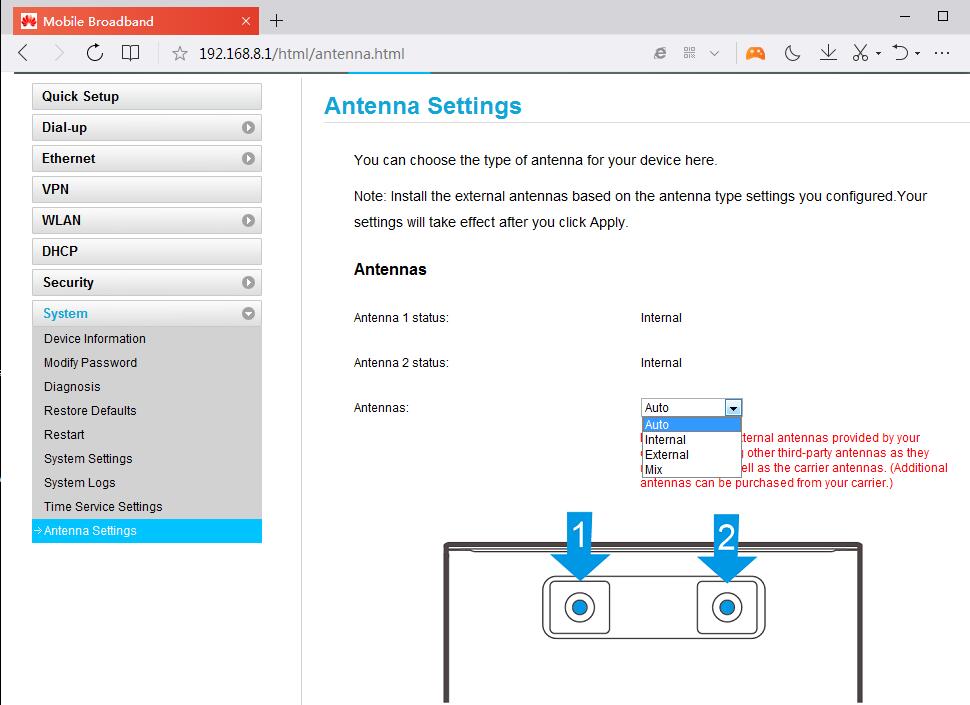

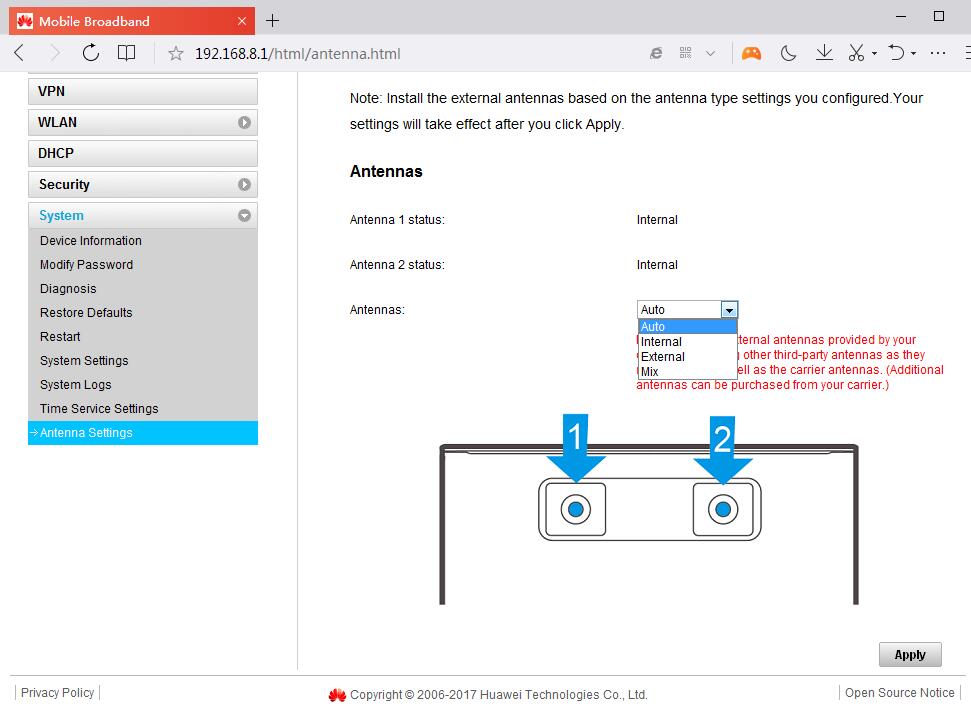

Huawei B715 Settings > System > Antenna Settings:

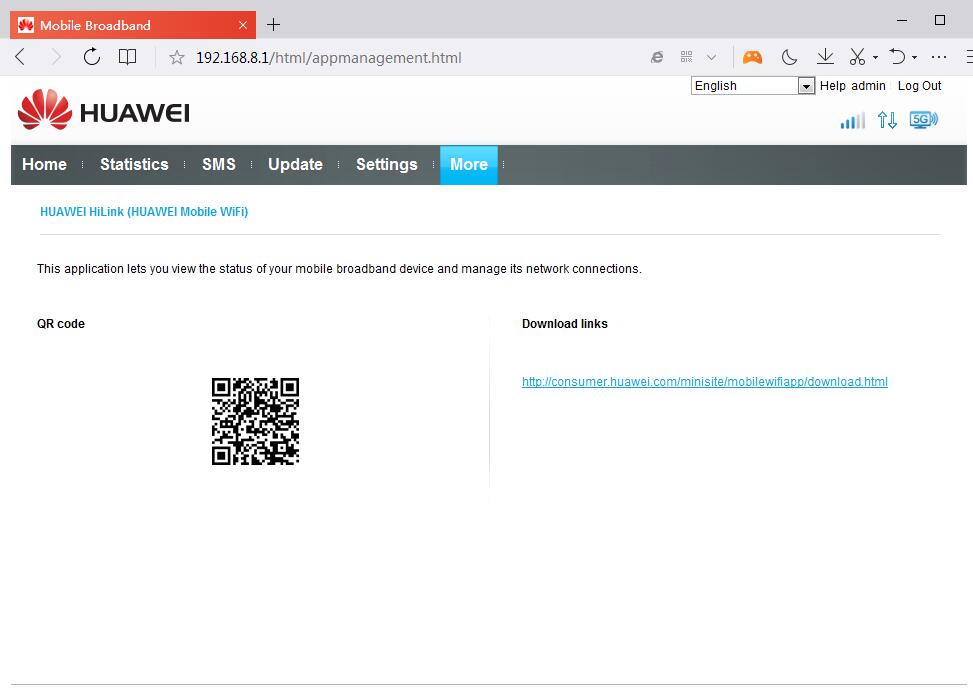

Huawei B715 APP management:

Huawei Hilink (Huawei Mobile WiFi) QR Code and download links:

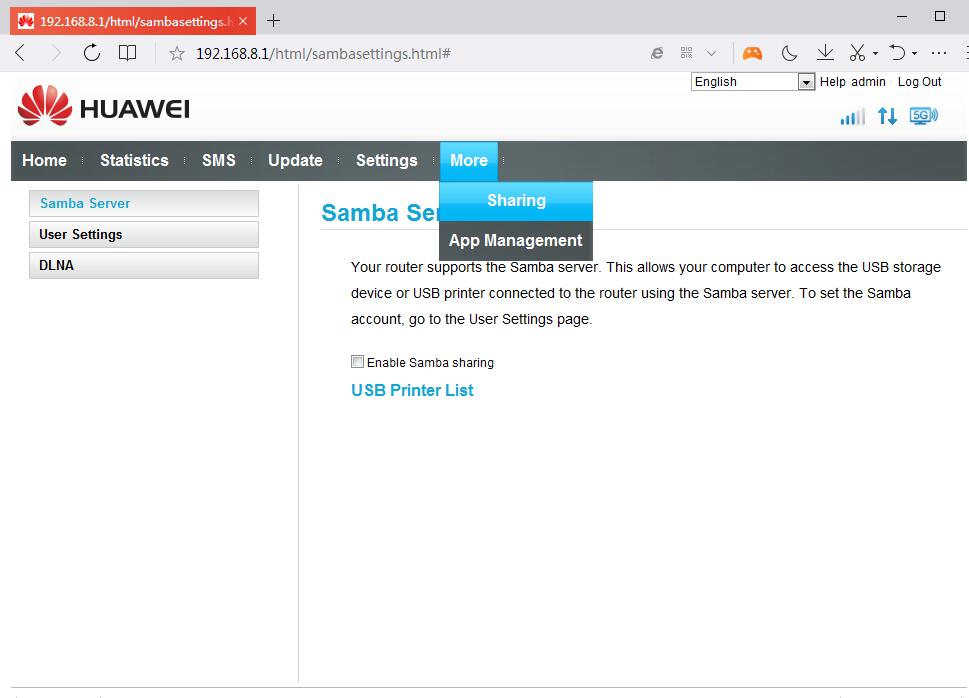

Huawei B715 Sharing > Samba Server:

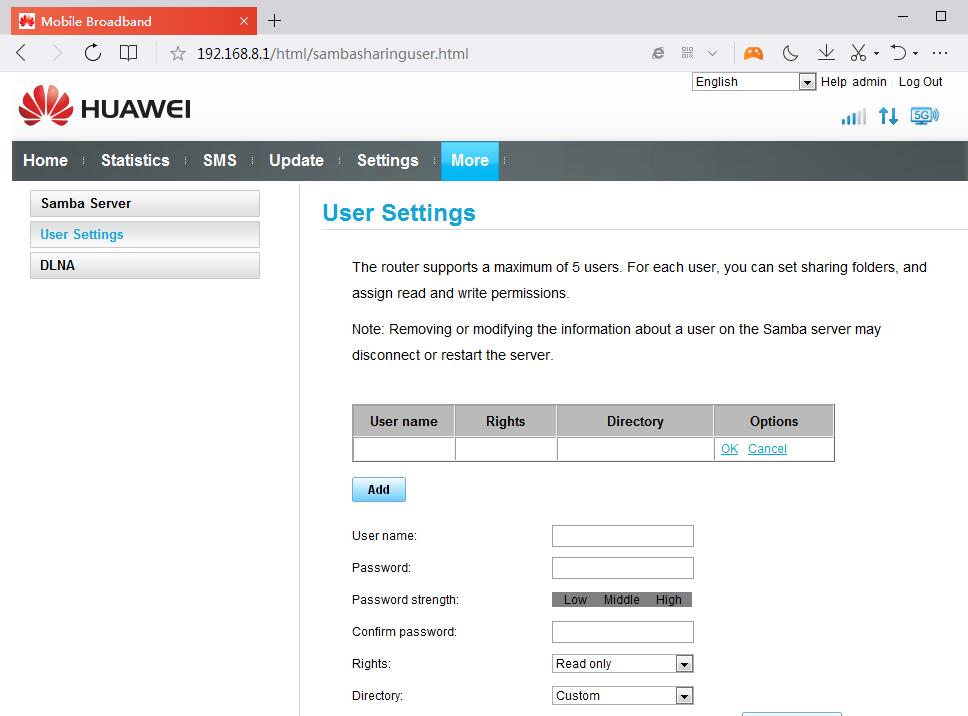

Huawei B715 Sharing > User Management:

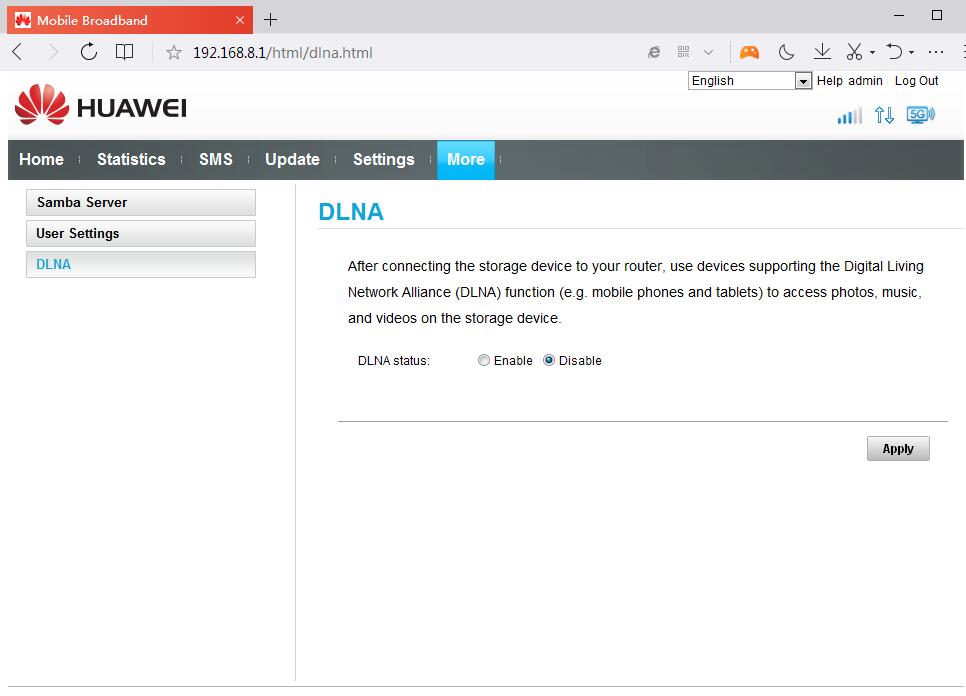

Huawei B715 Sharing > DLNA:



Huawei E5186 VS Huawei B715 LTE-A Router

With the development of LTE networks, LTE Advanced is now becoming the mainstream. So the LTE-A WiFi Routers are more and more popular, which would provide faster speed than that on LTE category 3 or LTE category 4. Huawei E5186 is the world’s first LTE-A router and was very popular in 2016 and 2017. Now the new upgraded Huawei B715 router is available. In this article, we will compare Huawei E5186 and B715 router to see what the difference between the two routers is and which one is better.

Huawei B715 VS E5186 Appearance and Interfaces

Since Huawei LTE CPE E5186 was popular in Europe and Australia in past two years, many people may know it well. Like many other Huawei stationary routers, there are few indicators on the front, such as Power, Mode, WiFi, Voice, Signal. And Huawei logo is in the middle front face. On the back, there are 4 LAN ports (one for LAN/WAN), two RJ11 Telephone port, and USB 2.0 port available. The power switch on/off button is also lined with the interfaces. Huawei Router B715 also has 4 LAN ports (One for LAN/WAN), but it has only one telephone port with the USB 2.0 port. They both use Micro SIM card size. The difference is that the SIM card of Huawei E5186 is located on the edge side while Huawei B715 router has the SIM card slot at the bottom. And they both have two SMA connectors for an external antenna. If you would buy 4G LTE Antenna with two SMA connectors, you can switch the internal antenna to external antenna in the web interface.

Huawei E5186 VS B715 Specs and variant models

The predecessor Huawei B593 LTE router has more than 10 variant models. Unlike Huawei 4G CPE B593, Huawei E5186 has two variant models: Huawei E5186s-61a and E5186s-22a, even though it’s available for two years. The Huawei B715 was presented to market since the end of 2017, so it has only one sub-model Huawei B715s-23c. In the table below, you will see the details specs and features of Huawei B715 and E5186:



Model Huawei B715s-23c Huawei E5186s-22a/E5186s-61a
Product type LTE WiFi Router LTE WiFi Router
Category LTE Cat.9 LTE Cat.6
Chipset ? HiSilicon LTE Cat6 Chipset
Data rates DL 450Mbps/UL 50Mbps DL 300Mbps/UL 50Mbps
Supported 4G LTE frequency bands LTE B1, B3, B7, B8, B20, B28, B32, B38 E5186s-22a: Band 1/3/7/8/20/38
E5186s-61a: Band 3/7/28/40
WLAN 802.11a/b/g/n/ac, dual-band 2.4GHz & 5GHz 802.11a/b/g/n/ac, dual-band 2.4GHz & 5GHz
Max support users 64 users 64 users
MIMO 4 X 4 MIMO 2 x 2 MIMO
Connector for external antenna Two, SMA-female jacks Two, SMA-female jacks
App management Huawei Hilink APP Huawei Hilink APP
SIM type Micro SIM Micro SIM
Battery NO NO
Dimensions 240mm × 448mm × 47mm 190 mm × 200 mm × 32 mm
Interfaces * 1 x power adapter port
* 3 x LAN port(45)
* 1 x LAN/WAN port (45)
* 1 x telephone port(RJ11)
* Two external LTE antenna ports (SMA-J1.5)
* One micro-SIM card slot
* 1 x USB 2.0 port		 * 3 x LAN port(45)
* 1 x LAN/WAN port (45)
* 2 x telephone port(RJ11)
* Two external LTE antenna ports (SMA-J1.5)
* One micro-SIM card slot
* 1 x USB 2.0 port
Datasheet Huawei B715 Datasheet(PDF) Huawei E5186 Datasheet(PDF)
User Manual Huawei B715 User Manual(PDF) Huawei E5186 User Manual(PDF)
Other features  VPN, VoLTE, IPv4 /IPv6 dual stack, DMZ, Port forwarding  Firewall, CS Voice, VoIP, TR069 Remote Management, HTTP Online Upgrade, QoS, USB Share, UPnP, IPV6, DLNA, Fax, Print, VPN
Price 399.00USD 259.00USD

Conclusion

It’s obvious to see that the Huawei B715s-23c router is more advanced than Huawei E5186. The Huawei E5186 supports LTE category 6 technology which could achieve download speed up to 300Mbps, which is good for most people in daily life. However, the more advanced Huawei B715 would support peak download speed up to 450Mbps, which is 1.5 times faster than that of E5186. Although we didn’t know the chipset model of Huawei B715, the Huawei B715 seems powerful on the LTE technology, including carrier aggregation, 4 x 4 MIMO, TDD&FDD networks support. So you want to buy a better Huawei LTE-A router, it’s no doubt that Huawei B715 is the right model. However, as we said, the Huawei E5186 is enough for most cases in daily life or small office. With budget price, if you want to get a decent router without a high price, Huawei E5186 is highly recommended. It’s popular in the past two years and gains high praise from thousands of users worldwide.



Huawei B715 VS Huawei B618 LTE CPE

As time goes, more and more network providers upgrade their LTE networks to LTE Advanced with the application of new LTE technology such as carrier aggregation and MIMO. Many customers want to surf at the faster speed than ever. So an LTE advanced router may be necessary for home or office. Huawei B618 and B715 are two latest popular routers for the LTE-A networks. Someone may ask: what’s the difference between Huawei B715 and B618? To buy one from them, which one is better? To answer this question, let’s have a compare of the two LTE WiFi routers.

Appearance

Huawei B715 and B618 router both could work well in Europe. Some network providers already introduced them to their contract plan. The Huawei B618 was available for EE, Telekom on the model number B618s-22d while B715 was available for LMV on the model number B715s-23c. The Huawei B715s-23c looks like the common Huawei 4G WiFi router such as Huawei E5186 or Huawei B525, but Huawei B618 looks like a cube. You may think it’s a smart home device rather than an LTE-A wireless router.



On the front of Huawei B715s-23c, there are few indicators for power, data transmission, WiFi, connected device, and signal. On the back, there are 4 RJ45 ports for LAN, one of which is for WAN/LAN. And one RJ11 port is available for connecting telephone. Huawei B618s-22d LTE router has only one port for LAN/WAN and another one for LAN only. They both have a USB 2.0 port for sharing file. Like other Huawei LTE routers, the Huawei B715s-23c has two SMA connectors for external antenna while the Huawei B618s-22d WiFi router has two TS-9 connectors for 4G external antennas. They both have the same feature that the SIM card slot is at the bottom of the body.



Technical Specifications

To know more about the technical specs of the two LTE-A router, the table below will give clear information about the chipset, category, data rates, supported frequency bands, interfaces, and prices etc..

Model Huawei B618 Huawei B715s-23c
Product type LTE WiFi Router LTE WiFi Router
Category LTE Cat.9/ Cat.11 LTE Cat.9
Chipset HiSilicon Balong 750 ?
Data rates DL 600Mbps/UL 100Mbps DL 450Mbps/UL 50Mbps
Supported 4G LTE frequency bands B618s-22d: Band 1/3/7/8/20/38
B618s-65d: 1/3/5/7/8/28/40		 LTE B1, B3, B7, B8, B20, B28, B32, B38
WLAN 802.11a/b/g/n/ac, dual-band 2.4GHz & 5GHz 802.11a/b/g/n/ac, dual-band 2.4GHz & 5GHz
Max supported users 64 users 64 users
MIMO 4 X 4 MIMO 4 X 4 MIMO
Connector for external antenna Two, TS-9 jacks Two, SMA-female jacks
Buy Antenna Huawei B618 Antenna Huawei B715 External Antenna
App management Huawei Hilink APP Huawei Hilink APP
SIM Size Micro SIM Micro SIM
Battery NO NO
Dimensions 95 × 95 × 208mm 240mm × 448mm × 47mm
Interfaces * 1 x LAN port(45)
* 1 x LAN/WAN port (45)
* 1 x telephone port(RJ11)
* 1 x USB 2.0 port		 * 1 x power adapter port
* 3 x LAN port(45)
* 1 x LAN/WAN port (45)
* 1 x telephone port(RJ11)
* Two external LTE antenna ports (SMA-J1.5)
* One micro-SIM card slot
* 1 x USB 2.0 port
Datasheet Huawei B618 Datasheet Huawei B715 Datasheet(PDF)
User Manual Huawei B618 User Manual Huawei B715 User Manual(PDF)
Other features DHCP Server, DNS RELAY and NAT, VoLTE, IPv4 /IPv6 dual stack  VPN, VoLTE, IPv4 /IPv6 dual stack, DMZ, Port forwarding
Reviews Huawei B618s-22d Review Huawei B715s-23c Review
Price/USD 449.00USD 399.00USD



Conclusion

From the appearance, we can see both the Huawei B618s-22d and B715s-23c are cool, but I personally love Huawei B618s-22d better. But if you want the WiFi router to have more Ethernet ports to connect your desktop, the Huawei B715s-23c may be better. From the specs, we can see Huawei B618s-22d support higher level LTE networks with faster LTE downlink & uplink speeds. But if you need the LTE router to work for more LTE frequency bands especially for band 32 or band 28, Huawei B715s-23c should be taken into consideration. And the Huawei B618s-22d with advanced LTE technologies would be more expensive, if you don’t care about the price, Huawei B618s-22d would be the right one for your home or office.

Huawei B715 LTE Cat.9 WiFi Router Review

As a direct successor to the popular LTE Router Huawei E5186, Huawei presents a new LTE router B715 in Poland for the network provider “Play”. As a new LTE advanced router, the Huawei B715 reaches LTE category 9 with up to 450 Mbit/s in the downlink, which is a great improvement than the predecessor Huawei E5186 router. The B715 router has four RJ45 Gigabit LAN interfaces and a USB port, as well as an integrated telephone function with RJ11 connection. And we also see it’s available in Latvia for network carrier LMT with branded version.

Huawei B715 B715c-23c

Huawei B715s-23c

The Huawei B715 is currently only available in Europe. The exact model name for the new Huawei LTE Cat9 router is B715s-23c. This designation recognizes the modem optimized for the European market; in other parts of the world, the B715 CPE may have a slightly different designation and thus different equipment with support of different frequency bands. Since the frequency ranges used in Europe are mostly same, as well as in Austria and Switzerland, the B715s-23c can also be used without problems in other Europe countries.

Huawei B715 B715c-23c

Huawei B715: 4.5G LTE Advanced Technology

The Huawei B715 has integrated LTE antennas, but also has two SMA connectors on the back for an external LTE antenna, which can be connected when needed. The LTE modem can connect up to three frequency ranges by means of carrier aggregation (channel bundling), which theoretically allows up to 450 Mbit/s in the downlink. In the uplink, up to 50 Mbps are possible via LTE. In addition to LTE, UMTS (3G) and GSM (2G) are also supported.

Huawei B715 B715c-23c

The RJ11 connector on the back panel of the Huawei B715 can be used to connect an analogue telephone, as well as a USB port for integrating a printer or storage media into the network. Wired devices can be connected via the four LAN ports. If required, one of the four LAN ports also acts as a WAN port, so the B715 can also be used with an external modem (eg fiber optic or cable modem). Wireless devices can connect to the Huawei B715s-23c via Wi-Fi, the router supports the frequency ranges around 2.4 GHz and 5 GHz.

Huawei B715 B715c-23c

Huawei B715 and B618 in comparison

Attentive readers may already have noticed, with up to 450 Mbps, the new B715 LTE router is not the fastest router model in the Huawei product range. The Huawei B618 even offers up to 600 Mbps via LTE Cat11. The Huawei B618 also has the 4 × 4 MIMO antenna technology installed, the B715 can seem only on 2 × 2 MIMO antenna technology fall back. Nevertheless, the Huawei B715 also has advantages over the B618: there are four RJ45 Gigabit LAN ports and not like the B618 with only 2 TS-9 connectors, the B715 has the SMA ports for external antenna, which is common on Huawei LTE stationary routers.

If you need the external antenna for Huawei B715 Router, we would like to recommend below the two antennas. We had tested the antennas and they can work well with Huawei B715 LTE Router:

http://www.4gltemall.com/4g-antenna-two-sma-connector.html

4G LTE Indoor Antenna (2 x SMA Connectors) for Huawei/ZTE 4G LTE Routers/Gateway/LTE CPE



If you prefer 4G outdoor antenna to get better signal, you could try below the antenna:

http://www.4gltemall.com/4g-lte-outdoor-antenna-2-x-sma-connectors.html

4G LTE Outdoor Antenna (2 x SMA Connectors) for Huawei/ZTE 4G LTE Routers/Gateway/LTE CPE



We would take full detail test for the new Huawei B715s-23c router, and compare it with the more advanced Huawei B618. Keep follow on us(twitter: 4GLTEMALL) and we will update our test report once it’s done.
