Huawei B612 VS Huawei E5186

We had introduced the Huawei E5186 and Huawei B525 Cat6 router a few months ago and now Huawei presents a new 4G Cat6 router B612 to Europe market. We had compared the Huawei B612 with Huawei B525 router and today we will check what the difference is between Huawei B612 and Huawei E5186 router.

Huawei B612 VS Huawei E5186 Appearance and Interfaces



The front of the two routers are similar, they both have a few indicators for power, mode, WiFi and signal with Huawei Logo on the front. The Huawei E5186 has one more indicator for Voice. One the back, Huawei E5186 router has 3 LAN ports and one LAN/WAN port. It also has two telephone ports and one USB port, but Huawei B612 has only one telephone port and no USB port available. The Huawei B612 router has an angled backrest which makes it stand more stable.



The SIM card slot of Huawei E5186 modem is at the edge side of the device while the Huawei B612 SIM card slot is at the bottom. The Huawei E5186 has the WiFi button and WPS button with the reset hole at the below side of the SIM card slot. The Huawei B612 power button is at the top side with WPS button. They both have two connectors for external antennas. The connector type is SMA and covered by a cap.

Huawei E5186 VS Huawei B612 Specs and Features



The two routers Huawei B612 and E5186 are both in the typical design of Huawei 4G wireless router. Then let’s compare the specifications of Huawei B612 and Huawei E5186 to see more difference:



Model Huawei B612 Huawei E5186
Product type Huawei WiFi Router with Ethernet port Huawei WiFi Router with Ethernet port
Category LTE Cat.6 LTE Cat.6
Chipset HiSilicon LTE Cat6 Chipset HiSilicon LTE Cat6 Chipset
LTE Data rates DL 300Mbps/UL 50Mbps DL 300Mbps/UL 50Mbps
Supported 4G LTE frequency bands Huawei B612s-25d:  B1/B3/B7/B8/B20/B38/B40/B41/B42/B43
Huawei B612s-51d: B2/B4/B5/B7/B41
Huawei E5186s-22a: Band 1/3/7/8/20/38
Huawei E5186s-61a: Band  3/7/28/40
WLAN 802.11 b/g/n/ac, single-band 2.4GHz 802.11a/b/g/n/ac, dual-band 2.4GHz & 5GHz
Max supported users 32 users 64 users
MIMO 4 x 4 MIMO 2 x 2 MIMO
Antenna Two, SMA-female jacks Two, SMA-female jacks
Buy Antenna Huawei B612 external antenna Huawei E5186 external antenna
App management Huawei Hilink APP Huawei Hilink APP
SIM Size Micro SIM Micro SIM
Battery NO NO
Dimensions 240 × 155 × 78 mm 190 mm × 200 mm × 32 mm
Interfaces * 3 x LAN port(RJ45)
* 1 x LAN/WAN port (RJ45)
* 1 x telephone port(RJ11)
* Two external LTE antenna ports (SMA-female)
* One micro-SIM card slot
* 1 x USB 2.0 port
* 3 x LAN port(45)
* 1 x LAN/WAN port (45)
* 2 x telephone port(RJ11)
* Two external LTE antenna ports (SMA-J1.5)
* One micro-SIM card slot
* 1 x USB 2.0 port
Datasheet Huawei B612 Datasheet(PDF) Huawei E5186 Datasheet(PDF)
User Manual Huawei B612 User Manual(PDF) Huawei E5186 User Manual(PDF)
Other features  Firewall, CS Voice, VoIP, VoLTE, IPv6/IPv4 dual stack, NAT, DHCP, VPN, DMZ, UPnP, ALG,  Firewall, CS Voice, VoIP, TR069 Remote Management, HTTP Online Upgrade, QoS, USB Share, UPnP, IPV6, DLNA, Fax, Print, VPN
Firmware download Huawei B612 firmware Huawei E5186 firmware
Driver Huawei B612 driver Huawei E5186 driver
Reviews Huawei B612 Review Huawei E5186 Review
Price/USD 399.00USD 169.00USD



Summary



From the specs table, we can see the two Huawei Cat6 routers both could achieve peak download speed up to 300Mbps. They both have two variant models now. The Huawei E5186 supports dual-band WiFi while Huawei B612 supports only a single band on 2.4GHz. Huawei E5186 router could support up to 64 wireless users while Huawei B612 supports up to 32 WiFi users. However, the Huawei B612 supports 4 x 4 MIMO technology while Huawei E5186 supports 2 x 2 MIMO. Except for the interface difference, the MIMO technology should be the key difference.



One more thing we have to mention is that perhaps the Huawei B612 is a latest new model, the price is more expensive, but we suppose the Huawei B612 price would become cheaper soon. If you want to buy a 4G LTE modem router, we think the Huawei E5186 is very good to recommend based on the price/performance ratio.

Huawei E5186 VS LTE CPE B593

As a top network solution provider, Huawei LTE Gateways are an important series of wireless products for home or office networking. Huawei B593 is the world’s first 4G LTE WiFi routers with Ethernet port and the new competitors are continuously presented to the public by Huawei in following years. Huawei E5186 wireless router is one of them. If you want to change the 3G router or ADSL connection to Huawei 4G Gateway, you may ask: what’s the difference between the Huawei B593 and Huawei E5186? Which one is better in performance? In this article, we will review the appearance, interfaces, specs and variant models to provide possible answers for you.

Huawei E5186 VS B593 Router Appearance and Interface

The Huawei 4G Router B593 and E5186 are both the 4G WiFi router with Ethernet ports in traditional router shape. On the front of Huawei B593 LTE CPE, there are some indicators for Power, WLAN, WPS, Telephone, Mode, and Signal. On the Huawei E5186, it indicates Power, Mode, WiFi, Voice, and Signal. Of course, Huawei logo is with the indicators. On the back, they both have two connectors for an external antenna. The connector type is SMA. They can use the same 4G LTE External Antenna.

On the back, there is also a line of interfaces, including 4G LAN port(one for WAN/LAN), two telephone port, one USB 2.0 port and power plug port. On the Huawei E5186, there is a power button to switch on or off the power. Huawei B593 power button is at the side of the SIM card slot. The Huawei E5186 SIM card slot is also at the body side with the WPS and WIFI button. Huawei E5186 uses Micro SIM card while the first generation LTE router B593 uses standard SIM card.

Huawei B593 VS E5186 Specs and variant models

From the specs, we can’t see much difference between the two Huawei routers. Actually, as the upgraded version of Huawei B593, Huawei E5186 almost followed the design of Huawei B593 and has just little adjustment. To meet the different LTE frequency bands worldwide, Huawei had assigned many variant models for LTE CPE B593, such as B593u-12, B593s-22, B593s-82, B593u-91, B593s-850, B593s-601, B593s-516, B595s-931 etc… Huawei E5186 also has two variant models: E5186s-22a and E5186s-61a. You can check details specs of the variant models on the product page. And below the table shows the details specs of Huawei E5186 and Huawei B593 Router for reference:



Model Huawei E5186 Huawei B593
Product type LTE WiFi Router LTE WiFi Router
Category LTE Cat.6 LTE Cat.3
Chipset HiSilicon LTE Cat6 Chipset Qualcomm MDM9200
Data rates DL 300Mbps/UL 50Mbps DL 100Mbps/UL 50Mbps
Supported 4G LTE frequency bands E5186s-22a: Band 1/3/7/8/20/38
E5186s-61a: Band  3/7/28/40
* B593u-12:  Band 1/3/7/8/20
* B593s-22:  Band 1/3/7/8/20
* B593s-82: Band 38/40
* B593s-601: Band 3/7/40
* B593s-516: LTE FDD Band 2/4/5/7/8
WLAN 802.11a/b/g/n/ac, dual-band 2.4GHz & 5GHz 802.11b/g/n, dual-band 2.4GHz
Max supported users 64 users 32 users
MIMO 2 x 2 MIMO n/a
Connector for external antenna Two, SMA-female jacks Two, SMA-female jacks
Buy Antenna Huawei E5186 external antenna Huawei B593 External Antenna
App management Huawei Hilink APP Huawei Hilink APP
SIM Size Micro SIM Stand SIM
Battery NO NO
Dimensions 190 mm × 200 mm × 32 mm 190 mm x 35 mm x 176 mm
Interfaces * 3 x LAN port(45)
* 1 x LAN/WAN port (45)
* 2 x telephone port(RJ11)
* Two external LTE antenna ports (SMA-J1.5)
* One micro-SIM card slot
* 1 x USB 2.0 port
* 3 x LAN port(45)
* 1 x LAN/WAN port (45)
* 2 x telephone port(RJ11)
* Two external LTE antenna ports (SMA-J1.5)
* One stand SIM card slot
* 1 x USB 2.0 port
Datasheet Huawei E5186 Datasheet(PDF) LTE CPE B593 Datasheet
User Manual Huawei E5186 User Manual(PDF) LTE CPE B593 Manual
Other features  Firewall, CS Voice, VoIP, TR069 Remote Management, HTTP Online Upgrade, QoS, USB Share, UPnP, IPV6, DLNA, Fax, Print, VPN DHCP, Firewall, URL filter, LAN MAC filter, IP Filter, DMZ, Port forwarding
Reviews Huawei E5186 Review Huawei B593 Router Review
449.00USD 259.00USD 189.00USD



Huawei E5186 VS B593 Speed Test

If you want to know the real speed performance of the two router, check the Huawei E5186s-22 vs Huawei B593u-12 speed test:

https://youtu.be/qUHrShcHQvI





Summary



From the specs table, we can see the Huawei E5186 is more advanced which could support up to 300Mbps download speed thanks to LTE Cat.6 with 2 x 2 MIMO and carrier aggregation technology. The speed is almost three times faster than the speeds of Huawei B593 router. The interfaces features are very similar in the two Huawei LTE Router with Ethernet ports. Huawei E5186 WiFi router could support maximum of up to 64 users, which is the double quantity of that on Huawei B593 router. So if you want to buy a fast 4G router, the Huawei E5186 would be the right one.



The advantage of Huawei B593 router is that it has many variant models for more LTE frequency bands, if you are looking for a router for specific bands, you may find one in LTE B593 variant models. And the Huawei B593 price is much cheaper than the price when it’s first available in the market. And it’s also much cheaper than Huawei E5186 price. If you don’t have enough budgets for Huawei LTE CPE E5186, then Huawei B593 would provide 4G speed for your internet access.

Huawei B618 VS Huawei E5186

Since Huawei LTE router WiFi is very popular in the global market, if you want to buy a 4G SIM router for home or office, you may consider Huawei LTE routers such as Huawei B618 or predecessor model Huawei E5186. But what’s the difference between the Huawei E5186 router and B618 CPE? And which one is better to buy? The questions would be answered in this article.

Huawei E5186 VS B618 CPE Appearance and Interfaces

If you had used a Huawei 4G router, you may know the Huawei E5186 router, which is the best seller of 4G LTE-A router from Huawei. It’s in white color and in a traditional router design. On the front, there are five indicators on the front for Power, Mode, WiFi, Voice, and Signal. On the back, there are 4 Ethernet Ports for LAN (One is for LAN & WAN), two Telephone ports and one USB 2.0 port. The Huawei B618 4G LTE router is the latest new LTE advanced Pro router, which is in a new design of a Cube in white color. It also has some indicators on the front vertically for Signal, Power, Status, LAN, WiFi, Mode, among which the WPS buttons are available.



The Huawei B618 Router also has the Ethernet ports on the back, but there are only two LAN port, one of which is for both LAN and WAN. Only one telephone port is available below the Ethernet port. The USB 2.0 port is above the Ethernet port. The power button and connectors for external 4G Antennas are available on the Ethernet and USB ports. The connector type is TS-9. If you need Huawei B618 antenna, you must buy an LTE Antenna with two TS-9 connectors. The Huawei E5186 also has two connectors for an external antenna on the back covering a long cap. The connector type is SMA-Female. If you need Huawei E5186 external antenna, you must buy an LTE antenna with two SMA connectors.



Huawei B618 VS E5186 Specs and Variant models

If you had some blogs about 4G LTE devices, you may know that the many LTE devices have variant models to support various LTE frequency bands over the world. To support these LTE bands, Huawei E5186 router has two variant models E5186s-22a and E5186s-61a. The Huawei B618 also has two sub-models: B628s-22d and B618s-65d. From the appearance, we can only see the difference is in the design and Ethernet ports. Regarding the data transmission performance and other features, you may check the table for Huawei E5186 specs and Huawei B618 specs:



Model Huawei B618 Huawei E5186
Product type LTE WiFi Router LTE WiFi Router
Category LTE Cat.9/ Cat.11 LTE Cat.6
Chipset HiSilicon Balong 750 HiSilicon LTE Cat6 Chipset
Data rates DL 600Mbps/UL 100Mbps DL 300Mbps/UL 50Mbps
Supported 4G LTE frequency bands Huawei B618s-22d: Band 1/3/7/8/20/38
Huawei B618s-65d: 1/3/5/7/8/28/40
Huawei E5186s-22a: Band 1/3/7/8/20/38
Huawei E5186s-61a: Band  3/7/28/40
WLAN 802.11a/b/g/n/ac, dual-band 2.4GHz & 5GHz 802.11a/b/g/n/ac, dual-band 2.4GHz & 5GHz
Max supported users 64 users 64 users
MIMO 4 X 4 MIMO 2 x 2 MIMO
Connector for external antenna Two, TS-9 jacks Two, SMA-female jacks
Buy Antenna Huawei B618 Antenna Huawei E5186 external antenna
App management Huawei Hilink APP Huawei Hilink APP
SIM type Micro SIM Micro SIM
Battery NO NO
Dimensions 95mm × 95mm × 208mm 190 mm × 200 mm × 32 mm
Interfaces * 1 x LAN port(45)
* 1 x LAN/WAN port (45)
* 1 x telephone port(RJ11)
* 1 x USB 2.0 port
* 3 x LAN port(45)
* 1 x LAN/WAN port (45)
* 2 x telephone port(RJ11)
* Two external LTE antenna ports (SMA-J1.5)
* One micro-SIM card slot
* 1 x USB 2.0 port
Datasheet Huawei B618 Datasheet Huawei E5186 Datasheet(PDF)
User Manual Huawei B618 User Manual Huawei E5186 User Manual(PDF)
Other features DHCP Server, DNS RELAY and NAT, VoLTE, IPv4 /IPv6 dual stack  Firewall, CS Voice, VoIP, TR069 Remote Management, HTTP Online Upgrade, QoS, USB Share, UPnP, IPV6, DLNA, Fax, Print, VPN
Reviews Huawei B618s-22d Review Huawei E5186 Review
Price/USD 449.00USD 259.00USD



Summary



From the specs table, we can see the Huawei B618 router is more advanced than unlocked Huawei E5186 router. LTE CPE B618 could support downlink speed up to 600Mbps with 4 x 4 MIMO technology, which is almost double faster than that of Huawei E5186. The two variant models of the two routers cover similar LTE frequency bands, which mean they are designed for same areas. However, the advanced Huawei B618 has fewer Ethernet interfaces than Huawei E5186. If you would use the router with more than 2 devices through Ethernet port, you’d better select the Huawei E5186 as a home or office router. However, if you use the router mainly through WiFi, the Huawei B618 router would be very good. Since the two Huawei Routers would provide wireless internet for up to 64 users, Huawei B618 provider fast internet speeds.

Of course, the Huawei B618 provide faster speeds with advanced technologies, the price would be more expensive than Huawei E5186 router. So if you don’t have enough budget for B618 CPE, the Huawei 5186 is recommended, in our test, it’s good enough for most cases in our daily life.

Huawei E5186 VS Huawei B715 LTE-A Router

With the development of LTE networks, LTE Advanced is now becoming the mainstream. So the LTE-A WiFi Routers are more and more popular, which would provide faster speed than that on LTE category 3 or LTE category 4. Huawei E5186 is the world’s first LTE-A router and was very popular in 2016 and 2017. Now the new upgraded Huawei B715 router is available. In this article, we will compare Huawei E5186 and B715 router to see what the difference between the two routers is and which one is better.

Huawei B715 VS E5186 Appearance and Interfaces

Since Huawei LTE CPE E5186 was popular in Europe and Australia in past two years, many people may know it well. Like many other Huawei stationary routers, there are few indicators on the front, such as Power, Mode, WiFi, Voice, Signal. And Huawei logo is in the middle front face. On the back, there are 4 LAN ports (one for LAN/WAN), two RJ11 Telephone port, and USB 2.0 port available. The power switch on/off button is also lined with the interfaces. Huawei Router B715 also has 4 LAN ports (One for LAN/WAN), but it has only one telephone port with the USB 2.0 port. They both use Micro SIM card size. The difference is that the SIM card of Huawei E5186 is located on the edge side while Huawei B715 router has the SIM card slot at the bottom. And they both have two SMA connectors for an external antenna. If you would buy 4G LTE Antenna with two SMA connectors, you can switch the internal antenna to external antenna in the web interface.

Huawei E5186 VS B715 Specs and variant models

The predecessor Huawei B593 LTE router has more than 10 variant models. Unlike Huawei 4G CPE B593, Huawei E5186 has two variant models: Huawei E5186s-61a and E5186s-22a, even though it’s available for two years. The Huawei B715 was presented to market since the end of 2017, so it has only one sub-model Huawei B715s-23c. In the table below, you will see the details specs and features of Huawei B715 and E5186:



Model Huawei B715s-23c Huawei E5186s-22a/E5186s-61a
Product type LTE WiFi Router LTE WiFi Router
Category LTE Cat.9 LTE Cat.6
Chipset ? HiSilicon LTE Cat6 Chipset
Data rates DL 450Mbps/UL 50Mbps DL 300Mbps/UL 50Mbps
Supported 4G LTE frequency bands LTE B1, B3, B7, B8, B20, B28, B32, B38 E5186s-22a: Band 1/3/7/8/20/38
E5186s-61a: Band 3/7/28/40
WLAN 802.11a/b/g/n/ac, dual-band 2.4GHz & 5GHz 802.11a/b/g/n/ac, dual-band 2.4GHz & 5GHz
Max support users 64 users 64 users
MIMO 4 X 4 MIMO 2 x 2 MIMO
Connector for external antenna Two, SMA-female jacks Two, SMA-female jacks
App management Huawei Hilink APP Huawei Hilink APP
SIM type Micro SIM Micro SIM
Battery NO NO
Dimensions 240mm × 448mm × 47mm 190 mm × 200 mm × 32 mm
Interfaces * 1 x power adapter port
* 3 x LAN port(45)
* 1 x LAN/WAN port (45)
* 1 x telephone port(RJ11)
* Two external LTE antenna ports (SMA-J1.5)
* One micro-SIM card slot
* 1 x USB 2.0 port
* 3 x LAN port(45)
* 1 x LAN/WAN port (45)
* 2 x telephone port(RJ11)
* Two external LTE antenna ports (SMA-J1.5)
* One micro-SIM card slot
* 1 x USB 2.0 port
Datasheet Huawei B715 Datasheet(PDF) Huawei E5186 Datasheet(PDF)
User Manual Huawei B715 User Manual(PDF) Huawei E5186 User Manual(PDF)
Other features  VPN, VoLTE, IPv4 /IPv6 dual stack, DMZ, Port forwarding  Firewall, CS Voice, VoIP, TR069 Remote Management, HTTP Online Upgrade, QoS, USB Share, UPnP, IPV6, DLNA, Fax, Print, VPN
Price 399.00USD 259.00USD

Conclusion

It’s obvious to see that the Huawei B715s-23c router is more advanced than Huawei E5186. The Huawei E5186 supports LTE category 6 technology which could achieve download speed up to 300Mbps, which is good for most people in daily life. However, the more advanced Huawei B715 would support peak download speed up to 450Mbps, which is 1.5 times faster than that of E5186. Although we didn’t know the chipset model of Huawei B715, the Huawei B715 seems powerful on the LTE technology, including carrier aggregation, 4 x 4 MIMO, TDD&FDD networks support. So you want to buy a better Huawei LTE-A router, it’s no doubt that Huawei B715 is the right model. However, as we said, the Huawei E5186 is enough for most cases in daily life or small office. With budget price, if you want to get a decent router without a high price, Huawei E5186 is highly recommended. It’s popular in the past two years and gains high praise from thousands of users worldwide.



Huawei B525 VS Huawei E5186

As the top telecom equipment supplier, Huawei 4G Routers are very popular in many countries based on high quality and stable performance for internet connection. And we also find some huawei wireless routers have similar specifications, i.e they support same LTE category, same LTE download speed etc. For example, we found Huawei had presented the LTE cat.6 routers such as Huawei B525 (new model) and E5186 (old model). Those who want to buy Huawei 4G LTE cat6 routers may feel confused which one to choose because they are too similar. Today, we will have a look at what’s the difference between the two Huawei LTE routers.

Huawei E5186 and B525 are both 4G LTE Wireless router supporting LTE CAT6, which means they both could achieve LTE download speed to 300mbps and upload speed to 50mbps technically. As the old model, huawei E5186 had been available for almost two years and very popular in Europe and Australia. The Huawei B525 was just available from second half of 2017.



Here now in the market, the most popular model for the two Huawei routers are Huawei B525s-23a and Huawei E5186s-22a. They cover the most common LTE frequency bands in Europe, Middle East and Asia. With support of LTE band 32, B525s-23a is more up to date than E5186. However, they both work for LTE-A network and have Ethernet interfaces for WAN & LAN. And as the typical feature for 4G LTE Routers, they both have the SIM card slot. So they are both 4G WiFi Routers with SIM card slot and Ethernet port.

Appearance



Huawei B525 is the most recent desktop LTE gateway from Huawei, which is in littler size than E5186. With the measurement of 163 mm x 52 mm x 226 mm, there are control, Wi-Fi, flag quality, organize mode and LAN/WAN marker at the front board of the B525. At the back interface of the B525, there are 4 x RJ45 ports for WAN/LAN, 1 x RJ11 port, 1 x USB port and power connector plug. Furthermore, there are additionally two connectors for external antennas. Regarding the Huawei E5186, the dimension is 194 x 177 x 64 mm, and there are control, arrange mode, WiFi, voice and flag pointers on the front board. Two SMA connectors for external antenna, 4 x RJ45 ports for WAN/LAN, 2 x RJ11 ports for VoLTE and phone, 1 x USB port for capacity and power connector plug are located in a line.

From the appearance, we could get little contrast from the B525 and E5186, one is with 1 RJ45 port, and the other is with 2 RJ45 port. If you prefer black color, Huawei B525 has black color available. Huawei E5186 has only white color available.



From the appearance, we can’t see what the real difference is. To be perfectly honest, for single client who needs to purchase Huawei LTE CPE, they both could do well. One could fully replace the other.

Technical Features



The band bolt is supported by Huawei B525, which can’t discover in LTE CPE E5186. That implies you could run the B525 to a particular frequency bands from the setup menu of web UI. This is a helpful element when the administrator wants to select preferred network frequency to surf internet. Huawei B525 supports L2TP VPN setting. At the point when L2TP VPN is enabled, the throughput execution will back off, the maximum speed can up to 50Mbps (subject to network environment). On this point, Huawei E5186 doesn’t have such feature.





For all Huawei LTE CPEs, there are diverse sub-variant models for various network frequency bands and carriers. For Huawei E5186, there are two adaptations accessible: E5186s-61a (Band 3/7/28/40) and E5186S-22a (Band 1/3/7/8/20/38).  The new model Huawei B525, provides the most well known sub-models B525s-23a (Band 1/3/7/8/20/32/38), in addition to Huawei B525s-65a (Band 1/3/5/7/8/19/20/26/28/38/40/41 FDD1700/1400mhz) and Huawei B525s-95a (supported LTE bands unknown now). From the sub variants, we can see that the B525 seems more powerful on the LTE bands support than that of E5186, which means Huawei B525 could be used more widely with more network providers.



Conclusion



From the appearance and technical features, we can there are some difference between the Huawei E5186 and B525. However, for most users, the different features may not influence the usage of the Huawei LTE router. And even Huawei B525 is newer model with new features, the Huawei B525 price is not as good as Huawei E5186, which is also an important factor for users to consider. But if you need to purchase band 32 CPE, Huawei B525 is the right model. In summary, huawei B525 is newer with more feature and powerful, but with higher price. Huawei E5186 has decent functions for common use, if you don’t have specific requirements, the lower price may be attracting.

Huawei B525s-23a 4G LTE Router Review

The Huawei B525s-23a router was presented to public since 2016 and now is particularly popular with many network operators. In Austria and Germany, the Huawei B525 router is offered together with various fixed network alternatives with LTE data radio. It is a network device that can handle 4G speeds up to category 6 and supports all relevant frequencies in Europe and Aisa. The specifications of Huawei B525 is very similar to Huawei E5186s-22a. A telephone system is integrated and, if required, external SMA antennas can be mounted to improve signal reception.

Huawei B525 B525s-23a



Features and Specifications of Huawei B525s-23a
Manufacturer and Model Number: Huawei B525s-23a
chipset: HiSilicon Cat. 6
LTE Category: Cat. 6
Download rate: 300 Mbps
Upload rate: 50 Mbps
Supported LTE Bands: 800, 900, 1500, 1800, 2100, 2600 MHz
Backwards compatible with: HSPA+ (42.2 Mbps), UMTS, Edge, GPRS, GSM
Support for LTE-Advanced: Yes
MIMO Support: No
Connection for external antenna: Yes, sma connector(Buy Huawei B525 LTE Antenna)
Telephone
With integrated telephone system: Yes
Connection for ISDN phones: No
Connection for analogue phones: Yes, 1
DECT: No
integrated answering machine: Yes
Network | LAN & WLAN
LAN ports: 4
WLAN standards: WLAN 802.11 a/b/g/n/ac
5 GHz WLAN support: Yes
Encryption: WEP, WPA, WPA2
WLAN hotspot function: Yes
Others
Battery pack: no battery available
Dimension: 226 x 163 x 52 mm
USB: a port (2.0)
Memory card expansion: No
release: 2017
Price: about 200 euros (as of February 2018)
available at: »On www.4gltemall.com
More Information
Manual as PDF » Download the manual here (PDF)
Detailed data sheet: » Download the Specs here (PDF)



 Huawei B525 B525s-23a



Huawei B525s-23a – fast internet without landline

The Chinese manufacturer Huawei is known to equip not only the network operators directly, but also the end customers with its routers. For example, the B525s-23a can be found in Austria as HomeNet by T-Mobile and in Germany as HomeSpot by O2. The Huawei B525 was released in the late summer of 2016 and reached the German market about a year later. Even today, the Huawei B525 LTE Router should satisfy many users as a replacement for a DSL, cable, or fiber interface, after all, up to 300 Mbit/s are offered in the download. The actual speed varies depending on the operator and location of the router. The internet connection requires a micro SIM card. If this is plugged in, the data can be transferred over the WLAN. The 5 GHz frequency is supported, which means that the bandwidth of the 802.11ac module with a maximum of 1.6 Gbit/s. A wired connection to end devices such as notebooks and desktop computers is also possible thanks to four LAN ports up to 1 Gbit/s.

Huawei B525 B525s-23a interfaces





Other features of the Huawei B525s-23a

The WPS function ensures comfortable and secure networking with the home network, and a firewall also monitors Internet traffic. Remote administration can also be done via a web interface. Alternatively, the smartphone and the app belonging to the B525s-23a Hi-Link is used for the maintenance. The telephone jack can be used to connect landline devices managed by the router with the integrated telephone system. This also has an answering machine, calls can also be made via VoIP. Furthermore, a Cortex-A9 processor is used, which takes care of the administration of the data transfers.

Huawei B525 B525s-23a label

A great feature is the ability to use two external SMA antennas to be able to infect the Huawei B525s-23a. This optimizes the signal performance of the router. The antennas are not included and must be purchased separately. Last but not least, the USB socket is mentioned, which can connect to the memory sticks. Unfortunately, this interface is not very fast due to the outdated 2.0 standard.

Huawei B525 B525s-23a sim card slot



Huawei B525s-23a – Design and Availability

The Huawei B525s-23a router is available in white and black colors, the body was designed restrained. The router is presented in a rectangular design with a gray bar, which has various indicators. Thus the operating mode and the LTE signal strength can be read. All ports are on the back of the B525s-23a. Here now, the unlocked Huawei B525s-23a is available on www.4gltemall.com . If you need the Huawei E5186 router or latest Huawei B618 router, you can also get from 4gltemall.com.

Huawei B525 B525s-23a power and WPS button



Huawei E5186s-22a 4G LTE Cat6 WiFi Router

The Huawei E5186s-22a router is a 4G LTE category 6 router available from Huawei, replacing the popular predecessor LTE CPE B593s-22. As a large Chinese company that offers high quality network equipment, Huawei wireless routers has gain great reputation worldwide, and they also supply smartphones in very good quality too.

The Huawei E5186 4G wireless router was really the top model for making a broadband connection at home at least last year. Firstly, it has the latest 4G standard with the support of the frequencies in Europe (LTE FDD 800/900/1800/2100/2600MHz TDD 2300/2600Mhz) and especially the 4G+ LTE CAT6. This means you can use the Huawei E5186s-22a with any network providers in all the European countries. Of course, if the network is compatible, you can also use the Huawei E5186s-22a in most of the Asian and African countries, including Middle East areas.

SONY DSC



You can also attach an external 4G antenna to the Huawei E5186s-22a router because it has 2 SMA jacks. We had tested two external antennas (Indoor & Outdoor) for Huawei E5186 router to recommend for users who may need them:

Huawei E5186S-22a Indoor LTE antenna:

http://www.4gltemall.com/4g-antenna-two-sma-connector.html

4G LTE Indoor Antenna (2 x SMA Connectors) for Huawei/ZTE 4G LTE Routers/Gateway/LTE CPE



Huawei E5186S-22a Outdoor LTE antenna:

http://www.4gltemall.com/4g-lte-outdoor-antenna-2-x-sma-connectors.html

4G LTE Outdoor Antenna (2 x SMA Connectors) for Huawei/ZTE 4G LTE Routers/Gateway/LTE CPE

This E5186 router also allows you to have the latest WIFI standard, and in particular to be compatible dual band 2.4GHz and 5Ghz, the latest 802 ac is also supported.

It allows you to use an analog phone to make and receive calls from the inserted SIM card. This is crucial because operators are reluctant to use the SIM card only as a modem! It has a multilingual interface that you manage from your computer to configure your network quickly and easily (DHCP, VOIP, Firewall, consumption management etc), and it is also compatible with the mobile application Huawei Mobile WiFi for a configuration via smartphone.

You can share your 2G/3G/4G/4G+ connection in WiFi (WiFi support maximum up to 32 devices) or Ethernet (4 RJ45 sockets). In the package, there is an Ethernet cable, a user manual and an electrical adapter.

Huawei E5186 router has an on/off button which is easy to turn it off when you do not use it. Likewise, a WPS button (to connect wifi easily) is to enable/disable WiFi.

With the LTE advanced technologies, this Huawei E5186s-22a is currently not at high price comparing with the latest Huawei B618S-22d LTE router, which supports more advanced LTE technologies. Huawei E5186 4G Router is now in a really budget price, which will have good price and higher performance for faster surfing speed at home or office.



HUAWEI B315s-22 4G LTE WiFi Router Review

The Huawei B315s-22 is a 4G router for family use. Like its predecessor Huawei B593s-22, it allows sharing the 4G connection in WIFI with a valid SIM card from a network operator, and of course, the SIM card must has a data plan. Thus, in places where ADSL is of poor quality but 4G is available, it would be necessary to replace the ADSL and use the new Huawei B315s-22 with new contract from 4G network provider.

Huawei B315 4G Router

Huawei B315s-22 Technical Specifications

  • Height: 186mm Width: 139mm Depth: 46mm Weight: 275gram
  • Frequency bands: LTE/UMTS/GSM (4G LTE-FDD 800/900/1800/2100/2600MHz 4G LTE-TDD 2600MHz). However, frequency 700MHz is supported on band 28.
  • LTE Speed: Donwload up to 150Mbps / Upload up to 50Mbp
  • 2 SMA antenna jacks
  • 1 USB port
  • Wifi 802.11b/g/n
  • Supported number of wireless connections: Up to 32 devices
  • 4 Gigabit LAN ports/1 WAN/LAN port
  • 1 RJ11 port
  • Normal SIM card (no micro SIM or nano SIM, you may need an adapter if you use Micro SIM or Nano SIM.)

Huawei B315 4G Router2

Configuring Huawei B315s-22

The configuration of this type of router does not pose any difficulty. It is normally enough to insert the SIM, start the router, connect to the address http://192.168.1.1 after having connected to the B315 router’s WIFI (name and wifi key available behind or below) and then launch the quick configuration in the interface (login name and password are both default as “admin”).

This router is also controllable using the mobile application HUAWEI HiLink available on android or ios. User can manage the router settings from smartphones and Pads.

Huawei B315 LTE CPE

Our Opinion about Huawei B315

The Huawei B315s-22 is an excellent 4G router. The main difference with the HUAWEI B593s-22 is that it has better 4G reception, it only has one RJ11 port, it does not support the SIP protocol and it does not allow the router to use only the 4G. Thus, if the 4G/LTE signal is not very powerful, it switches itself in 3G or worse in 2G. However, you can connect an external 4G/LTE antenna to change this situation. You can connect a phone using the RJ11 jack (you need a T/Rj11 adapter if you have an old handset) to make calls using the sim card number 06 or 07 (If it is not just a data card).

For most cases, the Huawei B315s-22 is enough for most users with the support of LTE download speed to 150mbps and upload speed to 50mbps. But if there is LTE advanced or LTE-A pro network available, it’s also better to try the latest Huawei E525, Huawei E5186 or Huawei B618 Routers. We suppose one of them would definitely meet your demand for home or office wireless network.

Huawei B525s-23a 4G LTE Cat6 Router Review

The manufacturer HUAWEI has launched the router B525-23a in 2017, and now the latest 4G router B525 is already available for some network providers in Europe, Middle East and Asia, which is to replace the same excellent predecessor router Huawei E5186s-22a.

Huawei B525 B525s-23a

The dimensions of Huawei B525 router are 22.6cm long, 16.3cm high and 5.3cm thick. Its weight is 370 grams. These features mean it’s not a portable pocket WiFi router. It supports the 4G+ LTE category 6 on the bands:  1/3/7/8/20/32/38 (800/900/1500/1800/2100/2600MHz, TDD 2600MHz). No 700MHz(Band 28), so check first whether this router is right for your areas before you pick up, i.e. your network providers broadcasts on the above bands, which will make sure you can use this new router normally without any problem.

Huawei B525 B525s-23a

The proposed WIFI is a/b/g/n/ac on dual bands 2.4Ghz and 5Ghz and supports up to 64 devices connected over 250m range. (Warning: these are the data of the manufacturer in optimal conditions; the range of the wifi depends on the thickness of the walls and other parameters.) At the back of the wireless router, there are 4 ports for LAN, of which 1 port is for LAN/WAN. An external 4G/LTE antenna can be connected via the 2 SMA ports. We recommend below two antennas for Huawei B525 for indoor and outdoor use:

Huawei B525 B525s-23a interfaces

An RJ11 port allows you to connect a phone on it to make calls via the inserted SIM card. (Provided you do not force the router only on the 4G so that it can switch to other voice frequencies and that your SIM package is not only in data) A USB 2.0 port connects a hard drive or printer. The SIM card must be in the MICRO SIM format.

It has a multilingual interface that you manage from your computer to configure your network quickly and easily (DHCP, VOIP, FIREWALL, consumption management etc) but is also compatible with the mobile application Huawei Mobile WiFi for a configuration via smartphones or Pads.

Huawei B525 B525s-23a label



The Huawei B525s-23a Router 4G has an on/off button which is to turn it off when you do not use it. Likewise, a WPS button (to connect wifi easily) and 5 LEDs will allow you to know the intensity of your 4G reception. This HUAWEI B525s-23a is the latest flagship of the brand’s 4G routing modems. At a relatively affordable price (compared to smatphones for example), you will be able to get rid of a deficient ADSL network and multiply your connection speed.

 Huawei B525 B525s-23a power and WPS button

Regarding what’s the real difference between Huawei B525 router and Huawei E5186 router, we will check later. Actually, they are too similar technically, we don’t know why the new B525 is presented when the Huawei E5186s-22a is good enough for current LTE cat6 networks.

Huawei E5180 Cube for Congstar Homespot Test

At the IFA, congstar presented its first mobile phone tariff at the beginning of September, which also officially foresees the use of Telekom’s LTE network. However, the offer can only be used in a certain place, for example, to have a broadband internet connection in the caravan, at the campsite or in the student residence.

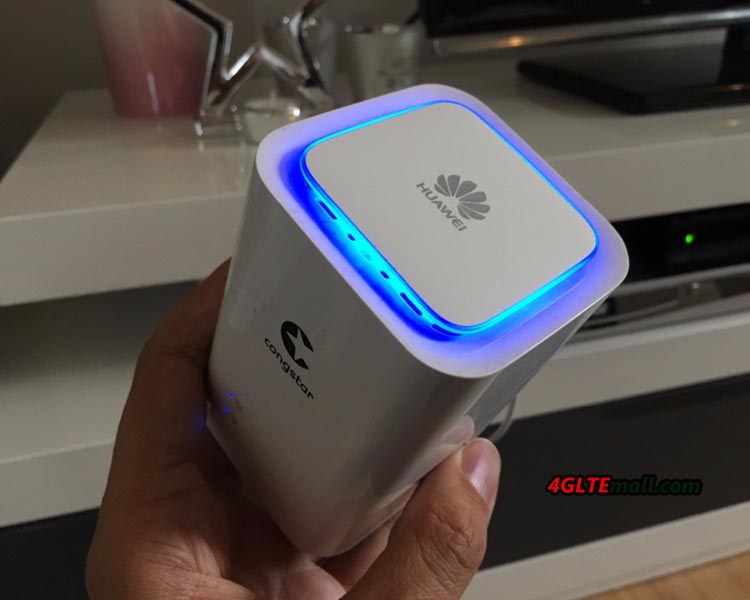

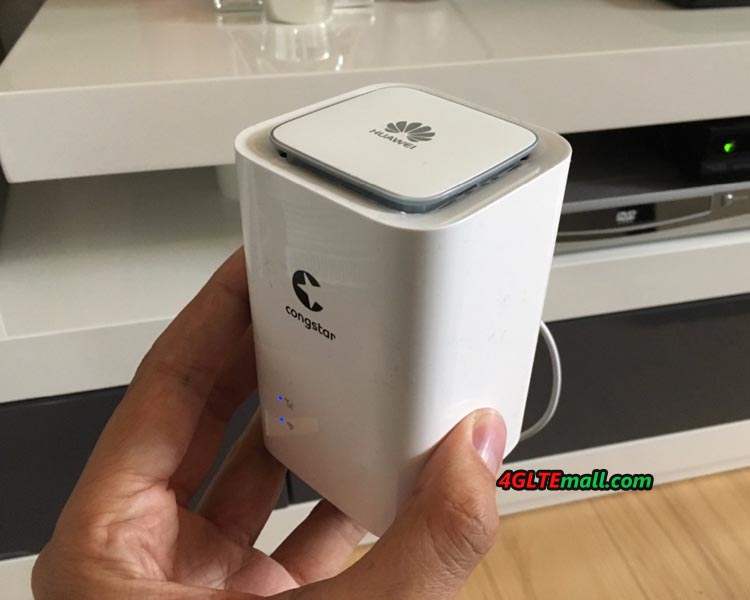

In the contract, congstar presented a WLAN Cube, also a suitable router manufactured by Huawei, which converts the LTE Internet access into a WLAN signal, which then makes it possible to provide internet for smartphones, tablets and notebooks with a wireless Internet access supply. A device can also be connected directly to the WLAN Cube using an Ethernet cable.

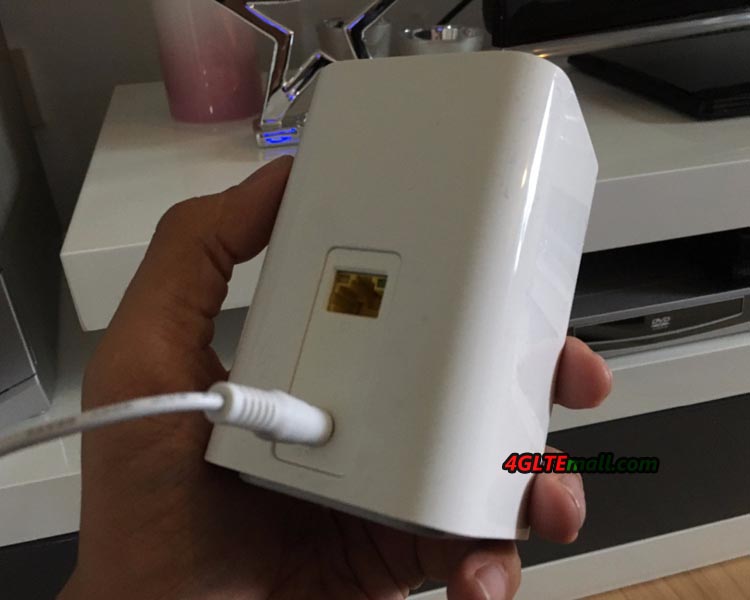

We have s the opportunity to test the homespot rate of congstar together with the WLAN Cube since last week. The SIM card must be inserted into the router slot. The WLAN Cube is then supplied with power via the included power supply unit. The PIN of the SIM card must then be entered. This works via the configuration menu of the router, which can be reached at address 192.168.8.1 via a connected smartphone, tablet or notebook. For future use, the SIM PIN can be stored so that it does not have to be entered again.

Congstar Homespot from Huawei E5180



The WLAN access data and the homespot model are to be found on the underside of the router, which in the original is called Huawei E5180. After initial commissioning, the SSID as well as the password can be customized. In addition, users have the option of switching from the automatic selection of the WLAN channel to manual selection. The WLAN Cube is supported only by the much heavily overloaded 2.4 GHz range. If you want to use a 5 GHz router, you have to check other models such as the latest Huawei B525 and Huawei E5186 wireless gateway. If you want to use your own router instead of the congstar WLAN Cube, you have to make sure that it has the LTE standard and the frequency ranges used around 800, 1800 and 2600 MHz.



However, the test also showed that congstar Homespot is not only working with 4G network. If LTE is not available at the desired location, the cube would work on 3G or 2G network automatically. We have switched the WLAN Cube, however, experimentally via the configuration menu to the GSM-only mode. Afterwards we were shown a strong signal.

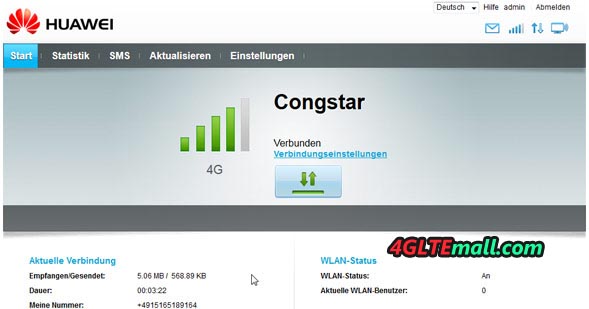

In addition to the signal strength of the received mobile network, the configuration menu for the Huawei E5180 router also shows the current connection time and the transferred data volume. The WLAN status and information about the connected users are also available.

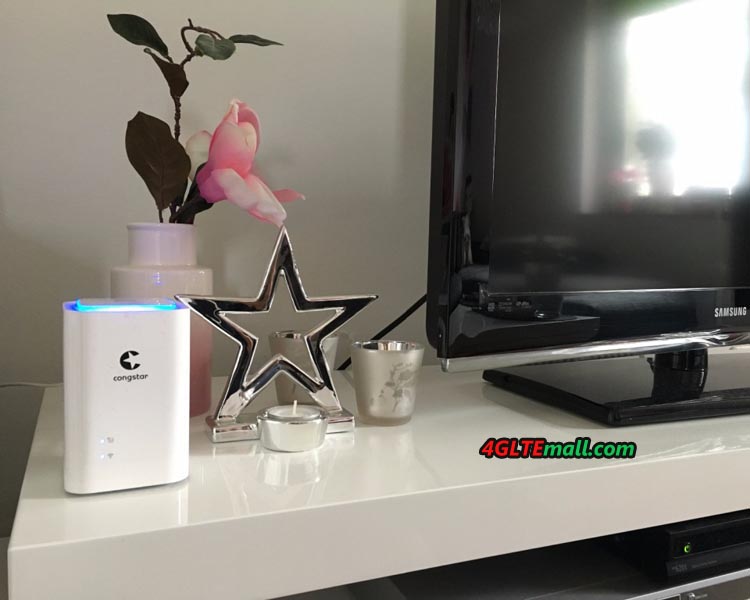

congstar as well as the manufacturer Huawei officially speak the E5180 Cube of a WLAN range of up to 250 meters. We have not achieved this value in practice. However, the signal is quite comparable to that of a classic DSL router like an AVM FRITZ! Box 7490. A mobile hotspot is much weaker. If, for example, a Huawei E5776 is only sufficient for supplying a small apartment or a hotel room, the congstar WLAN Cube can quite well cover a one-family house with wireless Internet access.





Speed Test Good

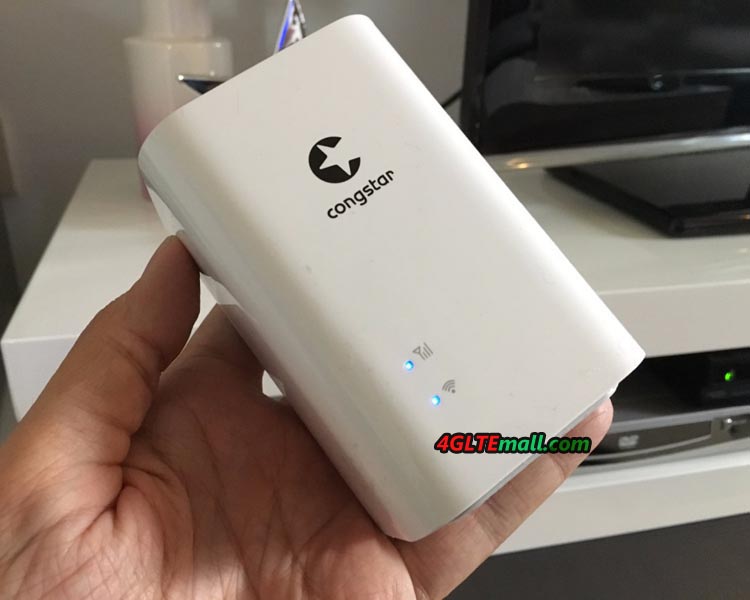

We have continuous operated the wireless hotspot over several days. Internet access was always reliably available. A restart of the router was not required to stay on reception. The two lights on the outside of the device, which on the one hand display WLAN availability and, at the very least, the current strength of the received LTE signal, is practical.



Over several days, we have examined the data transfer rates offered by congstar’s internet access. The provider itself provides up to 20 MBit/s in the downstream. This value was also achieved in the test, whereby the LTE signal strength also plays a role here. If only a medium reception level is displayed on the router, the data throughput also drops.

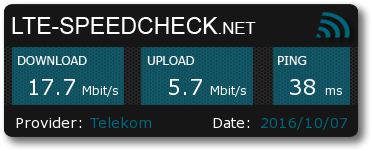

On average, we reached between 20 and 21 MBit/s in the downstream and 5 to 6.5 MBit/s in the upstream. The response times were between 17 and 25 ms. The congstar homespot therefore provided similar performance data, such as a VDSL-25 connection in the fixed network. Even the somewhat higher latencies compared to the fixed net do not make themselves noticeable with normal surfing, with the use of e-mails, fairs, etc. It may not be the case for gamers, who need the lowest possible ping times.



It should be borne in mind that our performance tests have only been carried out at the location in Hessian Spessart, which is registered as the usage address for the congstar Homespot. We also carried out measurements on different days and at different times of the day. The results were quite similar, with Telekom’s LTE-800 radio cell, which is available here, with a unrestricted data SIM generally providing data rates between 40 and 50 MBit/s in the downstream.

However, our results are not comparable to data rates and ping times at other sites. Depending on the number of users and the user behavior, depending on the network configuration and capacity, there can be significant differences. Above all, in cities it is quite possible that the well-developed LTE network of the Telekom has some overloading phenomena.



In summary, the Huawei E5180 congstar homespot is good for wireless supply at a house, but missing the 5GHz WiFi band. The Ethernet port is also good for desktop and the internet speed is also good for most cases. If you would like to know more Huawei 4G router, welcome to check here: https://www.4gltemall.com/4g-wireless-router/huawei-4g-lte-wifi-router.html
