Five Huawei Mobile Hotspots with Ethernet Port to Recommend

A few years ago, Huawei presented its first mobile 3G router with Ethernet port Huawei E5151 (In China, it’s called Huawei E5 LAN). Now many mobile hotspots with Ethernet connection are available from many vendors. Today, we would like to review five Huawei mobile hotspots with Ethernet port, including Huawei 3G mobile WiFi hotspot with Ethernet port and Huawei 4G Mobile Hotspots with Ethernet Port.

Why people need a 3G/4G hotspot with Ethernet port?

Usually, many people use 3G mobile hotspots or 4G mobile hotspots on the go. The mobile hotspots usually have a SIM card slot, so that users can connect to the hotspot wirelessly. However, if the SIM card signal is not available or only Ethernet connection is available, it’s the show time for the mobile hotspot with Ethernet port. And the business people or somebody who usually travel overseas may face this trouble. In this situation, you may need a 3G/4G LTE hotspot with Ethernet port.

Best Seller – Huawei 3G/4G Mobile Hotspot with Ethernet Port

Huawei E5885 (Also named Huawei Mobile WiFi Pro 2)
Huawei E5770 (Also named Huawei Mobile WiFi Pro)
Huawei E5730
Huawei E5351
Huawei E5151

Huawei E5770 in black and Huawei E5730 in white

From the name, you may don’t know what the difference is between the five mobile hotspots with Ethernet port. The Huawei E5885 and E5770 are two 4G mobile hotspots with Ethernet port while the rest three models(E5730, E5351 and E5151) are 3G mobile hotspots. We make the table below about the specs and features of the five mobile routers for your reference. Let’s see the Huawei 4G mobile hotspots with Ethernet port:

Huawei 4G Mobile Hotspot with Ethernet Port
Model	Huawei E5885	Huawei E5770
Product type	LTE Mobile Hotspot	LTE Mobile Hotspot
Category	LTE Cat.6	LTE Cat.4
Data rates	DL 300Mbps/UL 50Mbps	DL 150Mbps/UL 50Mbps
Supported 4G LTE frequency bands	* FDD-LTE: Band 1/2/3/4/5/7/8/19/20/28 * TDD-LTE: Band 38/40/41/42	Band 1/3/5/7/8/20/38
Supported 3G frequency bands	B1/B2/B4/B5/B6/B8/B19	850/900/1900/2100MHz
WiFi	802.11a/b/g/n/ac, dual-band 2.4GHz & 5GHz	802.11b/g/n, 2.4GHz
Max support users	32 users	11 users
MIMO	2 X 2 MIMO	2 X 2 MIMO
Connector for external antenna	No connector	No connector
Ethernet Port	Single WAN/LAN port(RJ-45)	Single WAN/LAN port(RJ-45)
App management	Huawei Hilink APP	Huawei Hilink APP
SIM type	Micro SIM	Micro SIM
Battery	Non-removable, 6400mAh	Non-removable, 5200mAh
Dimensions	112.00 x 69.20 x 23.00mm	106.0 mm × 68.4 mm × 22.5 mm
USB port	Input & Output	Input & Output
Datasheet	Huawei E5885 Datasheet	Huawei E5770 Datasheet
User Manual	Huawei E5885 Manual	Huawei E5770 Manual
Supported Carriers	AT&T, T-mobile, Verizon, Rogers, Telus, Telstra, Vodafone, Orange, Airtel, MTC, MTN, Vodacom etc.. Including other carriers in Europe, Africa, Middle East, Aisa.	Mainly for Europe, Asia, Middle East, Africa, not working well in American areas on 4G/LTE
Review	Huawei E5885 Review	Huawei E5770 Review
Price/USD	299.00USD	229.00

And below is the Huawei 3G Mobile Hotspot with Ethernet Port:

Huawei 3G Mobile Hotspot with Ethernet Port
Model	Huawei E5730	Huawei E5351	Huawei E5151
Product type	3G Mobile Hotspot	3G Mobile Hotspot	3G Mobile Hotspot
Data rates	DL 42Mbps/UL 5.76Mbps	DL 42Mbps/UL 5.76Mbps	DL 21Mbps/UL 5.76Mbps
Supported 4G LTE frequency bands	n/a	n/a	n/a
Supported 3G frequency bands	900/2100MHz	900/2100MHz	900/2100MHz
WiFi	802.11b/g/n, 2.4GHz	802.11b/g/n, 2.4GHz	802.11b/g/n, 2.4GHz
Max support users	10 users	10 users	10 users
MIMO	n/a	n/a	n/a
Connector for external antenna	No connector	No connector	No connector
Ethernet Port	Single WAN/LAN port(RJ-45)	Single WAN/LAN port(RJ-45)	Single WAN/LAN port(RJ-45)
App management	Huawei Hilink APP	Huawei Hilink APP	Huawei Hilink APP
SIM type	Standard SIM	Standard SIM	Standard SIM
Battery	Non-removable, 5200mAh	Removable, 1500mAh	Removable, 1500mAh
Dimensions	99.0mm×66.3mm×22.5mm	92.8mm x 63.5mm x 16.3mm	92.8mm x 63.5mm x 16.3mm
USB port	Input & Output	Input	Input
Datasheet	Huawei E5730 Datasheet	Huawei E5351 Datasheet	Huawei E5151 Datasheet
User Manual	Huawei E5730 Manual	Huawei E5351 Manual	Huawei E5151 Manual
Supported Carriers	Mainly for Europe, Asia, Middle East, Africa, not working well in American areas on 4G/LTE	Mainly for Europe, Asia, Middle East, Africa, not working well in American areas on 4G/LTE	Mainly for Europe, Asia, Middle East, Africa, not working well in American areas on 4G/LTE
Review	Huawei E5730 Review	Huawei E5351 Review	Huawei E5151 Review
Price/USD	148.00	139.00	139.00

HUAWEI E5151 Ethernet port — Huawei E5151

They are the best sellers of Huawei Mobile Hotspots with Ethernet port. The Ethernet Port in the devices is for WAN & LAN. Here now, there are many mobile hotspots with Ethernet from other manufacturers, but some of them are only for LAN, not for WAN, which means you can only connect to the network via 4G SIM card. You cannot connect to WLAN network via Ethernet port.

The above mobile hotspots with Ethernet port support LTE to LTE-A networks, and 3G mobile hotspots available. You may find one for yourself if you have demand for such functions. And we have to mention that the large battery capacity in the Huawei E5885, E5770, and E5730, which can also charge other devices such as smartphones, gadgets etc…This could also be praised for the practical function.

Difference between Huawei Mobile WiFi Pro 2 and WiFi Pro E5771

Huawei Released the Huawei Mobile WiFi Pro 2 with LTE-A support recently to replace the current well-known Huawei Mobile WiFi Pro E5770, which support on LTE cat.4. Actually, Huawei also presented a similar model to Mobile WiFi Pro E5770 in Chinese market, the model number is Huawei E5771 and it’s also named Mobile WiFi Pro. In this article, we will have a look at what’s the difference between Huawei Mobile WiFi Pro 2 and Huawei E5771 Mobile WiFi Pro.

Appearance

The new Huawei Mobile WiFi Pro 2 has a small LED screen which to show the connection status, but Huawei E5771 WiFi Pro has only the power button and huawei logo on the front. They are both supplied with a short tap, which can hold the device and can also be used as USB cable for battery charge and data connection to PC. On the back, there Huawei Mobile WiFi Pro 2 shows the battery capacity to 6400mAh while the Huawei E5771 shows the battery of 9600mAh, which is amazing for long time working and charging other devices.

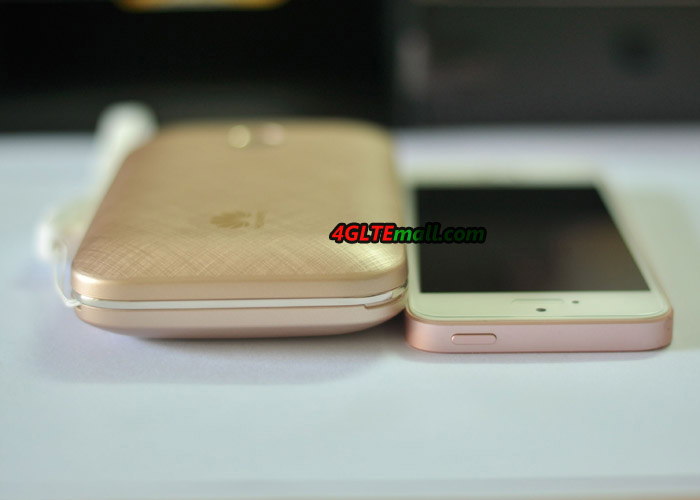

With the large battery, the Huawei E5771 and Mobile WiFi Pro 2 are not thin, the thickness provides the possibility to set the USB port and Ethernet port at the body side. Huawei E5771 WiFi Pro has on output USB and input USB port at side while the Mobile WiFi Pro 2 has extra Ethernet port besides two USB ports. Unlike Huawei E5771, Huawei Mobile WiFi Pro 2 has the power button and WPS button at the each side of the interfaces.

However, we didn’t find the ports for external antennas, which are available in many other Huawei E5 mobile hotspots.

Technical Specifications

As the latest Huawei Mobile WiFi, Mobile WiFi Pro 2 could support the latest LTE-A networks with LTE Cat.6 chipset to provide possible download speed to 300Mbps and upload speed to 50mbps. The Huawei E5771 WiFi Pro could support LTE Cat4 providing download speed to 150Mbps, which is only half of the speed from Mobile WiFi Pro 2. They both support 4G LTE TDD-LTE/FDD-LTE networks with backward of 3G & 2G networks.

As we know, the Huawei E5771 has many sub-models for different network providers and markets. There are Huawei E5771s-852, E5771s-856 and Huawei E5771h-937. We suppose the Huawei Mobile WiFi Pro 2 would also have many variant models, the specific model would be known when they are presented to the market.

As a mobile pocket WiFi, Huawei E5771 could support up to 10 wireless devices to access internet simultaneously while the Huawei Mobile WiFi Pro 2 can provide internet access for up to 32 users. And the RJ45 LAN port provides one more option for users get connected with internet.

The most attracting feature of the two Mobile WiFis should be working as the mobile power bank to charge other electric devices such as smartphones, Pads, Game terminals etc. The large battery of Huawei E5771 Mobile WiFi Pro shows its advantage on this point. It can only keep itself working long time, but also charge other devices for many times.

The WLAN standards of Huawei Mobile WiFi Pro 2 are IEEE 802.11a/b/g/n/ac with dual-band while Huawei E5771 provides WLAN on 802.11b/g/n, missing ac and single band on 2.4GHz.

Management

As the standard offer for Huawei devices, Huawei Mobile WiFi app is available for users to do simple setup of the two mobile routers and if you need the advanced setting, you’d better enter into the web interface 192.168.x.1 from a browser.

In our opinion, the Huawei Mobile WiFi Pro 2 looks cool in appearance, and with the advanced features for LTE networks, it’s really useful for users, but Huawei E5771 WiFi Pro’s large battery and decent function, which is also enough for most users. Actually, Huawei E5771 is a budget mobile WiFi hotspot comparing with Huawei Mobile WiFi Hotspots.

Huawei E5771 Mobile WiFi Plus Review

You may have known Huawei mobile WiFi Pro E5770, which has a large battery capacity and could reach peak download speed to 150mbps. And up to 11 devices could connect o Huawei E5770 simultaneously through WiFi. Here now, there is a brother model Huawei E5771 available, which is also called “Huawei Mobile WiFi Plus”.

As a new 4G mobile Router, Huawei E5771 is similar to Huawei E5770 in the technical specifications. It’s a LTE Category 4 mobile hotspot which could achieve peak download speed to 150mbps and upload speed to 50mbps. Unlike Huawei E5770, there is no LED screen on the front, only Huawei logo and the power button on the front. The touch feel of the body is good. On the back, the number indicates 9600mAh battery capacity, which is almost double of the E5770 battery capacity.

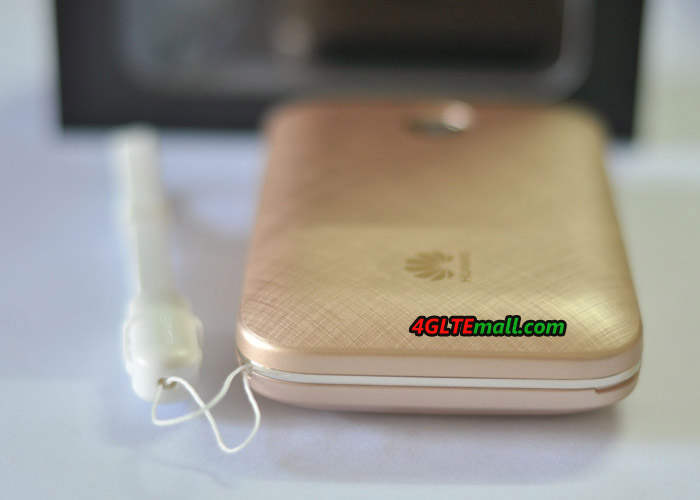

On the edge at the power button side, there are USB In & Out ports for 5V/2A. The USB out port is to charge other electronic devices such as smartphones, tablets etc while the In port is for power charging for the Huawei E5771 itself. At the top side edge, there are 5 small indicators, one for data transfer and the rest four for power status. The total design of Huawei E5771 is very simple and classic. I personally like it!

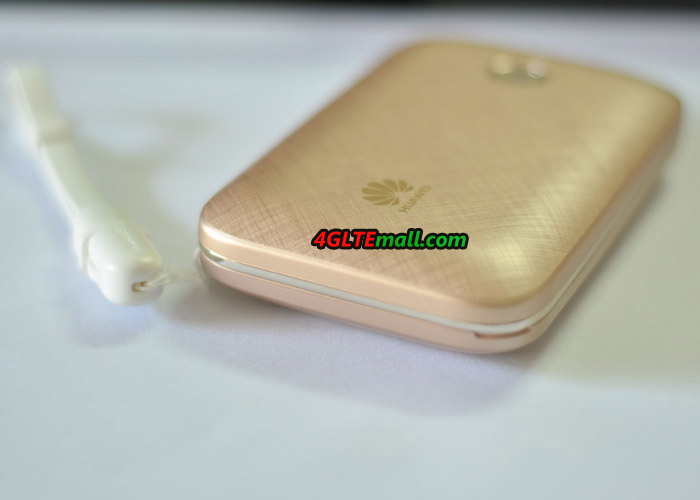

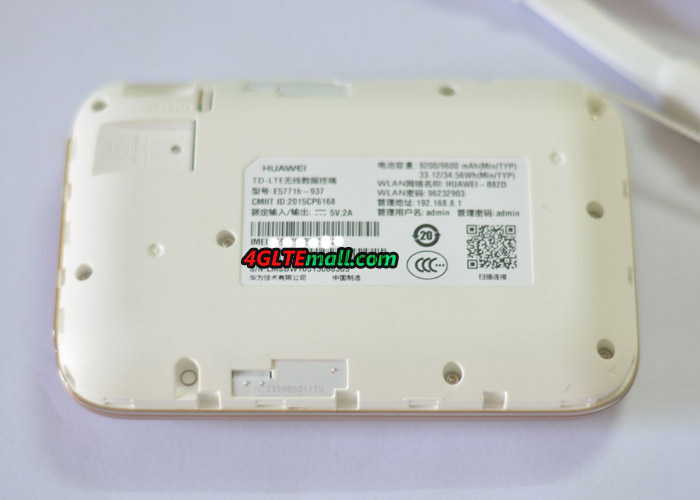

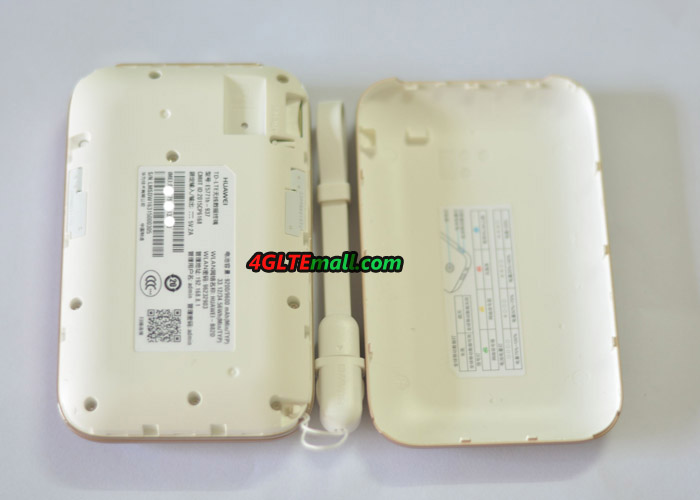

The large battery is built-in the Huawei E5771 WiFi plus, user can open the back cover from the groove at the left side corner. On the inner body, we can see more information about the device, such model number, power output and input, IMEI & S/N number, battery capacity, WLAN network (SSID) name and password, admin IP address and password. There is also a QR code which can be scanned and connect to the device through smartphones. It’s also showed the Huawei Technologies Limited and Made in China.

The button has a “Hi” word, which is also a LED indicator. It indicates different network status by colors. In Green, it means network signal is very good, but in yellow, it means weak signal. If in red, there is no network service available, and if in blue, it means the device connect the network via WLAN.

There is a SIM card slot and Micro SD card slot available in the Huawei E5771 Mobile WiFi Plus. The E5771 MiFi uses Micro SIM card. Users can connect to the device and share the files and documents in the SD card. The Reset button is also available beside the two slots. Users can reset the Huawei E5771 to factory default by pressing the button.

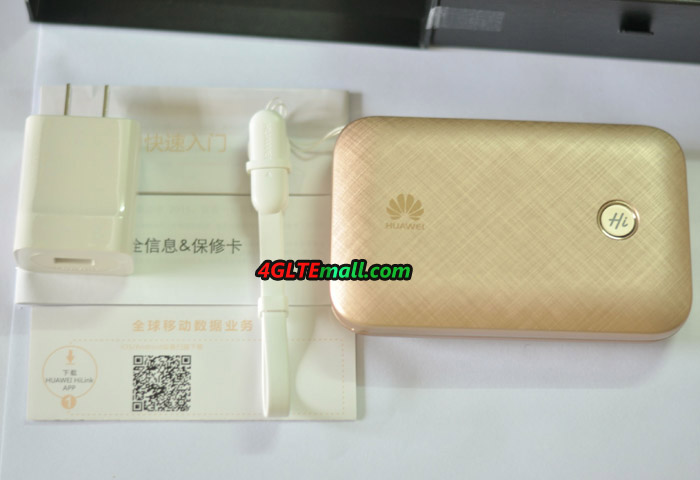

With the Huawei E5771, the manufacturer also provides the USB cable and power adapter. The design of the USB cable is interesting, it can be folded and be the sling for Huawei E5771.

In summary, the Huawei E5771 has two advantages than other similar 4G mobile WiFi hotspots:

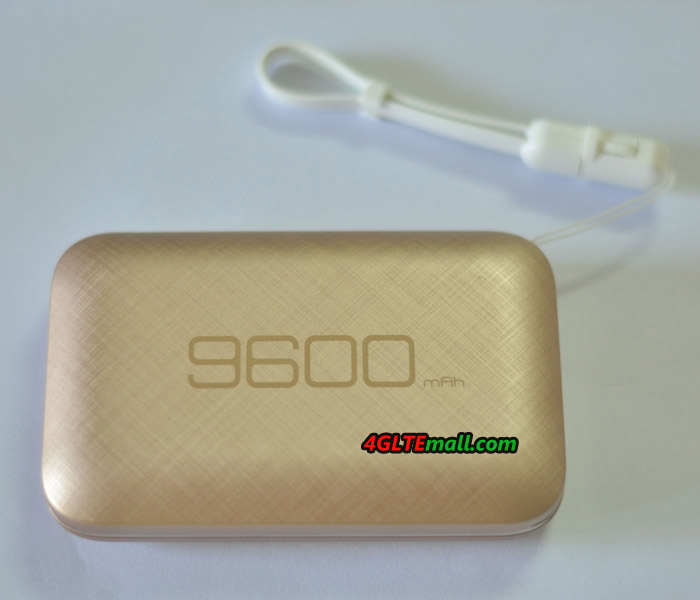

Large battery capacity of 9600mAh, which can keep working for long time and charge other electronic devices as a power bank
It can be used in around 30 countries/areas without any limit for high speed network connection

It’s a practical mobile router for global use. But the mainstream of the mobile hotspots is with touch screen, where user can operate or setup the router via screen. It’s a pity Huawei E5771 doesn’t have this feature. If you prefer a mobile router with touch screen, you may check the Huawei E5787 LTE Cat6 mobile hotspot. Anyhow, Huawei E5771 is still a very good 4G pocket router and highly recommended!

huawei-e5771-usb-cable

Huawei E5573 Mini MiFi Router Overview

Now Huawei obviously focuses more on the development of mobile hotspot routers, as well as new LTE sticks. The small devices are a little larger than sticks, but far more diverse. So there are many products of mixture of router and stick. And now we get the E5573s, Huawei provides another device for mobile and stationary use. Find out what the Huawei E5573 offers.

Huawei E5573

Features and Specifications of Huawei E5573
Manufacturer and Model Number:	Huawei E5573s-320
LTE Category:	LTE CAT4
Download rate up:	150 MBit/s
Upload rate to:	50 Mbit/s
Supported LTE bands:	LTE Band 1/3/5/7/8/20 (800/900/1800/2100/2600MHz)
Backward compatible with:	HSPA+, HSUPA, UMTS, Edge
Support of LTE-Advanced:	No
MIMO Support:	2 x2
External Antenna:	Yes, Dual TS-9 connectors (Buy Huawei E5573 External 4G antenna)
Network \| LAN & WLAN
LAN ports:	no
WLAN standards:	802.11a/b/g/n
5 GHz WLAN support:	YES
encryption:	WEP, WPA, WPA2
Wireless Hotspot function:	Yes, up to 10 devices
Others
SIM type	Mini SIM
Battery pack:	2300mAh (operation to 6h; standby to 300h)
Dimensions (WxHxD):	96.8 x 58 x 12.8 mm at 75 grams
USB:	Micro USB
Memory card expansion:	No
release:	mid-2015
available at:	WWW.4GLTEMALL.COM

LTE Technologies

The Huawei E5573s supports LTE Category 4 (CAT4), which is sufficient for most customers. The LTE module in Huawei E5573 could provide download rates up to 150 Mbps in LTE network. In addition, if the LTE network is not available, the operating via HSPA+, HSUPA, UMTS (3G) and Edge (2G) is possible. As a global model, the Huawei E5573 could support TDD-LTE/FDD-LTE/WCDMA/UMTS/GSM networks. Here we have the Huawei E5573s-320 supports 4G FDD-LTE Band 1/3/5/7/8/20 (800, 850, 900, 1800, 2100 and 2600 MHz). Actually, there are many variant models for Huawei E5573, below are the sub-models listed with the supports network frequency bands:

Huawei E5573s-320:

– FDD Band 1/3/5/7/8/20 (800/850/900/1800/2100/2600MHz)

– WCDMA Band 850/900/2100MHz

Huawei E5573s-856 (For China Unicom):

– TDD Band 40/41

– FDD Band 1/3

– WCDMA Band 1/8

Huawei E5573s-852 (For China Mobile):

– TDD LTE Band 38/39/40/41

– FDD LTE Band 3/7

– TD-SCDMA B34/39

Huawei E5573s-606:

– LTE-FDD 2600(7)/2100(1)/1800(B3)/700(B28)MHZ

– LTE-TDD Band 40 (2300MHz)

– DC-HSPA+/HSPA+/HSPA/UMTS 2100/900/850 MHz

Huawei E5573s-607:

– FDD Band 5 (850MHz) & TDD Band 40 (2300MHz)

Huawei E5573s-156(also MTS 8210FT):

– LTE-FDD 1800(3)/2600(B7)/800(B20)MHZ

– LTE-TDD Band 38 (2600MHz)

– DC-HSPA+/HSPA+/HSPA/UMTS 2100/900/850 MHz

Huawei E5573s-508:

– LTE-FDD 1700(4)/2600(B7)/700(B13)MHZ

Huawei E5573

From the above frequency bands, users can choose the appropriate one for their market per the carriers at their locations or countries. If you would take the E5573 MiFi for oversea travel or use in multiple countries, you would better to clarify the network frequency bands of the destination countries and find the correct variant model.

Wireless Features

The Huawei E5573 4G hotspot router allows the connection of up to 10 additional devices, such as smartphone, laptop, tablet or game console. It supports the 802.11a/b/g/n. The modern wireless ac is not integrated again, which we find quite a pity.

Huawei E5573

External antenna

Like other Huawei 4G mobile hotspots, the Huawei E5573 has two TS-9 jacks for connecting an external LTE antenna. Thus, if the E5573 is used in areas with difficult reception conditions, the signal can be improved by connecting a 4G antenna. Here we have one smart antenna for Huawei E5573 to recommend: http://www.4gltemall.com/4g-antenna-two-ts-9-connector.html

4G LTE Indoor Antenna (2 x TS-9 Connectors) for Huawei/ZTE 4G LTE Modems/dongles/mobile hotspots

Battery

One important matter for a mobile router of course is still the battery. The Huawei E5573 has a capacity of 2300 mAh for about 6 hours of operation and 300 hours standby which is enough according to the manufacturer. In practice, you may found the battery is not really enough on intensive use. In this case, the similar model Huawei E5770 Mobile WiFi Pro or Huawei E5771 WiFi Plus may be better options because they have large power capacity for much longer working time.

Huawei E5573

Conclusion

Currently the Huawei E5573 is available on www.4gltemall.com. You can check the variants for different areas. And 4gltemall.com could ship the Huawei E5573 to anywhere of the world. It’s easy to get this pocket WiFi. Since the Huawei E5573 technically hardly differs from devices such as the Huawei E5577, it is still a good mobile WiFi Router.
