Tag: Huawei WiFi router with Ethernet port

Huawei B612 VS Huawei B525

As we had introduced few Huawei 4G Cat.6 routers such as Huawei B525, B528, B529 and E5186, Huawei released a new LTE Cat.6 modem named Huawei B612. Like Huawei B525 4G Router, the Huawei B612 router cat.6 was firstly available in some countries for specific network providers. Somebody may ask: What the difference between the Huawei B525 and Huawei B612 Router? What has been improved on this new 4G Cat.6 router? We will compare the Huawei B612 Specs & features with Huawei B525 specs & features to let you know more about the two Huawei 4G Router Cat.6.

Huawei B612 VS Huawei B525 Appearance and Interfaces

If you have read our blog about Huawei B525, you may be familiar with the appearance of Huawei B525, it’s in a traditional router design. On the front, there are five indicators to show the power, mode, WiFi, LAN and signal status. On the back of Huawei B525 4G, there are two connectors for external LTE antennas which are covered by a long cap. Four Ethernet ports are available, among which 3 is for LAN and one is for both LAN and WAN. One RJ11 telephone port and one USB port is at the side of the Ethernet ports. The SIM card slot is at the bottom of the Huawei B525 modem with the label showing the model number and other corresponding information about the router.



Like the Huawei B525, Huawei B612 router also has five LED indicators to show the power, internet, WiFi, LAN/WAN and signal status, and they both have the power button and WPS on the top edge side. The Huawei B612 also uses Micro SIM card and the SIM card slot is at the bottom. It also has two connectors for external antennas. Four Ethernet ports are available, in them, 3 are for LAN and one for both LAN & WAN. And it also has one telephone port. But there is no USB port in the Huawei B612 Router. The total appearance and interfaces are very similar to Huawei B525. The difference is Huawei B612 4G has an angled backrest, where the SSID and WiFi key are printed.



Huawei B525 VS Huawei B612 Specs and Features

With similar appearance, we can’t tell what the real difference is. Then let’s compare the Huawei B525 Specs and Huawei B612 Specs for more details:



Model Huawei B612 Huawei B525
Product type Huawei WiFi Router with Ethernet port Huawei WiFi Router with Ethernet port
Category LTE Cat.6 LTE Cat.6
Chipset HiSilicon LTE Cat6 Chipset HiSilicon LTE Cat6 Chipset
Data rates DL 300Mbps/UL 50Mbps DL 300Mbps/UL 50Mbps
Supported 4G LTE frequency bands Huawei B612s-25d:  B1/B3/B7/B8/B20/B38/B40/B41/B42/B43
Huawei B612s-51d: B2/B4/B5/B7/B41		 Huawei B525s-23a: Band  1/3/7/8/20/32/38
Huawei B525s-65a: Band  1/3/4/5/7/8/20/19/26/28/32/38/40/41
WLAN 802.11 b/g/n/ac, single-band 2.4GHz 802.11a/b/g/n/ac, dual-band 2.4GHz & 5GHz
Max supported users 32 users 64 users
MIMO 4 x 4 MIMO 2 x 2 MIMO
Connector for external antenna Two, SMA-female jacks Two, SMA-female jacks
Buy Antenna Huawei B612 external antenna Huawei B525 external antenna
App management Huawei Hilink APP Huawei Hilink APP
SIM Size Micro SIM Micro SIM
Battery NO NO
Dimensions 240 × 155 × 78 mm 163 x 52 x 226 mm
Interfaces * 3 x LAN port(RJ45)
* 1 x LAN/WAN port (RJ45)
* 1 x telephone port(RJ11)
* Two external LTE antenna ports (SMA-female)
* One micro-SIM card slot
* 1 x USB 2.0 port		 * 3 x LAN port(45)
* 1 x LAN/WAN port (45)
* 1 x telephone port(RJ11)
* Two external LTE antenna ports(SMA-female)
* One micro-SIM card slot
* 1 x USB 2.0 port
Datasheet Huawei B612 Datasheet(PDF) Huawei B525 Datasheet(PDF)
User Manual Huawei B612 User Manual(PDF) Huawei B525 User Manual(PDF)
Other features  Firewall, CS Voice, VoIP, VoLTE, IPv6/IPv4 dual stack, NAT, DHCP, VPN, DMZ, UPnP, ALG  Firewall, CS Voice, VoIP, TR069 Remote Management, HTTP Online Upgrade, QoS, USB Share, UPnP, IPV6, DLNA, Fax, Print, VPN
Firmware download Huawei B612 firmware Huawei B525 firmware
Driver Huawei B612 driver Huawei B525 driver
Reviews Huawei B612 Review Huawei B525 Review
Price/USD 399.00USD 259.00USD



Summary

From the specs, we can see Huawei B612 and B525 are both 4G Cat.6 routers, which could achieve download speed up to 300mbps and upload speed to 50Mbps. The difference is Huawei B612 supports single WiFi band 2.4GHz while B525 supports dual-band WiFi. Huawei B525 4G modem could support up to 64 wireless devices while Huawei B612 router supports only half devices to 32 units. However, Huawei B612 adopts 4 X 4 MIMO technologies for wireless data transmission while Huawei B525 uses 2 X 2 MIMO. Other features of the two Huawei 4G LTE Cat.6 routers are very similar. Perhaps because the Huawei B612 is newly released, the price is higher than Huawei B525 price. But we suppose the Huawei B612 price would be adjusted down because the Huawei B612 specs are not better than Huawei B525 to some extent.



The Huawei B525 and B612 routers both have two variant models for difference LTE frequency bands. If you would buy one router, you’d better check the which one is compatible with your network provider. Based on the difference, we think it’s not hard to buy a Huawei LTE Cat.6 router from the two 4G LTE WiFi Routers.

Huawei B525 VS Huawei B529 HomeNet Box

With the popularity of 4G LTE networks, more and more customers are changing their home routers from ADSL to 4G LTE Gateways. Since Huawei router gateway has a good reputation, many end-users are interested in Huawei home router WiFi. However, some of them are unfamiliar with Huawei 4G LTE routers, which may cause them in trouble when trying to buy a Huawei 4G Router, especially the Huawei routers’ names are very similar, for example, the Huawei B525 and B529. From the model number, you can’t identify what’s the difference between the two routers and which one is better. In this article, you will find the answer.

Huawei B525 VS B529 Appearance and Interfaces

From the model number, you may not know the key difference, but once you get the two router in hand, you may find the two name-similar router are very different. The Huawei B525 is a traditional stationary router. On the front, there are few indicators for the internet connection, power, network mode, signal and WiFi. On the back, there are 4 LAN ports (One of them is for WAN/LAN), one RJ45 telephone and one USB 2.0 port. However, the Huawei B529 HomeNet box looks not like a router; it’s in a shape of a cube and looks like a piece of cake, really. The available specific model is Huawei B529s-23a for T-mobile. On the front, there is T-mobile logo with LED indicators of Mode, LAN, WiFi, and Power. Below the LED indicators, the power button and light button. On the back, there is only one Ethernet LAN port for PC with the power plug port. On the upper part, there are two connectors for an external antenna. The connector type is TS-9.

The design of Huawei B529 is very special and we have to mention. In the middle of the Huawei B529, there is a light line which divides the router into two parts. However, unlike its predecessor T-mobile HomeNet box Huawei E5170, the two parts of Huawei B529 cannot be divided. The highlight of Huawei B529 is the built-in battery of 3000mAh, which could let the Huawei B529 working on the go for working around 8-10 hours. The two routers have the similar feature is that the SIM card slot is at the bottom, and they both use micro SIM card size.



Huawei B529 VS B525 Specs and Variant Models

To support various LTE frequency bands in different areas, Huawei B525 4g cat6 router has two variant models: Huawei B525s-23a and B525s-65a. Huawei B529 has only one variant model B529s-23a, which is only available for T-mobile. From the appearance, you may not get the key difference and which one is better. Below the table will list the Huawei B525 specs and Huawei B529 specs, and other features. You may reference the two Huawei routers.



Model Huawei B525s-23a/B525s-65a Huawei B529s-23a
Product type LTE WiFi Router LTE WiFi Router
Category LTE Cat.6 LTE Cat.6
Chipset HiSilicon LTE Cat6 Chipset HiSilicon LTE Cat6 Chipset
Data rates DL 300Mbps/UL 50Mbps DL 300Mbps/UL 50Mbps
Supported 4G LTE frequency bands B525s-23a: Band 1/3/7/8/20/32/38
B525s-65a: Band 1/3/4/5/7/8/20/19/26/28/32/38/40/41		 Band 1/3/7/8/20/32/38
WLAN 802.11a/b/g/n/ac, dual-band 2.4GHz & 5GHz 802.11a/b/g/n/ac, dual-band 2.4GHz & 5GHz
Max support users 64 users 64 users
MIMO 2 x 2 MIMO 2 x 2 MIMO
Connector for external antenna Two, SMA-female jacks, buy Huawei B525 Router antenna Two, TS-9 jacks, buy Huawei B529s-23a external antenna
App management Huawei Hilink APP Huawei Hilink APP
SIM type Micro SIM Micro SIM
Battery NO Yes, non-removable 3000mAh battery
Dimensions 163 mm x 52 mm x 226 mm 120 x 120 x 125mm
Interfaces * 1 x power adapter port
* 3 x LAN port(45)
* 1 x LAN/WAN port (45)
* 1 x telephone port(RJ11)
* Two external LTE antenna ports (SMA)
* One micro-SIM card slot
* 1 x USB 2.0 port		 * 1 x power adapter port
* 1 x LAN port(45)
* Two external LTE antenna ports (TS-9)
* One micro-SIM card slot
Datasheet Huawei B525 Datasheet Huawei B529 Datasheet
User Manual Huawei B525 Manual Huawei B529 Manual
Other features NAT, DHCP, VPN, SMS, VoIP, CS Voice, Firewall, DMZ, UPnP, ALG,  IPv4 /IPv6 dual stack  DHCP Server, DNS RELAY and NAT
Reviews Huawei B525 Review Huawei B529 Review
Price/USD 299.00USD 299.00

Conclusion

The Huawei B525 4G fix router and Huawei B529 cube are same level Huawei 4G routers supporting LTE Category 6, which could achieve download speed up to 300mbps. The main difference is on the interface ports and variant models for different LTE frequency bands. Huawei B525 has more Ethernet ports and a telephone port for more terminals. And the Huawei B525s-65a covers all the LTE bands on Huawei B529S-23a. So if you don’t focus on the built-in battery in Huawei B529 Router, the Huawei B525 would be the right one for your home or office. The advantage of Huawei B529 is the non-removable battery, which can make users to take the router outdoor or using it on the go. If you don’t need the Ethernet port or telephone port in Huawei B525, Huawei B529 Router would be the right one for you.

Huawei B525 VS B618 4G LTE Router

For most unprofessional users, it would be a challenging thing to buy a Huawei WiFi router with Ethernet port. Especially, there are many Huawei LTE Routers available in the market, which would make the selection harder. Huawei B525 and Huawei B618 are two latest LTE advanced routers, somebody may be interested in the two routers. If you don’t know what’s the difference between the Huawei B618 and B525 router. In this article, you will find the answer. And if you want to buy Huawei B525 router or Huawei B618 router, you may get some reference.

Appearance

Huawei B525 WiFi router was available earlier than B618 LTE CPE, and it’s technically similar to its predecessor Huawei E5186 WiFi router. The shape of Huawei B525 is in the shape of a traditional stationary wireless router, which could stand on the desktop, on the front, there are some LED indicators and there are 4 LAN ports on the back for an Ethernet connection to PC or other terminals. Two connectors are available on the top back of the router for connecting external 4G/LTE antennas. One RJ11 port for phone and one USB 2.0 port for data sharing are available.

The Huawei 4G Router B618 is not like the common router, it’s in a shape of the cube. However, the LED indicators and the Ethernet ports are still available but with different quantity. Huawei B618 Router has two LAN ports(One for LAN & WAN). The RJ11 port for telephone and USB 2.0 port are still available. The difference is that the Huawei B525 has two antenna connectors in the type of SMA while B618 LTE CPE has two TS-9 connectors, which is usually available for a Huawei LTE USB modem. What’s more, the two routers both use Micro SIM card and the SIM card slots are located at the bottom of the two routers.

Specifications

From the appearance, you may not really make a decision which one is better to select. The Huawei B525 specs and Huawei B618 specs are the key difference, which may influence the daily usage. This time, we take Huawei B618s-22d as an example. In below the table, you will see the difference of the specs difference:



Model Huawei B618 Huawei B525
Product type LTE WiFi Router LTE WiFi Router
Category LTE Cat.9/ Cat.11 LTE Cat.6
Chipset HiSilicon Balong 750 HiSilicon LTE Cat6 Chipset
Data rates DL 600Mbps/UL 100Mbps DL 300Mbps/UL 50Mbps
Supported 4G LTE frequency bands B618s-22d: Band 1/3/7/8/20/38
B618s-65d: 1/3/5/7/8/28/40		 B525s-23a: Band  1/3/7/8/20/32/38
B525s-65a: Band  1/3/4/5/7/8/20/19/26/28/32/38/40/41
WLAN 802.11a/b/g/n/ac, dual-band 2.4GHz & 5GHz 802.11a/b/g/n/ac, dual-band 2.4GHz & 5GHz
Max supported users 64 users 64 users
MIMO 4 X 4 MIMO 2 x 2 MIMO
Connector for external antenna Two, TS-9 jacks Two, SMA-female jacks
Buy Antenna Huawei B618 Antenna Huawei B525 external antenna
App management Huawei Hilink APP Huawei Hilink APP
SIM Size Micro SIM Micro SIM
Battery NO NO
Dimensions 95 × 95 × 208mm 163 x 52 x 226 mm
Interfaces * 1 x LAN port(45)
* 1 x LAN/WAN port (45)
* 1 x telephone port(RJ11)
* 1 x USB 2.0 port		 * 3 x LAN port(45)
* 1 x LAN/WAN port (45)
* 2 x telephone port(RJ11)
* Two external LTE antenna ports (SMA-J1.5)
* One micro-SIM card slot
* 1 x USB 2.0 port
Datasheet Huawei B618 Datasheet Huawei B525 Datasheet(PDF)
User Manual Huawei B618 User Manual Huawei B525 User Manual(PDF)
Other features DHCP Server, DNS RELAY and NAT, VoLTE, IPv4 /IPv6 dual stack  Firewall, CS Voice, VoIP, TR069 Remote Management, HTTP Online Upgrade, QoS, USB Share, UPnP, IPV6, DLNA, Fax, Print, VPN
Firmware download Huawei B618 firmware Huawei B525 firmware
Driver Huawei B618 driver Huawei B525 driver
Reviews Huawei B618s-22d Review Huawei B525 Review
Price/USD 449.00USD 259.00USD





Huawei B525 VS B618 Speed Test

If you want to know the speed performance of the two router, you can refer to the speed test on Youtube:





Conclusion

From the specs, we can see the Huawei B618 4G Router is more advanced for high-level LTE network. With more advanced technologies, Huawei B618 could support faster download speed and upload speed, which is almost double of that of Huawei B525. The Huawei B525 has more Ethernet port for connection. But the Huawei B618 and B525 both could support maximum up to 64 wireless users, which would be enough for most cases. Currently, most of the devices would connect via WiFi rather than Ethernet port. If you prefer to have more Ethernet ports, Huawei B525 may be good. Frankly speaking, Huawei B525 is good enough for our daily life internet demand at home for a family or in office for a small group.



As a top and latest new 4G LTE router, Huawei B618 is a future-proof home router. At least, before 5G router comes out, you will never worry about it’s out of date. However, the advanced feature makes it not in cheap price. If you want a budget router, Huawei B525 would be better.

Huawei B529s-23a 4G LTE Cat.6 Router Presented

Huawei had presented a new 4G LTE Category 6 router for network provider T-mobile Austria and named the router “HomeNet Box”. The HomeNet Box is the factory model Huawei B529s-23a.

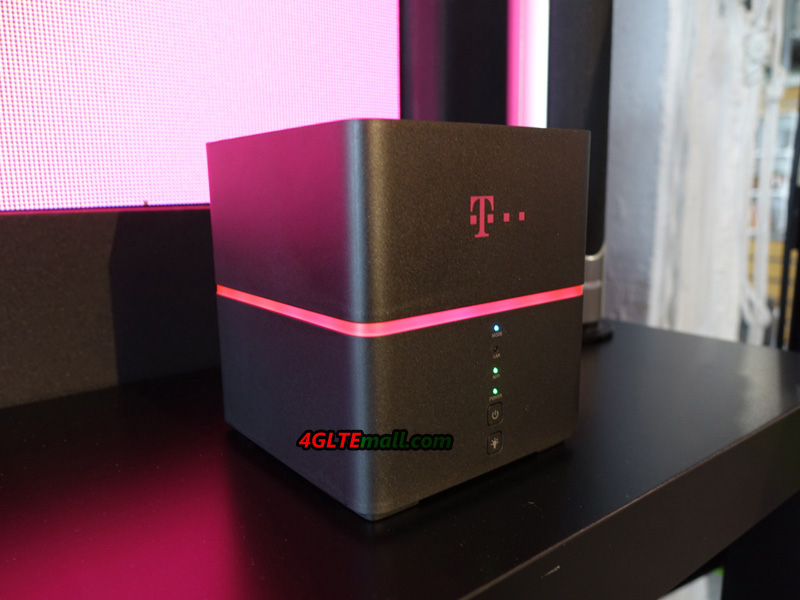

Huawei B529s-23a (HomeNet Box)

The appearance of HomeNet Box looks cool in black color, just like its predecessor Huawei E5180 Cube and E5170 cube. The design and functions are very similar to Huawei E5170, but the HomeNet Box is with high specifications. The Huawei E5170 can be divided to two parts but Huawei B529s-23a HomeNet Box is a whole part and can’t be divided.

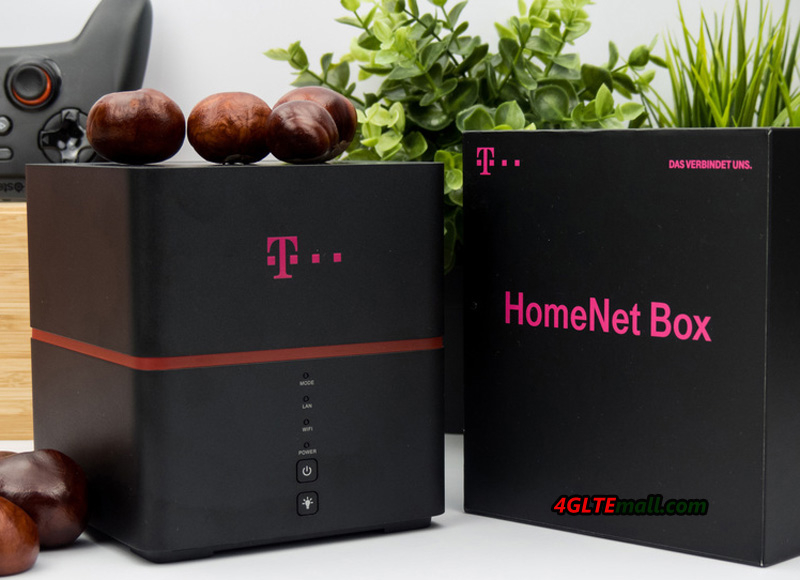

Huawei B529s-23a (HomeNet Box)

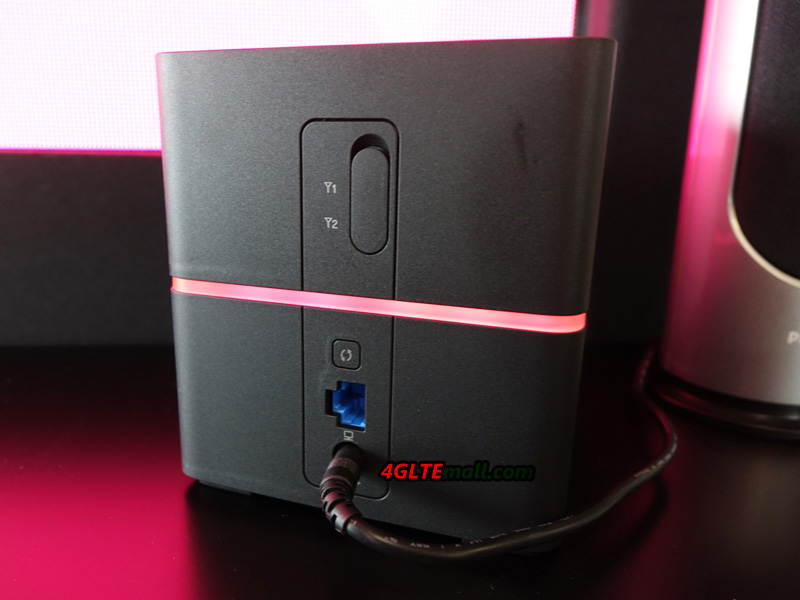

The Huawei B529s-23a router is equipped with an RJ45 port for connection via a traditional LAN cable. The built-in battery of 3000mAh can make the Huawei B529 router work as as a mobile internet center for multiple devices at the same time. What’s more, there are two connectors for external antennas available in the body. The connectors are at the back of the device and above the Ethernet port. A small cap just covers the two connectors. The connector type is TS-9. To ensure the fastest possible data transfer, just open the cap and connect an external LTE antenna to the Huawei B529s-23a. We had tested one 4G LTE Indoor antenna for Huawei B529s-23a for users who lives at the areas of weak signal:

http://www.4gltemall.com/4g-antenna-two-ts-9-connector.html

4G LTE Indoor Antenna (2 x TS-9 Connectors) for Huawei/ZTE 4G LTE Modems/dongles/mobile hotspots



The great advantage of the router is its appearance, which makes it suitable for modern interiors. LED illumination informs the user of the connection status. There are four indicators to tell the Mode, LAN, WiFi and Power status. Power button is just below the indicators. Like other Huawei LTE Routers, you can control all of your device functions with Huawei HiLink, available from the Google Play store. And you can also log into the web interface to configure the router per your preference such as DHCP Server, DNS RELAY and NAT, along with security services.

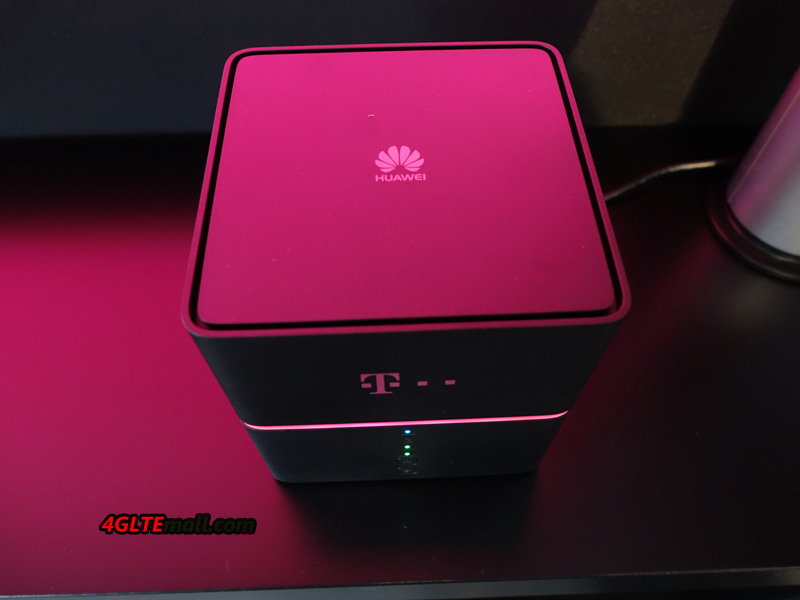

Huawei B529s-23a (HomeNet Box)

The Huawei B529s-23a router supports 4G LTE frequency bands B1/3/7/8/20/32/38. In addition, it is also backward with 3G UMTS and 2G GSM networks. With the support of LTE Cat.6, the Huawei B529s-23a delivers up to 300Mbit/s data rates and up to 50Mbit/s data rates. At the same time, up to 32 devices can connect with the B529s-23 router for surfing. The HomeNet Box uses Micro SIM card, if you get a NANO SIM, you’d better use it with an adapter. The latest WiFi standard 802.11 ac is available in the Huawei HomeNet Box on dual-band(2.4GHz and 5GHz).

Huawei B529s-23a (HomeNet Box)



In conclusion, the Huawei B529s-23a is a cool router with powerful functions including the support of LTE Cat.6, built-in battery and latest WiFi features. Actually, with the development of LTE technology, more and more network providers upgraded their networks and of course to provide new devices to support higher networks. Here now, the Huawei B525 and Huawei B618 are latest routers with similar or higher specifications. If you want to know more LTE devices, you may follow us.



Huawei B529s-23a (HomeNet Box)
