Netgear Nighthawk M1 Mobile Router Overview

Netgear has introduced the Nighthawk M1, a mobile LTE router with Ethernet port that can supply up to 20 devices with up to 1 GBit/s download speed at the Mobile World Congress 2018 in Barcelona (MWC). Many smartphones now offer hotspot capabilities, making it a mobile Wi-Fi access point for other smart devices. But if you want something more stable, faster and, above all, variable, you will not miss a dedicated mobile LTE router. The Nighthawk M1 from Netgear is top one of them. The Nighthawk M1 (MR1100) can provide up to 20 devices with mobile Internet access at a fast speed that is beyond the speed from a 4G smartphone.

The small pocket router Netgear M1 can forward up to 1 GBit/s. Connection can be obtained via the dual-band WLAN function or via a LAN output. Qualcomm provides the heart of the mobile router and contributes its share of the Nighthawk M1 with the MDM9x50. It supports nine LTE bands and makes uploading up to 150 Mbit/s possible.

Specifications of the NETGEAR Nighthawk M1:

  • Max. 1 Gbps download and 150 Mbps upload speeds
  • LTE Cat 16, 4-band CA and 4×4 MIMO: 1, 3, 7
  • Up to 4x carrier aggregation and support for LA in future firmware upgrades
  • LTE bands: 1, 3, 7, 8, 20, 28, 38, 40, 41
  • WCDMA: 1, 2, 5, 8
  • Chipset: Qualcomm MDM9x50
  • Dual-band / dual-concurrent WLAN
  • WLAN 802.11 b/g/n 2.4 GHz; WLAN 802.11 a/n/ac 5 Ghz
  • Large battery of 5040mAh

Netgear Nighthawk Router M1 at the MWC 2018

At the MWC in Barcelona, ​​the Nighthawk router M1 is not showed up for first. Actually, it was available in Australia and USA since 2017. Even though, the Nighthawk M1 in Europe comes with travel-friendly dimensions and a comfortable weight of 240 grams. The 2.4-inch LCD screen was easy to read even in the ungrateful exhibition hall light and showed the most important information. If the reception of the LTE network is not quite as stable as one would like it to be – for example in buildings, a 4G external antenna can help. Those who has surfed his smartphone power empty can use the small Netgear 4G router as a power bank. However, the large battery of 5040mAh can make Netgear Nighthawk router continuous working at 24 hours on average.

The first review quickly gives you confidence in the power of the Nighthawk M1. So you trust him quickly to survive even in the more robust travel assignment. With the powerful function, you should not expect at the very low price.

Price and availability

The Netgear Nighthawk M1 (MR1100) is now available at retail store www.4gltemall.com with price of just of 459.00USD with free 4G MIMO antenna of dual TS-9 connector. The unlocked Nighthawk M1 is in Telstra version, and it could be widely used in Germany, Austria and Switzerland, you can also use the unlocked Nighthawk router in Asia and Middle East areas. If you would travel to USA, you’d better use the unlocked ATT Nighthawk M1. With the Nighthawk M1 router, a removable lithium-ion battery (Li-Ion), a charger with USB-C cable and installation instructions are included.

How to Connect to the Netgear M1 Nighthawk Mobile Router

This chapter is about how to connect to Netgear M1 Nighthawk Mobile router, covering the following topics:

  • Connect to the Mobile Router Network
  • Use the NETGEAR Mobile App to Access the Mobile Router
  • Use a Web Browser to Access the Router





Connect to the Mobile Router Network

You can connect your computers and mobile devices to the mobile router WiFi network. You can also connect a computer to the mobile router through a tethered connection using the USB cable that came in the package with the mobile router.

Note: If you set up your computer to use a static IP address, change the settings so that it uses Dynamic Host Configuration Protocol (DHCP).

WiFi Connection

You can find and select the WiFi network or you can connect to the router’s WiFi network with Wi-Fi Protected Setup (WPS). For information about using WPS, see Use WPS to Connect to the Mobile Router WiFi Network in the article How to Specify Netgear Nighthawk MR1100 Mobile Router Network Settings.

.

To find and connect to the WiFi network:

  1. Make sure that the mobile router is powered on (its LED is lit).
  2. Check to make sure that WiFi is enabled on your computer or mobile device and search for WiFi networks.

Refer to the following table or the manual for your WiFi-enabled device for further details on searching for WiFi networks.



Device Instructions


Windows computer

 Click the Internet Access icon, which is usually found on the bottom right side of your screen.
Mac computer Go to the WiFi menu and select Network.
Mobile devices Go to the Settings menu and tap the WiFi icon.
  1. Select the WiFi name displayed on your Nighthawk M1 screen.
  2. Enter the WiFi password exactly as shown on the Nighthawk M1 screen. The password is case-sensitive.

Your computer or mobile device connects to the WiFi network.

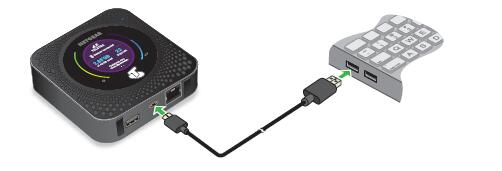

Tethered Connection

To connect the mobile router to the USB port on your computer:

Attach one end of the USB (type C) cable to the mobile router and plug the other end into the USB port on your computer.

Your computer automatically connects to the mobile router LAN (local area network). The first time you connect this way, your computer might display notifications about detecting a new device.

Note: If you want to use data offloading with a tethered connection, use WiFi offloading instead of Ethernet offloading. Tethered access is not supported during Ethernet offloading. For more information about offloading, see Offload Your Mobile Internet Connection in the article about Manage Netgear M1 Internet Connection.

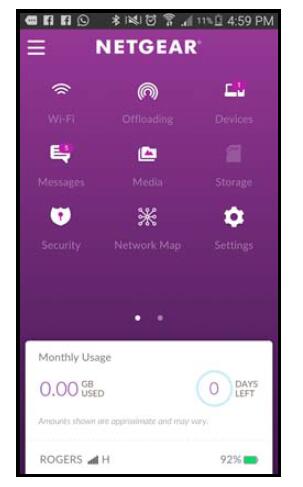

Use the NETGEAR Mobile App to Access the Mobile Router

You use the NETGEAR Mobile app to set up the mobile router. After initial setup, you can launch the app again and use it to log in to the mobile router to view or change its settings.

To log in to the mobile router from the NETGEAR Mobile app:

  1. On your smartphone, connect to the mobile router’s WiFi network.
  2. Launch the NETGEAR Mobile app.

You might be prompted to enter the admin password. During setup, you were prompted to change this password (the default password is admin).

  1. If prompted, enter the admin password.

The app displays the following information:

  • Notifications
  • Data usage as provided by your carrier
  • Your cellular and WiFi signals and battery
  • Current WiFi band (swipeable)
  • WiFi name and password
  • Connected devices.
  1. Swipe down.

The dashboard displays the icons shown in the following table.





Use a Web Browser to Access the Router

When you connect to the network (either with WiFi or with a tethered connection), you can use a web browser to access the router, to view and change its settings.

To log in to the router from a web browser:

  1. From a computer that is connected to your network, launch a web browser.
  2. Enter http://m.home or http://192.168.1.1. A login window opens.
  3. Enter the router user name and password.

The user name is admin. The user name and password are case-sensitive.

Netgear Nighthawk M1 LTE Cat16 Gigabit Mobile 4G Router

Netgear has confirmed the distribution of the Netgear Nighthawk M1(MR1100) in Europe from mid-2017. It is obvious that many European operators are not yet ready to deliver Gigabit on their networks, but as time goes, things are moving forward. Nevertheless, the Netgear M1 has many advantages for aggregated carrier networks that deliver high speeds for up to 1 Gbps download.

The Nighthawk M1 is world’s first 4G LTE router offering download data rate of up to 1 Gbps. It is equipped with the Qualcomm X16 LTE modem announced in 2016. The Netgear M1 implements several technologies, starting with the aggregation of 4 carriers, a technology of 4 x 4 MIMO, and QAM-256 modulation. Here now, the Netgear Nighthawk M1 is only available for Australian network provider Telstra. And the US network carrier AT&T also introduced this LTE advanced Pro mobile router, but we haven’t gotten the AT&T Nighthawk M1. Of course, this equipment will be distributed in other regions as soon as the operator networks are well prepared for Gigabit transmission.



Technical Specs

The Netgear MR1100 is rather well equipped (not to mention that the Gigabit LTE remains a theoretical flow). A 2.4 “LCD display is present on the top and gives all the connectivity and flow information. The device also presents:

* 2 x external antenna connectors (type TS-9)

* A type A USB port

* A USB type C port

* An Ethernet port

The Netgear Nighthawk M1 provides the possibility to connect via Ethernet port, which means it can redistribute the link to devices with wired link. It remains completely mobile and equipped with a battery of 5000 mAh for mobile use, which could keep working for connection up to 24 hours. The battery can charge other mobile devices such as a smartphone if necessary as a backup. And this battery is removable, which allows to replace it and therefore spare battery can be charged in advance for travel.



Regarding the WLAN feature, Nighthawk M1 offers WiFi 802.11ac with dual-Band 2.4GHz / 5GHz. And the M1 can support up to 20 connected clients simultaneously. It also has a Micro SD card slot for storing and sharing media. It can be seen that connectivity is powerful in this router, which can connect many devices such as a NAS, printers, USB devices..



On the network side, the M1 offers a LTE-A link of category 16 using an aggregation of 4 carriers (4X4 MIMO) for a theoretical maximum throughput of 1 Gbps download and 150 Mbps upload.

Netgear Nighthawk M1 supported frequency bands (for Australian carrier Telstra):

* 4G FDD-LTE Band 1/3/7/8/28: 700/900/1800/2100/2600 MHz
* 3G Band:  850/900/1900/2100 MHz

The Telstra version Nighthawk M1 could work well in Europe areas.

Supported frequency bands for US carrier AT&T:

* 4G LTE Band 1/2/3/4/5/7/12/29/30/66

* 3G Band: 850/AWS/1900/2100MHz



The dimensions of the M1 are 105.5 × 105.5 x 20.35 mm for a weight of 240 grams.

Summary



This 4G LTE advanced router is very well equipped, offers the latest technology and has a really rich connectivity. Both for fixed use in an underserved area at high speeds and for mobile use in all situations, the Netgear Nighthawk M1 seems to the best mobile 4G router now in the market. We can’t wait to test it fully.



The price of Unlocked Netgear Nighthawk M1 available on www.4gltemall.com, if you want a powerful mobile router which could travel all over the world, it’s no doubt that the Nighthawk M1 is the right one.

Netgear Nighthawk M1 MR1100 Gigabit 4G Hotspot Review

Since the end of February 2018, this Nighthawk M1 MR1100 mobile LTE hotspot is available in Europe, which impresses above all by its sheer performance. The new Gigabit LTE mobile router is available in an extremely compact body. A colored LED display indicates important network information and the built-in battery has a generous capacity of 5,040 mAh. Dual-band WLAN with MIMO and USB Type C are further highlights, with an RJ45 Ethernet port.

Features and characteristics of Nighthawk M1 MR1100
Manufacturer and model number Netgear Nighthawk M1 MR1100
Chipset: Qualcomm MDM9x50
LTE Category: Cat. 16
Download rate 1,000 Mbps
Upload rate 150 Mbps
Supported LTE bands: 700/800/900/1800/2100/2300/2500/2600 MHz
Backwards compatible with: HSPA+, UMTS
Support for LTE-Advanced Yes
MIMO Support: Yes
Connection for external antenna: Yes, Two TS-9 Connectors(Buy Netgear nighthawk m1 antenna)
Network | LAN & WLAN
LAN ports: 1
WLAN standards: 802.11 a/b/g/n/ac
5 GHz WLAN support: Yes
Encryption: SIM Security
WLAN hotspot function: Yes
Others
Battery pack: 5,040 mAh
Dimension: 105.5 x 105.5 x 20.35 mm
USB: 1x USB Type A 2.0, 1x USB Type C
Memory card expansion: yes, micro SD
release: 1:02:18
Price: It depends
Available at: »at 4gltemall.com
Information material
Installation Guide: » Download here (PDF, 0,5 MB, english)
Detailed manual: » Download manual here (PDF, 4,3 MB, english)





Nighthawk M1 – the Best Gigabit LTE hotspot with Ethernet Port

In January 2017, the Californian network expert Netgear presented its mobile LTE hotspot Nighthawk M1 at CES. The Australian network provider Telstra introduced the Nighthawk M1 to its plan. And around the end of 2017, US network provider AT&T also used the Netgear Nighthawk M1. Unfortunately, it took more than a year before the product actually landed in Europe. The wait was worth it, however, because faster 4G Internet in such a tiny terminal did not exist so far. According to the LTE category 16, up to 1 Gbit/s in the download and a maximum of 150 Mbit/s in the upload are possible. This is made possible by the modem MDM9x50 from the semiconductor manufacturer Qualcomm. With 240 grams and the approximately 10 cm wide surface fits the mini router in every pocket. Thus, you can conveniently provide yourself, friends and relatives with fast-paced Internet on the go.



Nighthawk M1 – Advanced LTE Technology Adopted

Aside from the sheer data transfer rate, the Nighthawk M1 LTE hotspot comes with other well-thought-out features. For example, thanks to 4-band carrier aggregation and 4 × 4 MIMO, optimum reception is ensured. The Netgear M1 is compatible with all LTE frequencies supported in this Europe, including the important Band 20 (800 MHz).

If the 4G Internet is not available, the Nighthawk M1 MR110 would turn to 3G network automatically. The router uses 3G bands on 850, 900, 1900 and 2100 MHz frequencies. The fastest bandwidth and the best signal, however, cannot be reached if the 4G Internet cannot be forwarded to connected devices accordingly. That’s why Netgear built a high-performance WLAN module in the Nighthawk M1 MR1100. Dual-band 2.4 GHz and 5 GHz (802.11 ac) ensure that the wireless network does not become a bottleneck. Alternatively, a PC or notebook can be connected via a LAN socket. The SIM Security function provides the necessary security, and the small box can also be managed remotely via a smartphone app.



Further highlights of the Nighthawk M1

The microSD memory card slot can be used to transfer photos and videos to all devices connected to the Wi-Fi network. There are features for using the Netgear Nighthawk M1 MR1100 as a media server or NAS. The 5040 mAh battery is charged via USB Type C, the interface used by most recent smartphones. The larget battery can charge other devices if necessary.

The rechargeable battery can be replaced. If the battery has a defect, it is not necessary to send the complete LTE hotspot back. Particularly practical is the large, colored display on the top of the M1. This display shows important information such as the number of connected devices, the monthly data consumption or the current network operator. In addition, the signal strength and the battery level can be read.



Here now, the competitor Huawei presents its new LTE gigabit hotspot Huawei E5788. If you want to know more about Huawei E5788, welcome to check on www.4gltemall.com .

Netgear Nighthawk M1 LTE Cat.16 Mobile Router

Netgear has confirmed the distribution of Nighthawk M1 in Europe from mid 2017. It is obvious that many European operators will not be ready to deliver Gigabit on their networks, but as stated above, things are progressing.

Nevertheless, the Netgear M1 has many advantages and can, in the meantime, work on aggregated networks of carriers that deliver high speeds, pending the 1 Gbps.



Netgear Nighthawk M1 MR1100 4GX Gigabit LTE Mobile Router

The Netgear M1 implements several technologies, starting with the aggregation of 4 carriers, a 4X4 MIMO technology, and a QAM-256 modulation. Here now, this Nighthawk M1 router will only be used on the 4G LTE network of the Australian operator TELSTRA, which has an operational network for this technology. Moreover, the development and testing of the product were carried out by TELSTRA in association with ERICSSON and NETGEAR. Of course, this equipment will be distributed in other regions as soon as the operator networks are able to implement this type of transmission.

Netgear Nighthawk M1 MR1100 4GX Gigabit LTE Mobile Router

Technical features and specifications



The Netgear Nighthawk M1 is rather well equipped, notwithstanding these networks performance (not to mention that the Gigabit LTE remains a theoretical throughput), the device presents:

* 2 external antenna connectors (type TS-9, Buy Netgear Nighthawk M1 external antenna)

* A USB Type A port

* A USB Type C port

* An Ethernet port



Netgear Nighthawk M1 MR1100 4GX Gigabit LTE Mobile Router

If a fixed broadband brings an Internet connection in the houses, which can’t provide network support outdoor, The Netgear M1 Nighthawk will not make you disappointed because it’s equipped with a battery of 5000 mAh offering continuous working time up to 24 hours. You can take the Netgear M1 for outdoor activities or business travel. The battery can work like a mobile power bank as an emergency backup to a mobile device such as a smartphone if necessary. It should be noted that this battery is removable, which makes it possible to replace it and therefore to dispose of a charged one beforehand for the displacements.



It offers a WiFi 802.11ac standard on dual-Band 2.4GHz/5GHz. The Nighthawk M1 can support up to 20 simultaneously connected clients. It also has a Micro SD card slot, for storing and sharing media. Finally, its Ethernet port offers the possibility to connect it to equipment such as switches for example, to redistribute the link to peripherals with wired link. This features are very similar to the latest Huawei Mobile WiFi Pro 2 E5885.



Netgear Nighthawk M1 MR1100 4GX Gigabit LTE Mobile Router

As you can see, connectivity is important for this router, which can accommodate many devices such as NAS, printers, USB devices. A 2.4 “LCD display is present on the top and gives all the connectivity and bit rate information.



On the network side, therefore, the Netgear M1 proposes a LTE-A link of category 16 using an aggregation of 4 carriers (4X4 MIMO) for a theoretical maximum rate of 1Gbps in download and 150 Mbps in upload.

Below are the supported frequency bands (at least for this Australian Telstra version):

* 4G/LTE: 700/900/1800/2100/2600 MHz
* 3G UMTS/WCDMA:  850/900/1900/2100 MHz

Netgear Nighthawk M1 MR1100 4GX Gigabit LTE Mobile Router

The covered frequency bands make it use in almost all the areas over the world. But user have to unlock the Netgear M1 and then travel to other countries or areas. The dimensions of the M1 Nighthawk are 105,5 × 105,5 x 20,35 mm with a weight of 240 grams.



Summary

This high performance 4G router is very well equipped, and offers the latest technology and has a really rich connectivity. With the functions of a fixed use for an underserved area in high flow rates, or for mobile use in any desired situation, the Netgear Nighthawk M1 seems to be the perfect 4G routers and we look forward to testing it fully.
