Netgear Aircard 800s vs Aircard 810S

As a popular series of LTE gadgets, Netgear 4G aircards are well-known many countries in Europe and the United States. Especially the hot Netgear Aircard 810s mobile hotspot, is the best seller for LTE advanced networks. Recently, Netgear provided a new 4G LTE mobile router Aircard 800s for Australian network provider Optus and Optus named it as Optus WiFi modem 800s. If this article, we will review the difference between the two mobile hotspots and see which one is better.

Netgear AC810S VS 800S Appearance and Interfaces

The Netgear AC810 has a 2.4 inch touchscreen on the front with two buttons for option: home and back. We have Aircard 810 in the version of Telstra WI-FI 4GX Advanced III.  But it’s already unlocked for global use. The Telstra Aircard 810 has the logo on the top side of the front. On the back, the Netgear logo is on the back cover, which could be removed to insert SIM card and battery. The Aircard 800s has similar features, on the front, there is a 2.4 inch touchscreen and Optus logo. Two buttons (home and back buttons) are available at the side of the screen. The Netgear logo is on the back cover, which could also be removed for changing SIM card or battery. And they both have two connectors for an external antenna. And the connector type is TS-9. They both use Micro SIM card to get WLAN network for internet access.



The Netgear Aircard 810s is available for Telstra in black color and Optus 4G WiFi modem is in white color.

Netgear Aircard 800s vs Aircard 810s Specifications and features

From the appearance, we can see the color difference, but can’t get other difference. It seems they are made by the same model. Let’s looks at the Specifications of Aircard 810s and 800s and see what the real difference is for buyers and users.



Model Netgear Aircard 810s Netgear Aircard 800S
Product type LTE Mobile Hotspot LTE Mobile Hotspot
Category LTE Cat.11 LTE Cat.9
Chipset Qualcomm Snapdragon X12 Qualcomm MDM9240
Data rates DL 600Mbps/UL 100Mbps DL 450Mbps/UL 50Mbps
Supported 4G LTE frequency bands B1, B3, B7, B8, B28 B1, B3, B7, B28, B40
WLAN 802.11a/b/g/n/ac, dual-band 2.4GHz & 5GHz 802.11a/b/g/n/ac, dual-band 2.4GHz & 5GHz
Max support users 15 users 15 users
MIMO 2 x 2 MIMO 2 x 2 MIMO
Connector for external antenna Two, TS-9 jacks Two, TS-9 jacks
Buy Antenna Aircard 810s External Antenna Aircard 800s External Antenna
App management Netgear Aircard APP Netgear Aircard APP
SIM type Micro SIM Micro SIM
Battery 2930 mAh 2930 mAh
Dimensions 112 x 68.6 x 15.45mm 110 x 68 x 16.1 mm
Ethernet Port No No
Datasheet download Netgear AC810S Datasheet Netgear AC800S Datasheet
User Manual Telstra 4GX Advanced III Manual Optus 4G modem 800S Manual
Other features 3 band CA 3 band CA
Reviews Netgear Aircard 810s review Netgear Aircard 800s review
Price 229.00USD 199.00USD

Aircard 800s vs 810S Conclusion

From table for the Aircard 810s specs and Aircard 800s specs, the Netgear 810s is more advanced with Qualcomm Snapdragon X12 chipset which can achieve download speed up to 600Mbps. Netgear Aircard 800s is also good to mention with Qualcomm MDM9240 chipset which could support download speed to 450mbps. They support same LTE frequency band B1, B3, B7, B28, but Aircard 810s supports band 8 while Aircard 800s supports band 40, which means the Aircard 810s can’t support TDD-LTE network. Other features of the two Netgear 4G mobile hotspots are same as described. Since the Netgear AC810S is more advanced, the price is a little bit higher than that of Aircard 800s. If you would buy a Netgear 4G Router between the two models, first, you need check whether the Aircard 810s or 800s would be compatible with your network provider’s network, and then you need to consider the price. The real performance of the two hotspots 4G has no much obvious difference.



Netgear Aircard 810s VS Aircard 815s

Looking at the current available 4G LTE Mobile Hotspot, Netgear seems lead the LTE Advanced terminals. If you had known Huawei E5786 mobile WiFi, you may think this is the fastest 4G pocket router. However, if you know the two 4G mobile routers which we would introduce today, you may have a new view for the mobile terminals.

netgear-aircard-815s

Since LTE Cat3 and Cat4 are becoming the mainstream for carriers, LTE-advanced would of course be available in near future. Here we can see some carriers are stepping fast. The carrier AT&T in USA and Telstra in Australia had presented the LTE Advanced networks for commercial use. The aforementioned Huawei E5786 is a LTE cat6 mobile router, which is already available for many network providers. AT&T and Telstra already used the LTE Cat9 and Cat11 terminals, which mean the LTE Cat9 and Cat11 technologies are available for the two carriers.

netgear_aircard_810s_mobile_hotspot

AT&T introduced Netgear Aircard 815s and had a new name “AT&T Unite Explore” while Telstra introduced Netgear Aircard 810s and has a new name of “Telstra WiFi 4GX Advanced III”. The two 4G mobile hotspots very similar in the name but feature differently. Today, we will have what’s the difference between them.



Aircard 810s vs 815S Appearance

The Netgear Aircard 810s follows the design of the predecessor Aircard 790s, which is a same level mobile router to Huawei E5786 supporting LTE Cat6. The body of Aircard 810s is made of plastic but feels good. With a 2.4 inch LCD screen, user can read the connection status and setup the routers on the screen.

netgear-aircard-815s-appearance-features

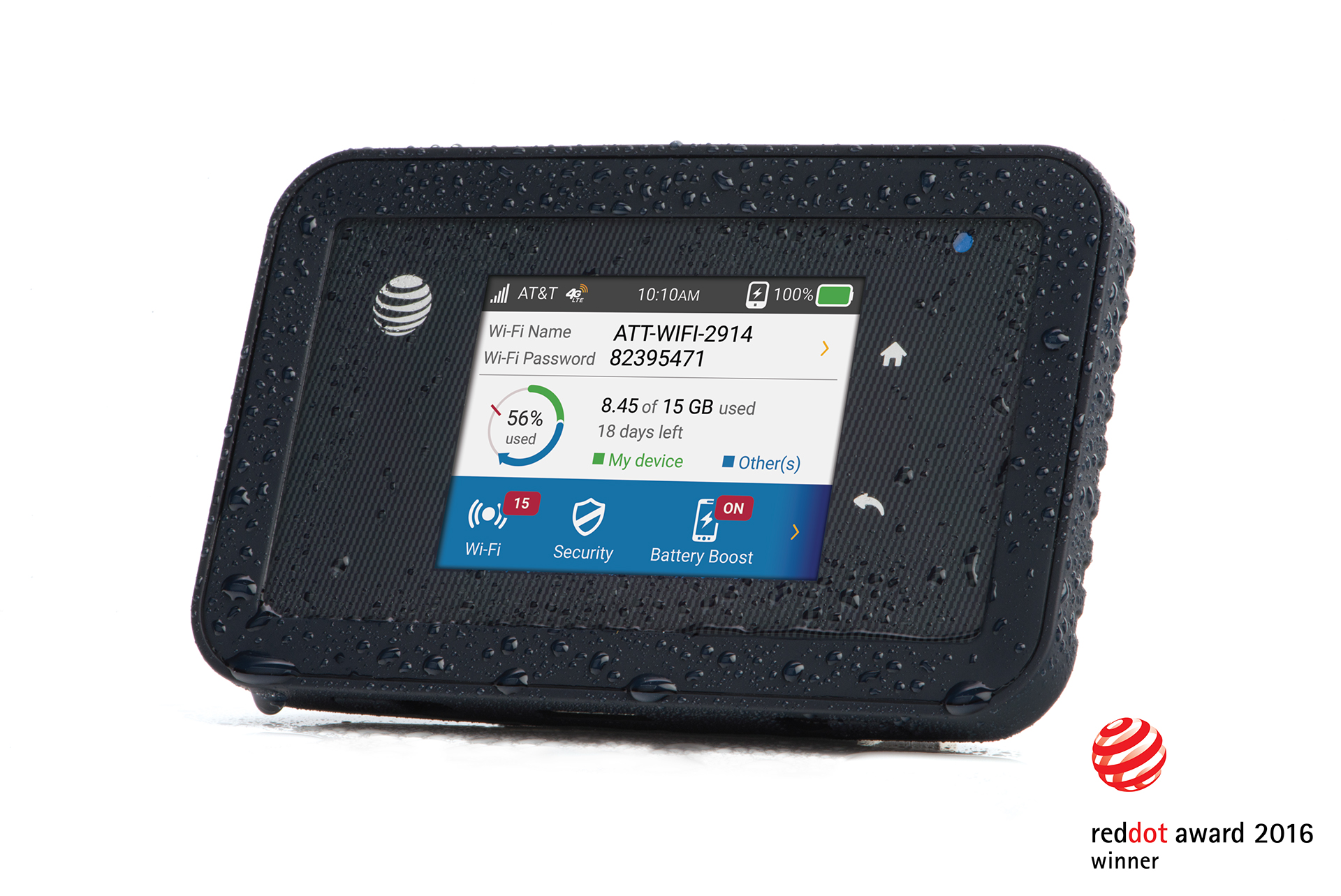

The Netgear Aircard 815s also has a 2.4inch QVGA capacitive touchscreen like Aircard 810s. So the screen has same functions to Netgear AC810S for settings. There special feature of Aircard 815s which should mention is the rugged design that is dustproof, shock and water-resistant. This feature allows users to take the Aircard 815s not only for common outdoor activities, but also in severse weather, especially for the wilderness exploration. They both have two connectors for external antenna and socket type is TS-9. Between the two connectors, there is a USB 3.0 port.

netgear-aircard-810s-vs-ac815s-antenna-connector



Netgear AC810S VS AC815S Technical Specifications



Below the blank shows the details specifications of the two routers:

Model Netgear Aircard 810s AT&T Unite Explore 815S
Product type LTE Mobile Hotspot LTE Mobile Hotspot
Category LTE Cat.11 LTE Cat.9
Chipset Qualcomm Snapdragon X12 Qualcomm MDM9240
Data rates DL 600Mbps/UL 100Mbps DL 450Mbps/UL 100Mbps
Supported 4G LTE frequency bands B1, B3, B7, B8, B28 B1, B2, B3, B4, B5, B7, B12, B17, B29, B30
WLAN 802.11a/b/g/n/ac, dual-band 2.4GHz & 5GHz 802.11a/b/g/n/ac, dual-band 2.4GHz & 5GHz
Max support users 15 users 15 users
MIMO 2 x 2 MIMO 2 x 2 MIMO
Connector for external antenna Two, TS-9 jacks Two, TS-9 jacks
Buy Antenna Aircard 810s External Antenna AT&T Unite Explore External Antenna
App management Netgear Aircard APP Netgear Aircard APP
SIM type Micro SIM Micro SIM
Battery Removable, 2930 mAh Removable, 4340 mAh
Dimensions 112 x 68.6 x 15.45mm 112 x 68.6 x 15.45mm
Ethernet Port No No
Datasheet download Netgear AC810S Datasheet AT&T Unite Explore 815s Datasheet
User Manual Telstra 4GX Advanced III Manual AT&T Unite Explore Manual
Other features 3 band CA 3 band CA
Firmware download Aircard 810s Firmware ATT Unite Explore Firmware
Drivers Aircard 810s driver ATT Unite Explore drivers
Reviews Netgear Aircard 810s review AT&T unite explore review
Price 249.00USD 349.00USD







Netgear Aircard 810s vs 815S Performance



Actually, we had not tested the two units at same network environment in practice. But we will do that respectively in near future and will provide full test report for the two mobile hotspots. We hope the report would be a good reference for the potential users who need the 4G mobile routers.

There is one function that we have to mention: The Aircard 815s and 810s can both work like a mobile power bank, which is called Battery Boost, they can charge other electronics such as smartphones and tablets. This function is practical and useful in most cases.

netgear-aircard-815s-battery-boost-charging

From the appearance and specifications, we can see the two mobile routers (Aircard 815s and 810s) are with the latest technology and dominate the wireless terminals. Netgear Aircard 810s supports higher level network technology and it should be the fastest 4G mobile router. Of course, the price is also not cheap for the Aircard 810s, so as Aircard 815s. But if you would like a budget mobile pocket 4G router, the Netgear Aircard 790s may be a good option for you.
